Ultra HD 4K+ Sensor
A 4056×3040 sensor delivering roughly 33% more resolution than the previous generation for crisp imaging at distance.
Day/Night Digital · 5th-Gen Binocular
DNBN-5
SKU · DGBNBN5LRF

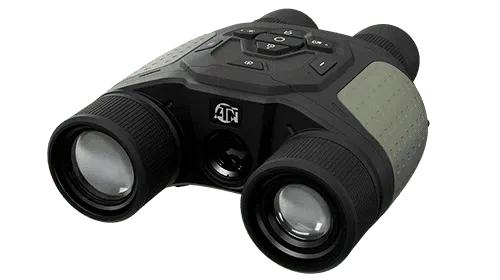

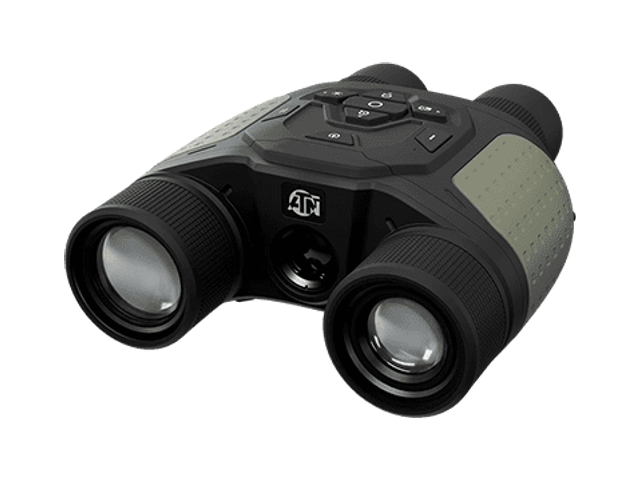

The latest-generation day/night digital binocular on an Ultra HD 4K+ sensor — around 33% sharper than the prior generation — with a built-in laser rangefinder, 4K/240 FPS recording, dual-stream video, and BIX ballistic-data exchange between ATN devices.

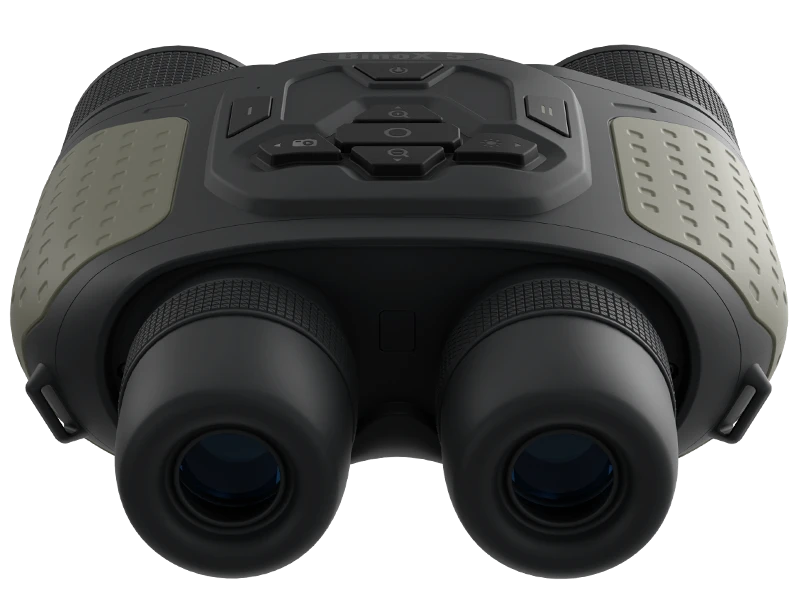

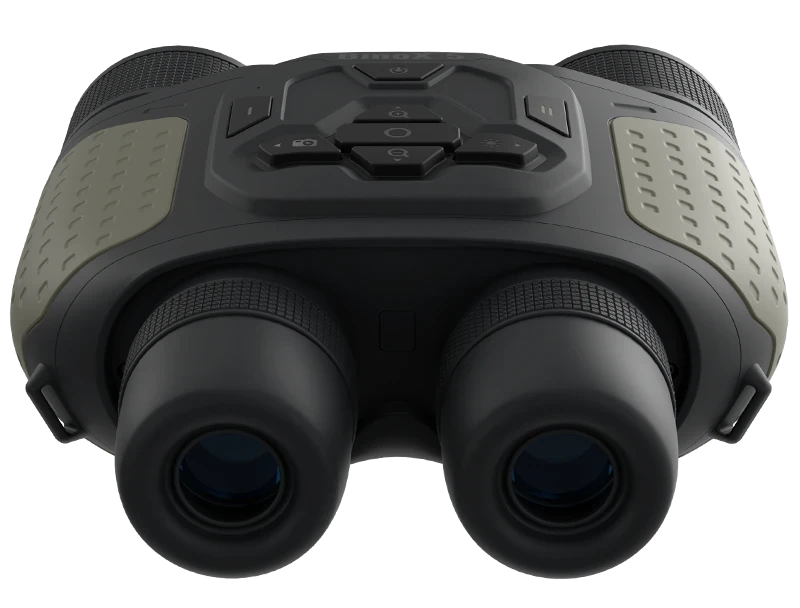

Key Advantage
An industry-leading Ultra HD 4K+ sensor with built-in laser ranging and BIX — observe, range, record, and pass a firing solution to other ATN devices from one binocular, day or night.
Highlights
Core specs and the features that set the DNBN-5 apart.
- 4056×3040 4K+
- 5–25× zoom
- FOV 5°
- LRF 5–1000 m
- 4K · 240 FPS
- WiFi · Bluetooth

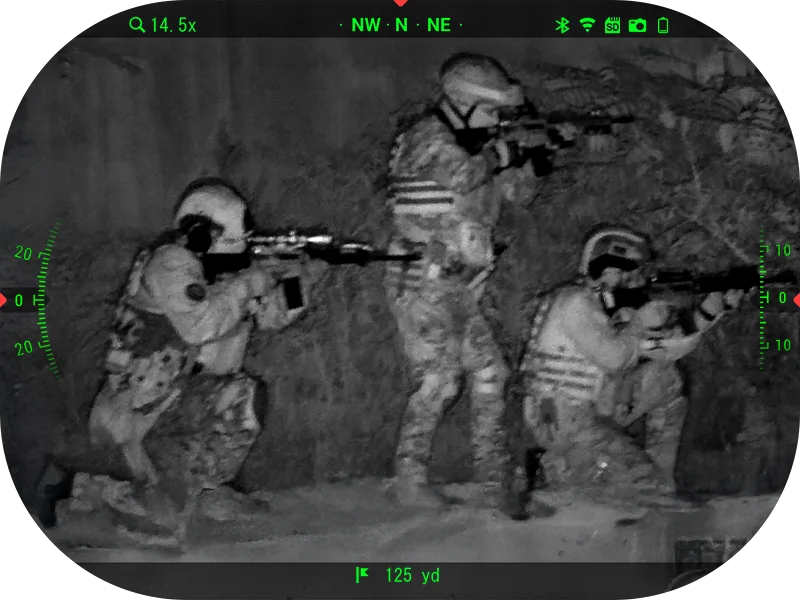

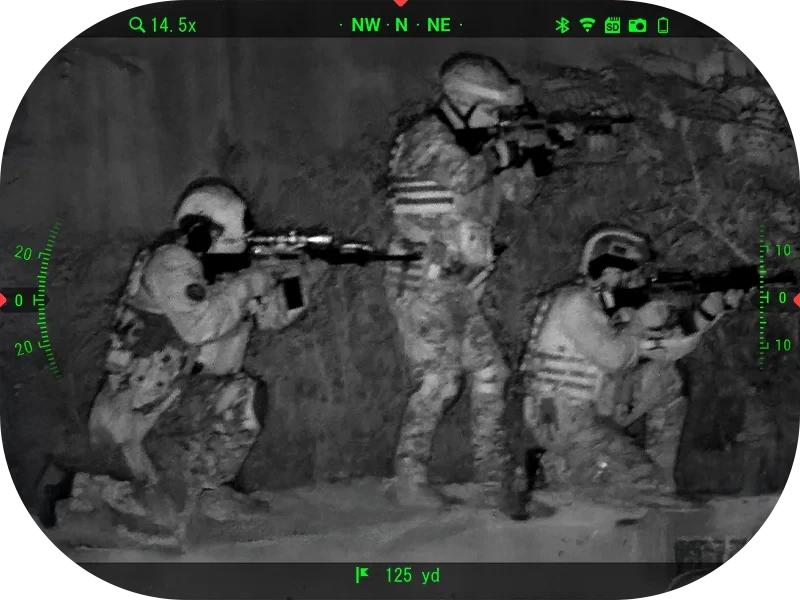

Enhanced Night Vision
Upgraded high-performance sensor extends visibility and holds detail over long distances in the dark.

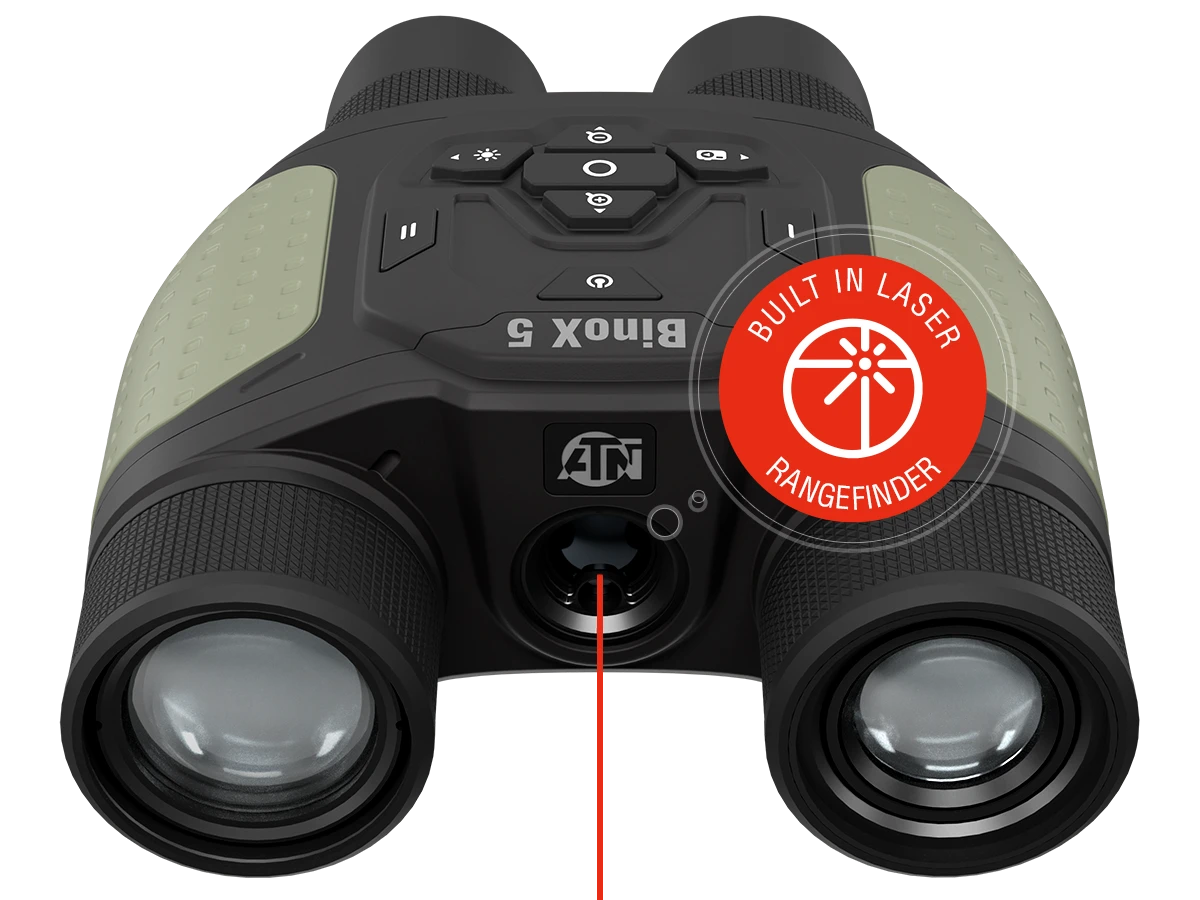

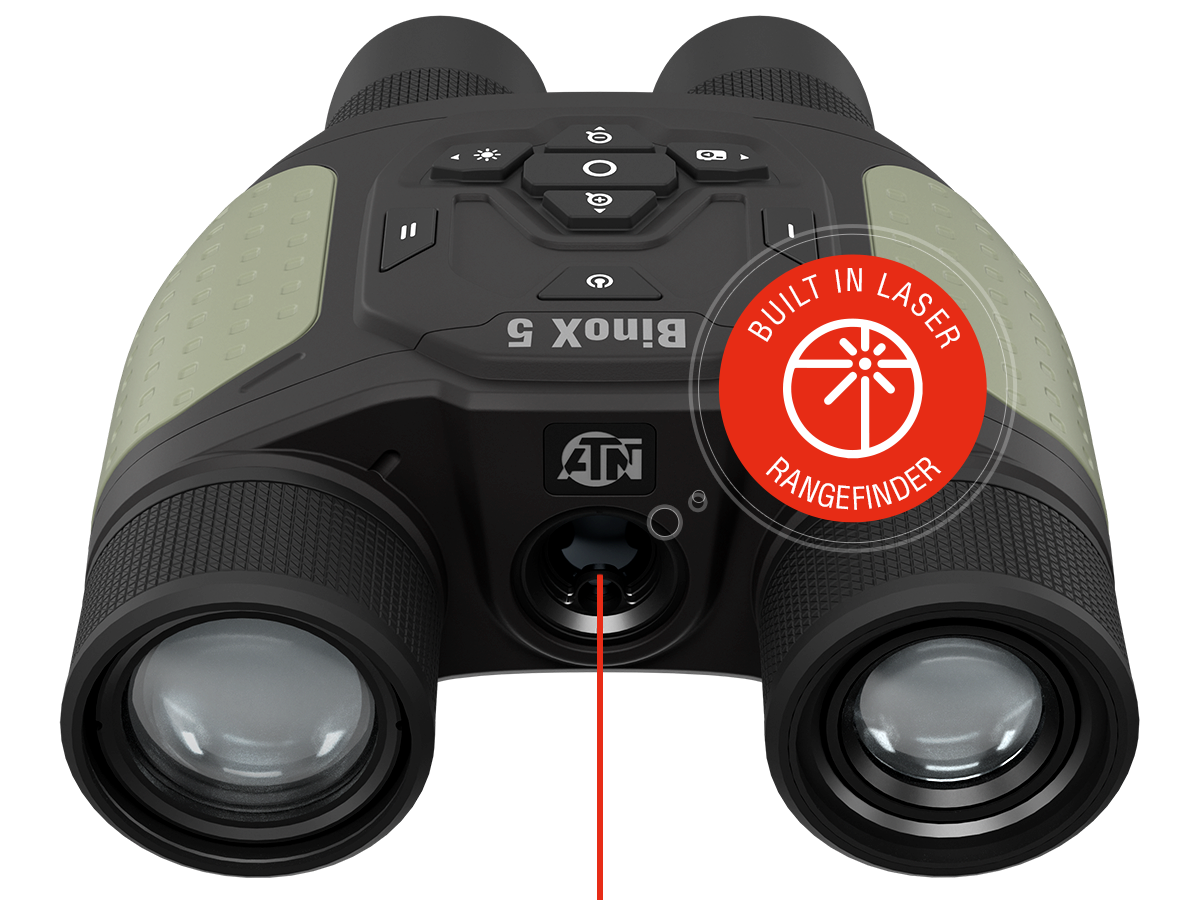

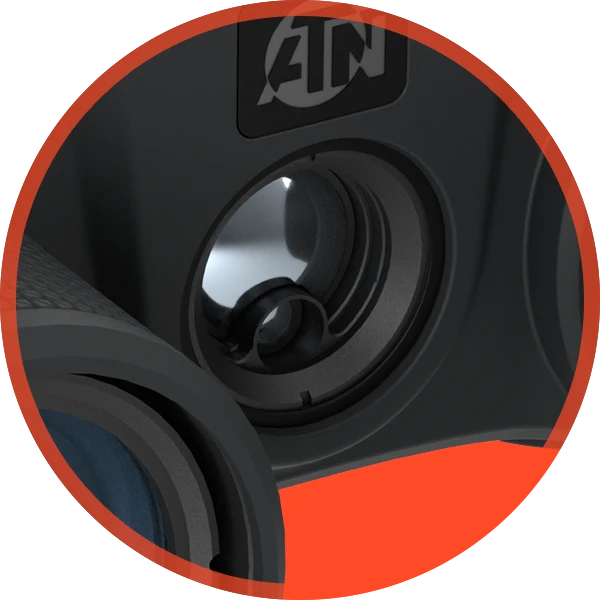

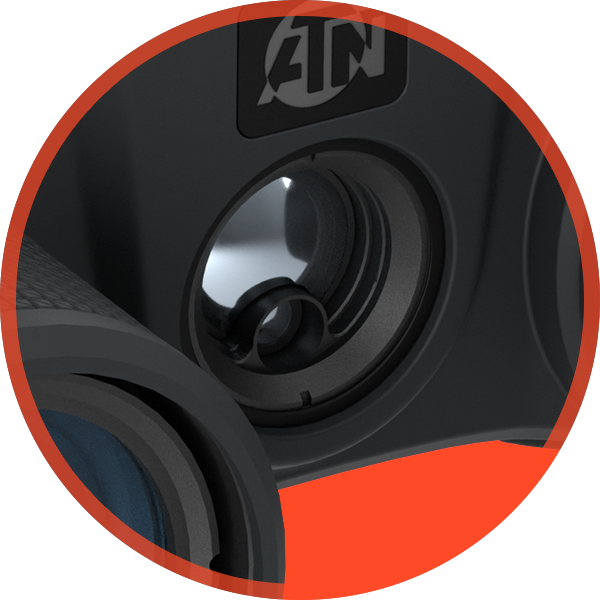

Laser Rangefinder
Built-in LRF ranges 5–1000 m to ±1 m, day or night, with one-click operation.

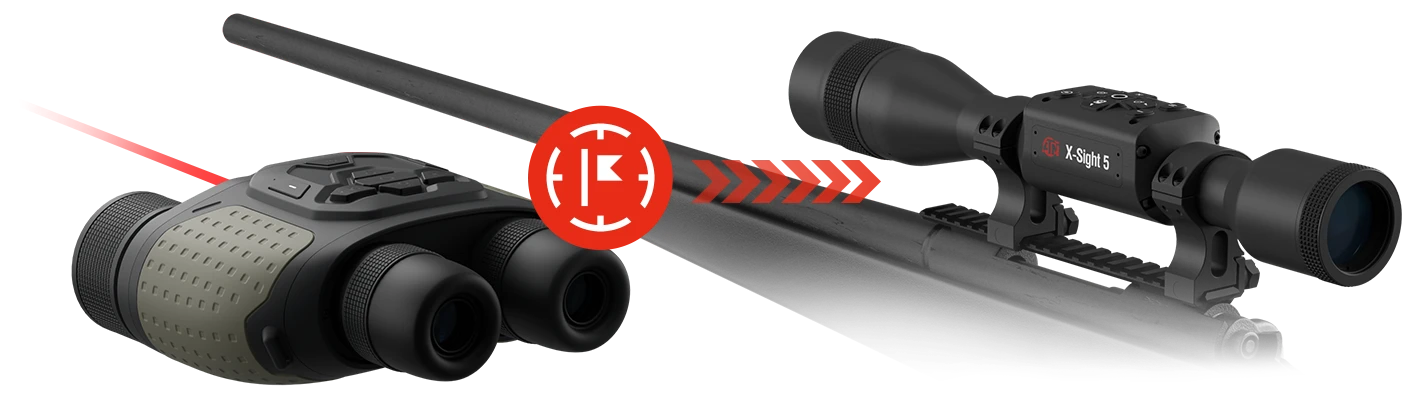

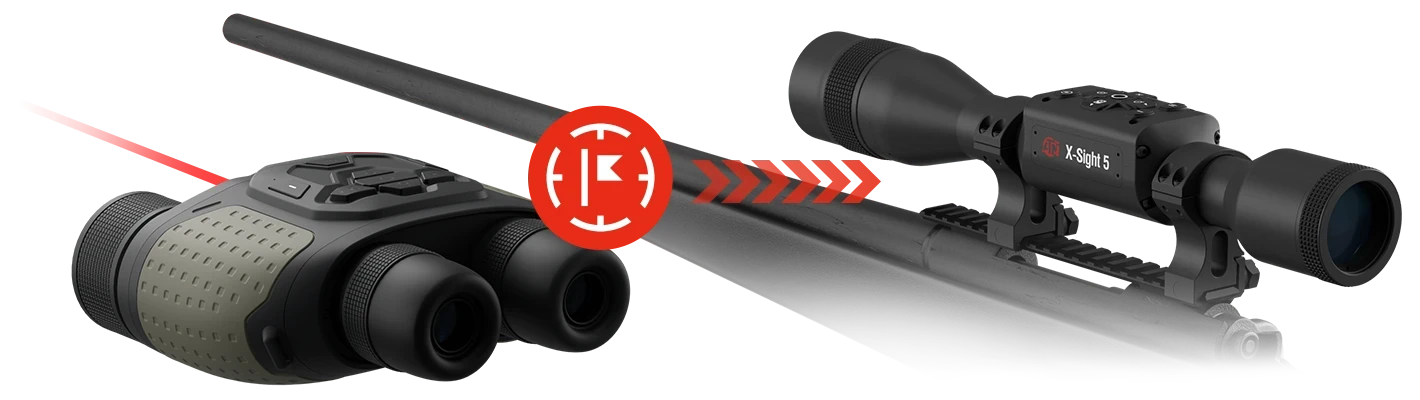

BIX Ballistic Exchange
Shares ranging and ballistic data with other ATN devices for an integrated firing solution — no extra apps.
4K+4056×3040 Sensor
5–25×Magnification
5–1000 mLaser Rangefinder
240 FPSSlow-Motion 4K
Recording & Connectivity
A Quad Core processor turns the DNBN-5 into a full capture-and-share device.
4K @ 240 FPS
Record in Ultra HD 4K with 240 FPS for slow-motion review of every detail.
Dual-Stream Quad Core
Live-stream to a phone and record internally at once — no lag or loss of performance.

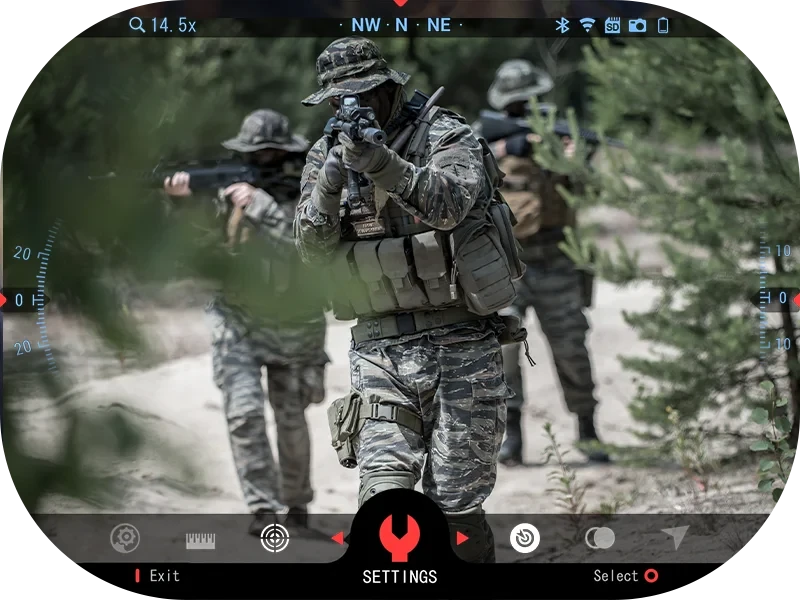

Image Stabilization
Electronic image stabilization keeps the picture steady at high magnification.

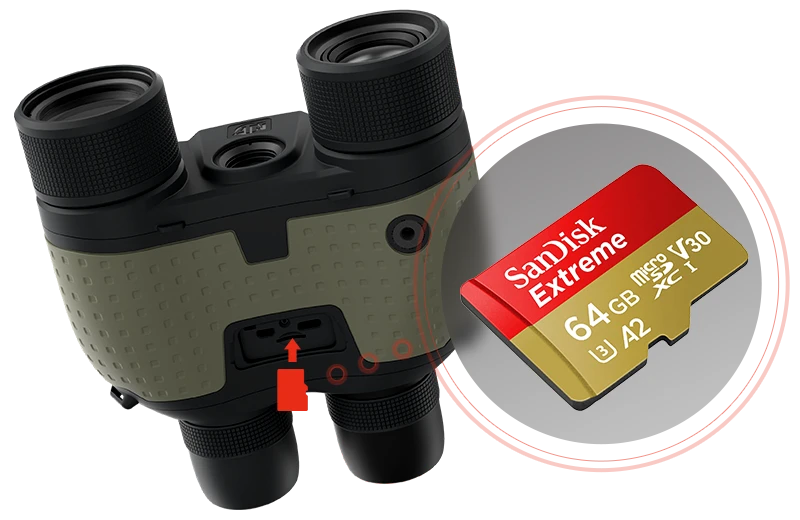

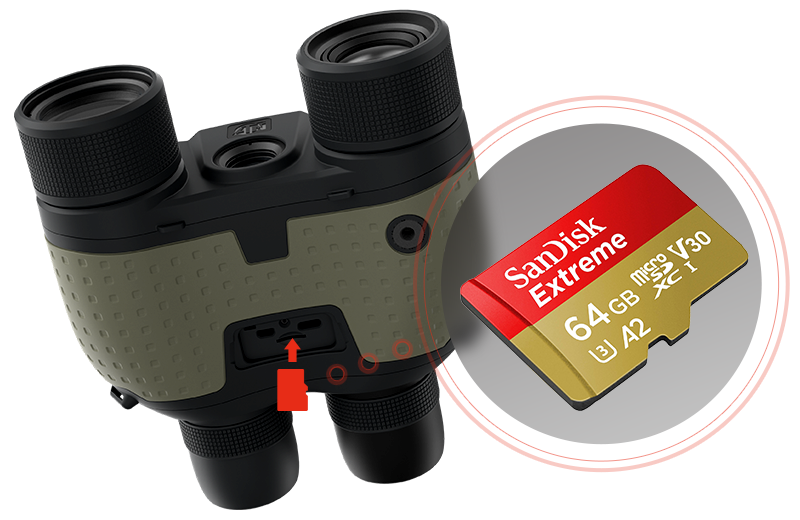

Onboard Recording
Insert a microSD card (up to 64 GB, V30) — no cables or extra devices needed.
WiFi + Bluetooth
Stream, control and share over WiFi and Bluetooth — iOS & Android.
Smart Sensors
3D accelerometer, gyroscope, magnetometer and e-compass on board.
Full Specifications
Complete technical data, smart features, and connectivity.
| Model | DGBNBN5LRF |
|---|---|
| Sensor | ATN 4K · 4056×3040 · 30/60/120 FPS |
| Magnification | 5–25× |
| Field of view | 5° · 87.5 yd @ 1000 yd |
| Display | 1280×960 |
| Laser rangefinder | Yes · 5–1000 m · ±1 m |

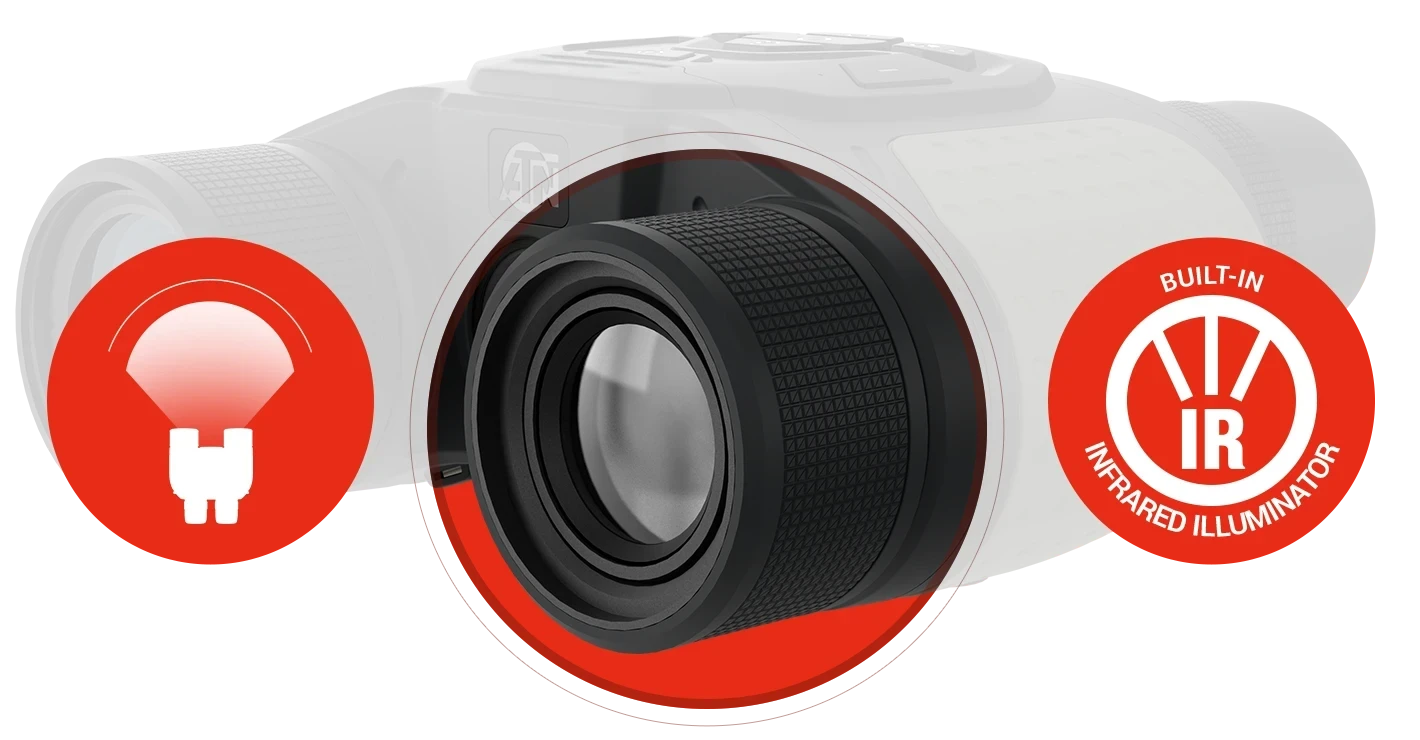

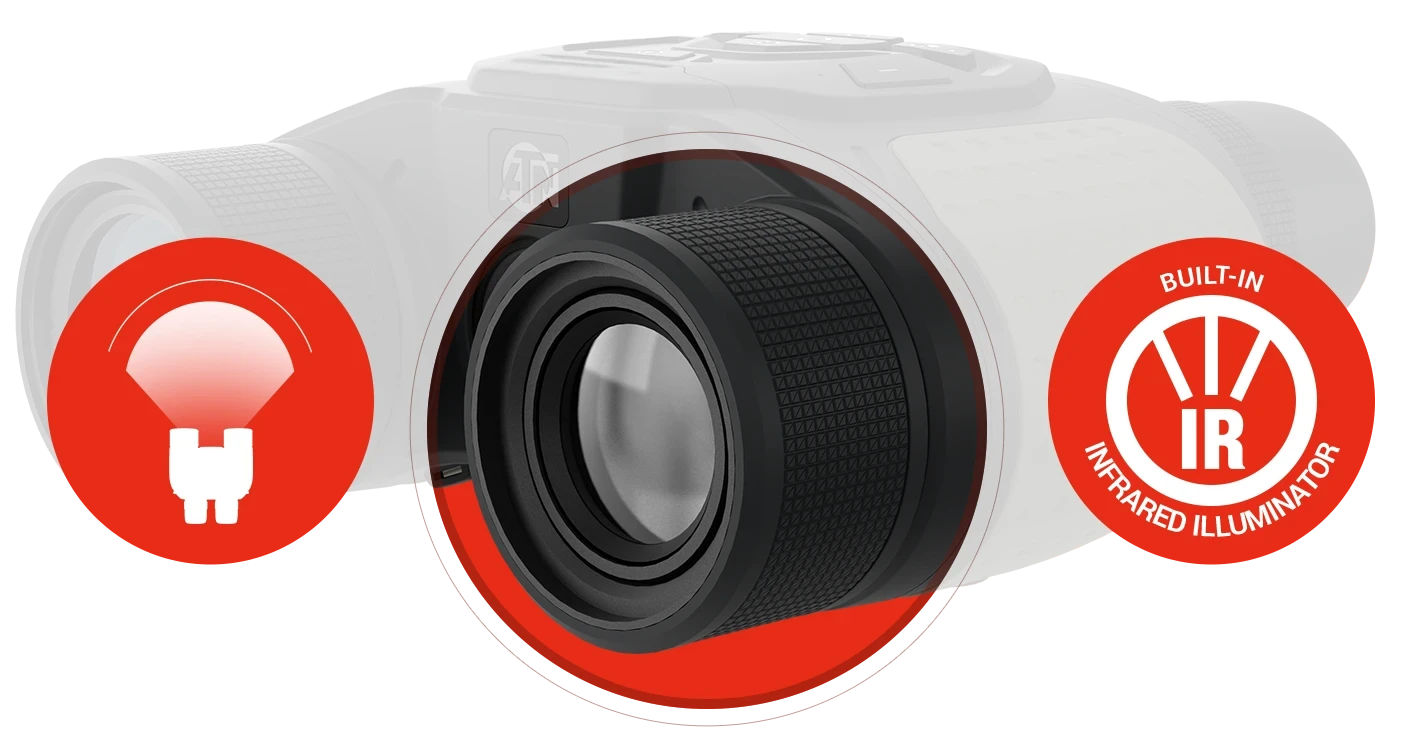

| IR illuminator | Built-in |
| Interpupillary adj. | 60–70 mm |
| Eye relief | 10–30 mm |
| Focus range | 10 ft – ∞ |
| Video record | Up to 4K UHD · 30/60/120 fps |
| Stabilization | Electronic (EIS) |
| Storage | microSD 4–64 GB (V30) |
| Battery life | Up to 12 h (Li-ion) |
| Operating temp. | −28 … +48 °C |

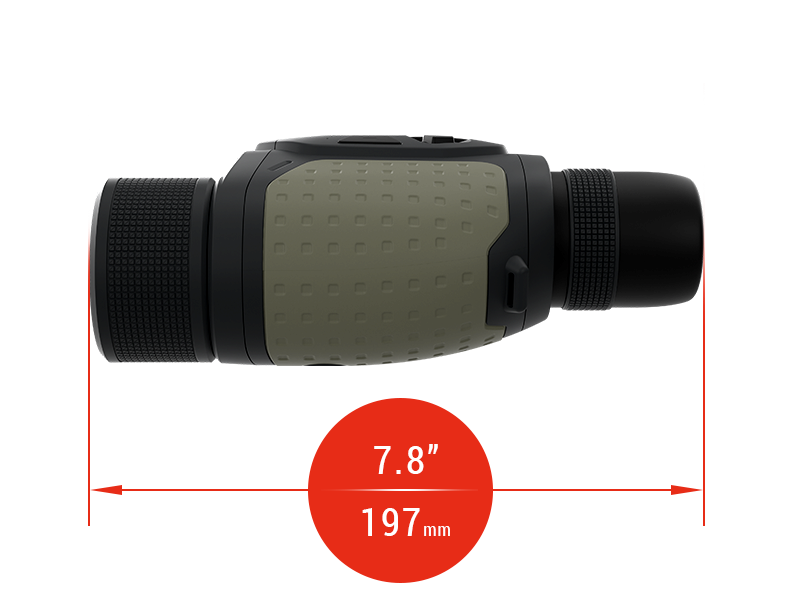

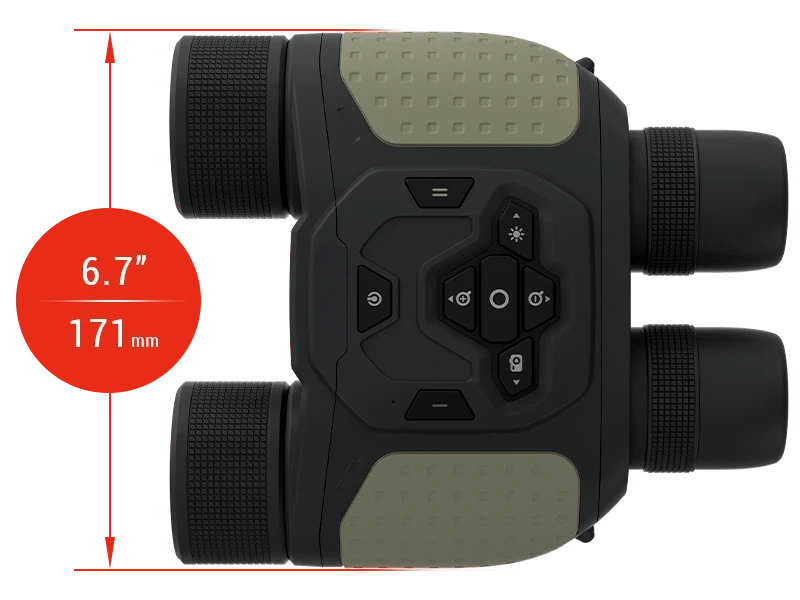

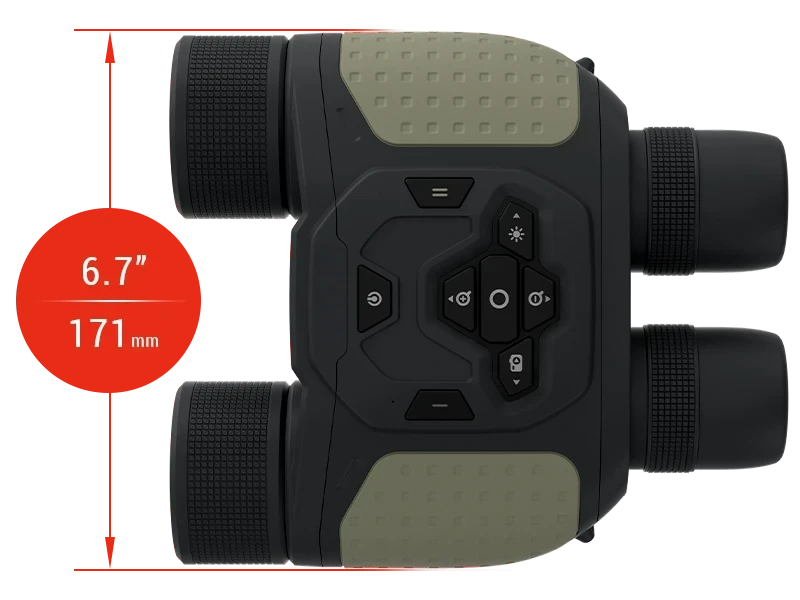

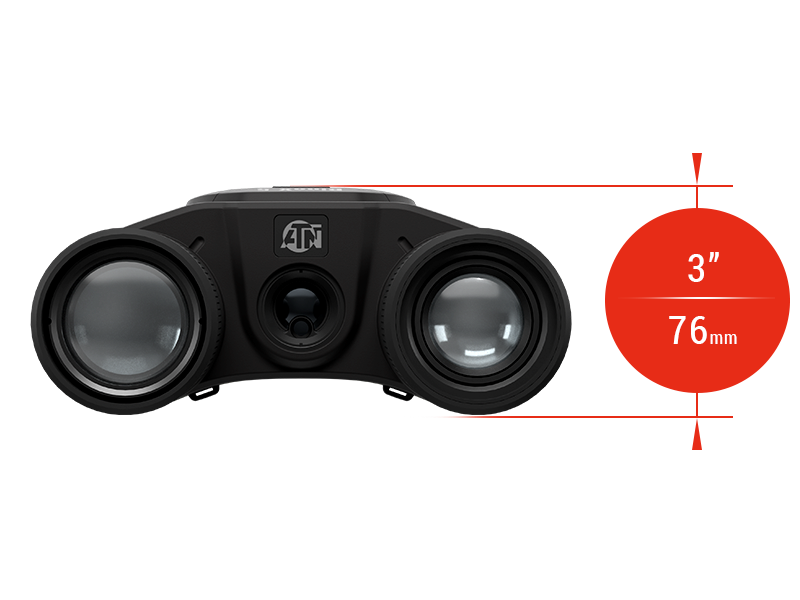

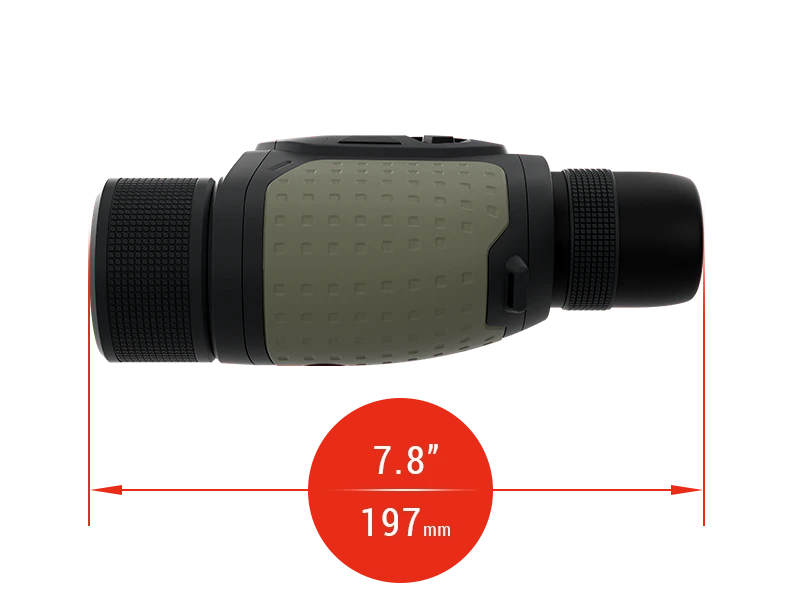

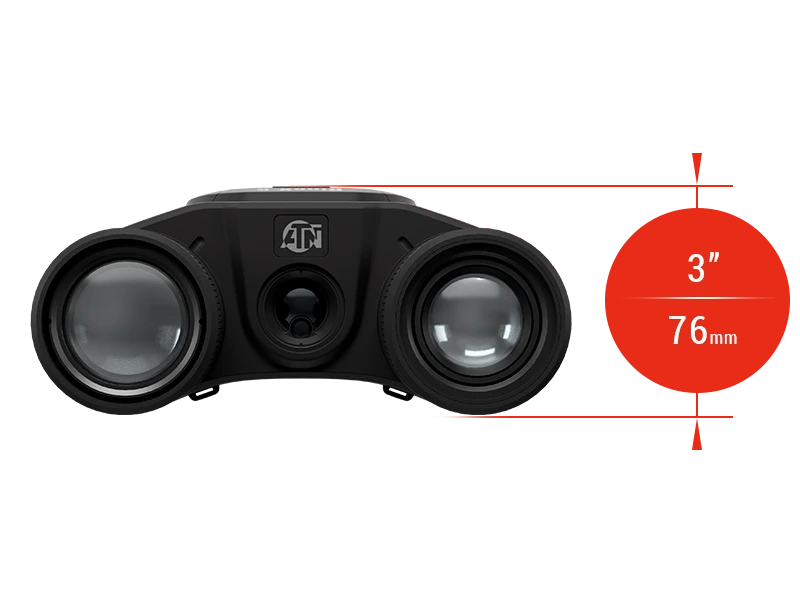

| Dimensions | 197 × 171 × 76 mm |
| Weight | 1.43 kg |
| Warranty | 2 years |
Government Channel
Spec It to Your Mission
Government-channel configurations differ from commercial variants and detailed options are set per order. Request a quote or a capability briefing on the DNBN-5.
