Multi-Mission Versatility
Functions as a clip-on, stand-alone riflescope, handheld viewer, or helmet-mounted device.
Thermal Imaging · Clip-On / Stand-Alone Sight

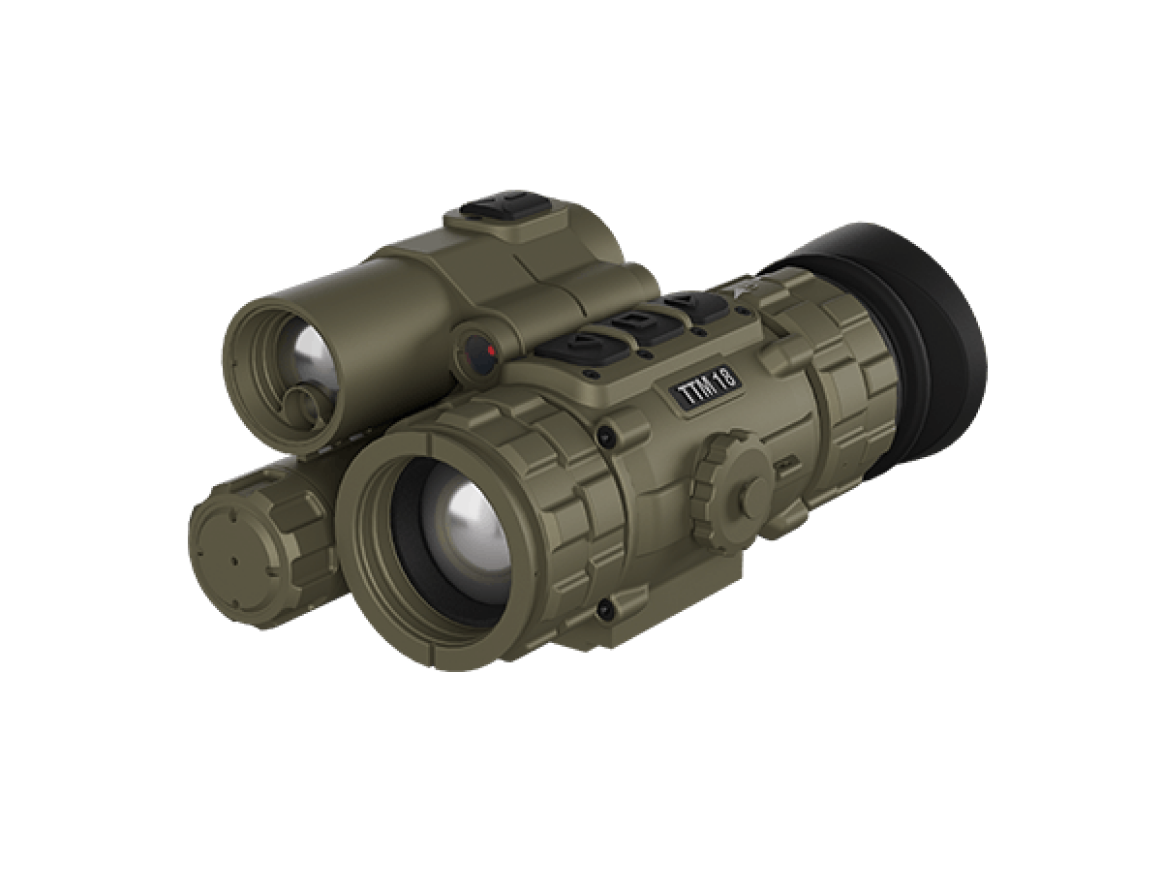

TTM-18
SKU · TTM 18 · TTM-18 LRF — with rangefinder
A compact, multi-mission thermal sight — clip-on ahead of a day optic, stand-alone thermal riflescope, handheld viewer, or helmet-mounted goggle. A 12-micron 640×480 core, a flip-to-side QD mount that holds zero, and an integrated IR laser pointer. Available ultra-compact or with a 1,000-yard laser rangefinder.
Key Advantage
One thermal sight, four roles — clip on ahead of a day optic without losing zero, run it stand-alone, in the hand, or on a helmet. As a thermal imager it reveals targets invisible to image-intensified night vision, and the IR laser pointer marks them for the team.
640×480Resolution
12 µmPixel Pitch
<25 mKNETD Sensitivity
~10 ozWeight
Highlights
Core specs and the features that set the TTM-18 apart.
- 640×480 · 12 µm
- <25 mK NETD
- 25 mm F1.0
- FOV 22.2°×16.6°
- Flip-to-Side QD
- Optional LRF 1000 yd
12-Micron 640×480 Core
An advanced focal-plane array and image processor deliver industry-leading thermal sharpness.
Flip-to-Side QD Mount
Transition between day optics and thermal while holding zero.
IR Laser Pointer
850 nm Class 1 eye-safe pointer marks targets the thermal sees but I² night vision can't.
Choose Your Version
Two configurations tailored to the mission.

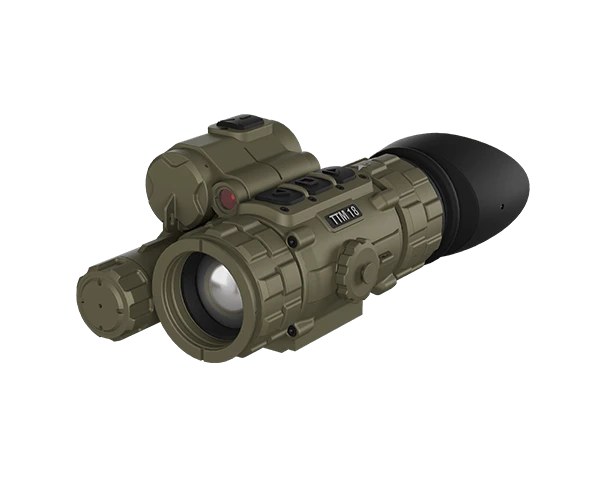

ATN TTM-18Ultra-Compact
Lightweight and streamlined for maximum portability.
ATN TTM-18 LRFCompact + 1,000-yd LRF
Enhanced with a 1,000-yard laser rangefinder for extended capabilities.

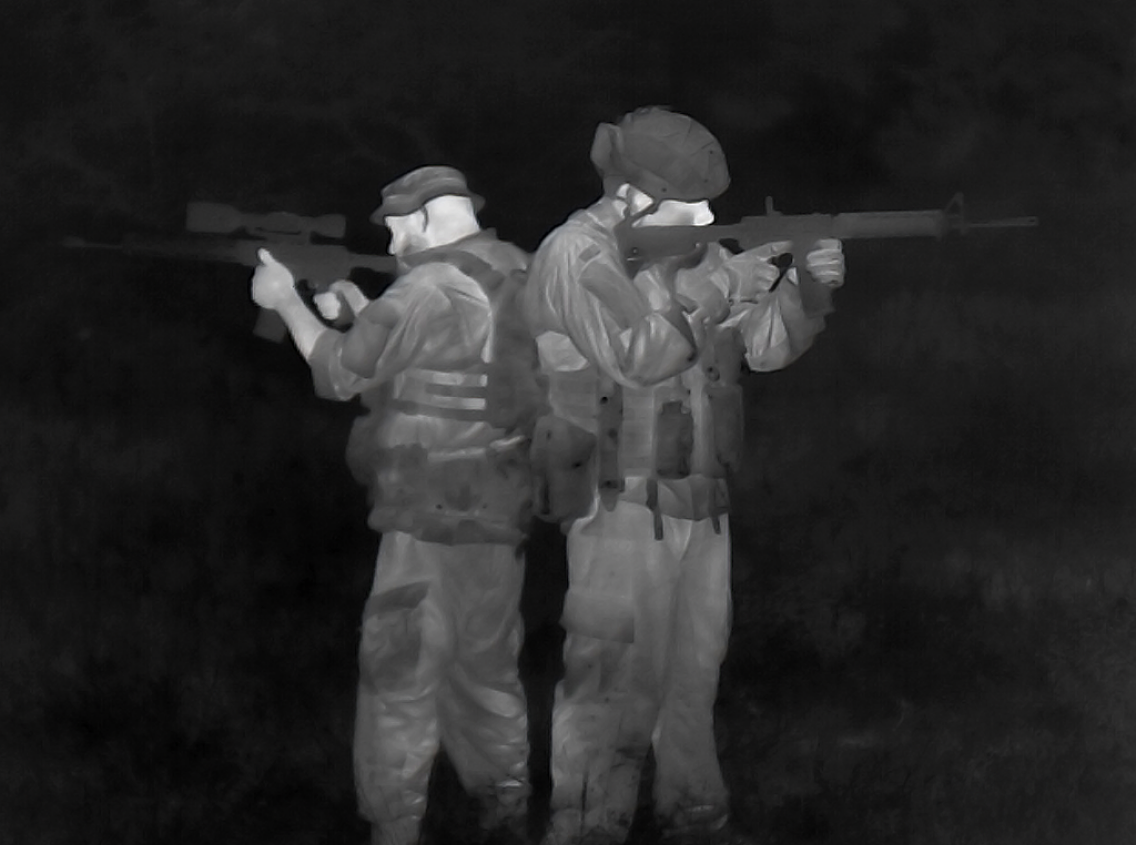

Unmatched Thermal Clarity
At the heart of the TTM-18 is a 12-micron, 640×480 ATN core. An advanced focal-plane array and thermal image processor deliver industry-leading image sharpness and unparalleled thermal performance.

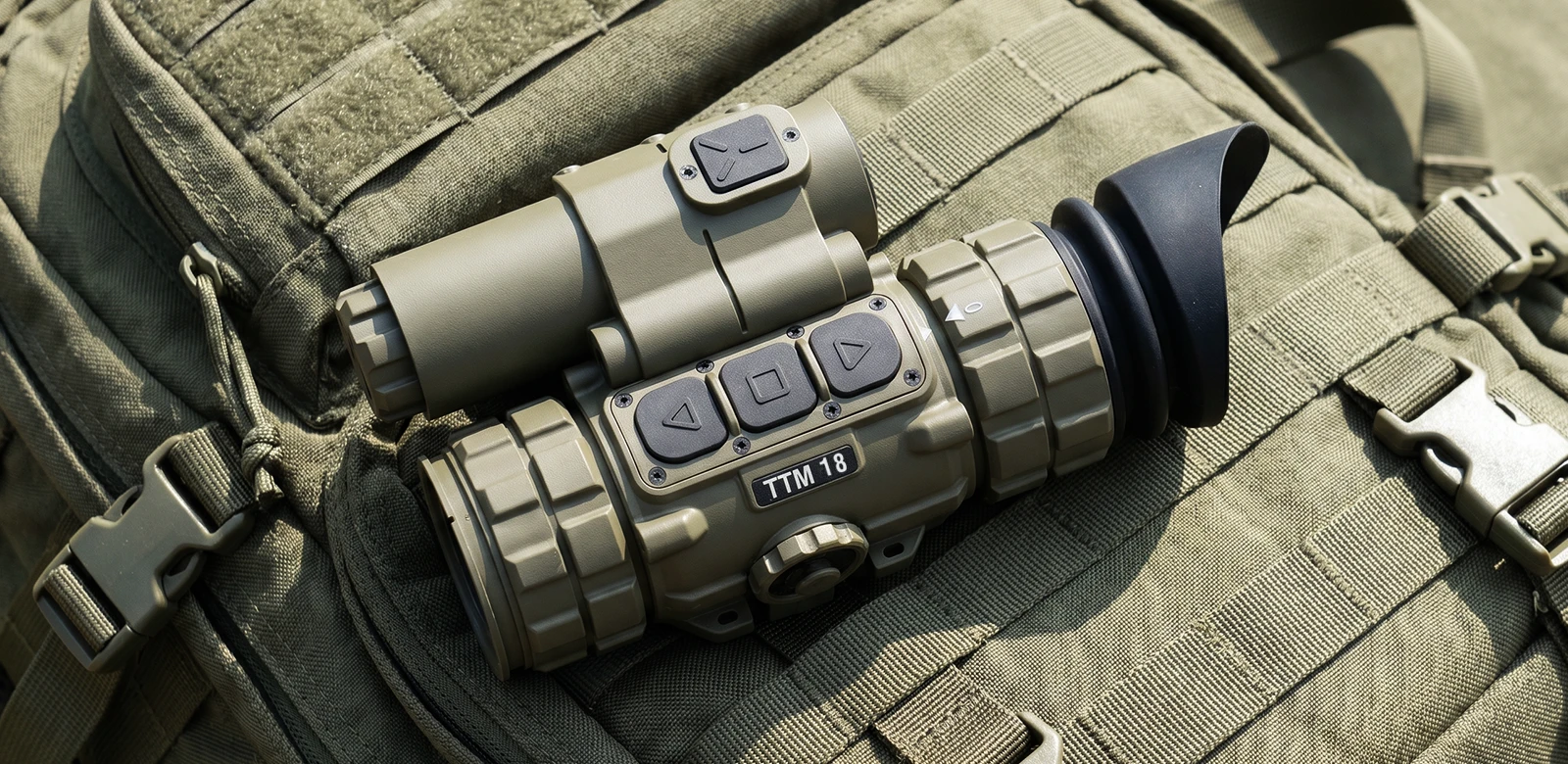

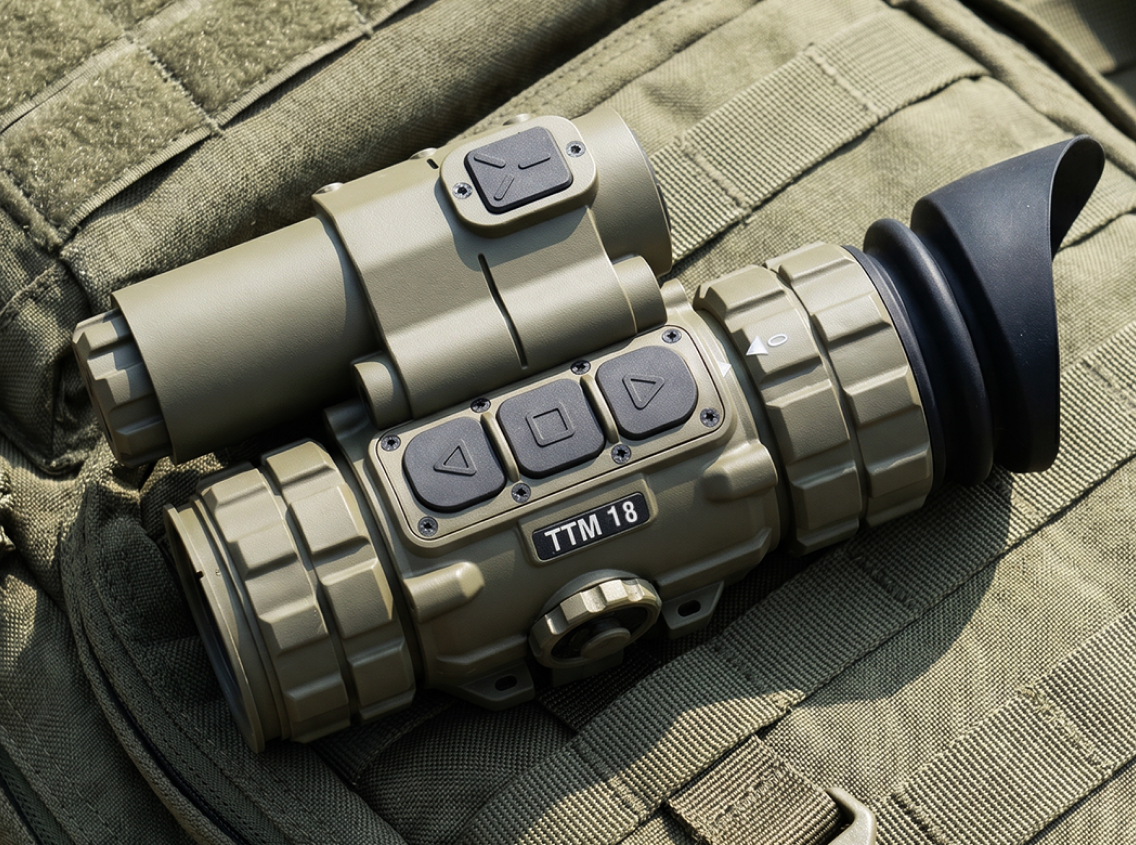

Mission-Ready Flip-to-Side QD Mount
A flip-to-side QD mount enables a seamless transition between day optics and thermal vision while maintaining zero. Its rugged build and reliable performance make it a trusted companion for any tactical mission.

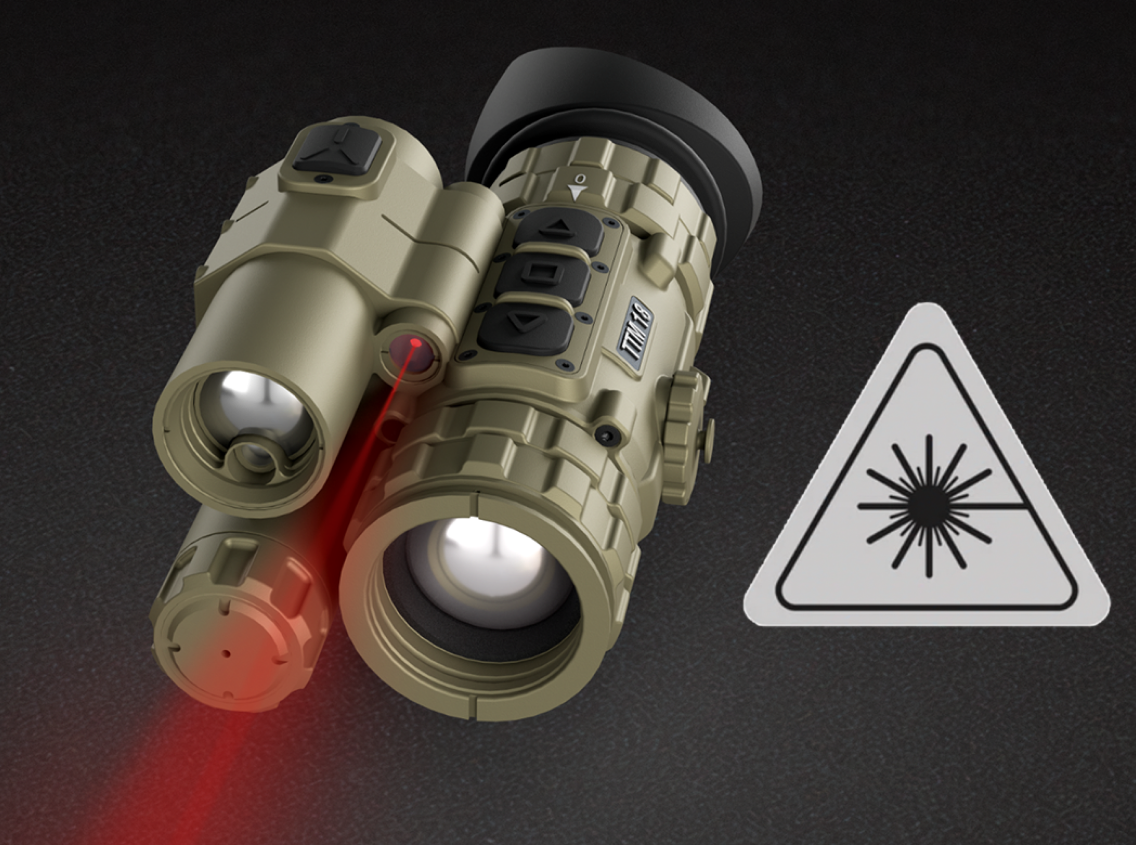

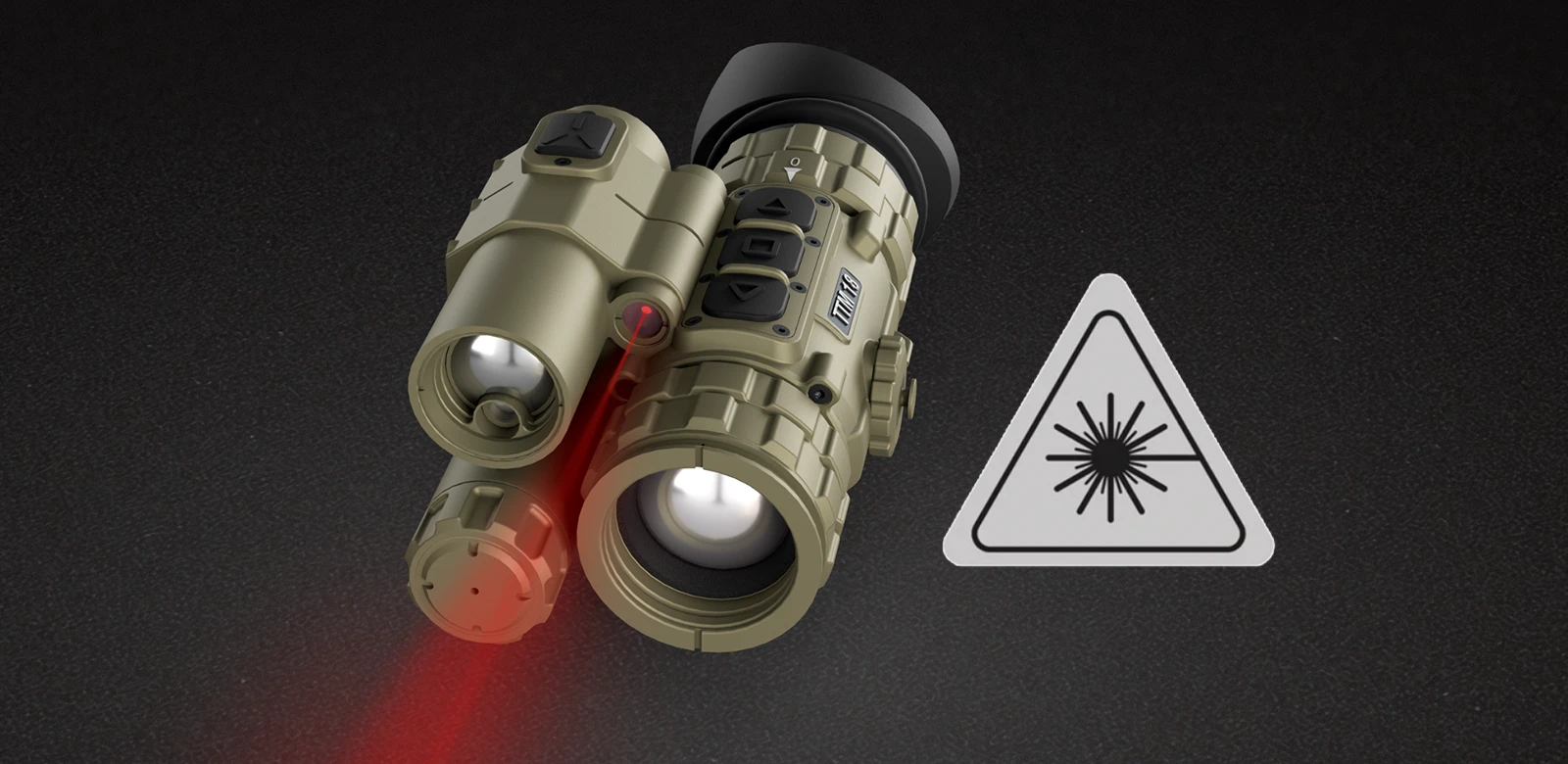

IR Laser Pointer
An integrated 850 nm Class 1 eye-safe IR pointer lets the thermal TTM detect targets invisible to teammates on image-intensified night vision — a team member can locate a target and highlight it for the rest of the team, a vital strategic asset.
Multi-Mission Versatility
One thermal sight, four roles — adapt it to the task.
Clip-On
Weapon Sight

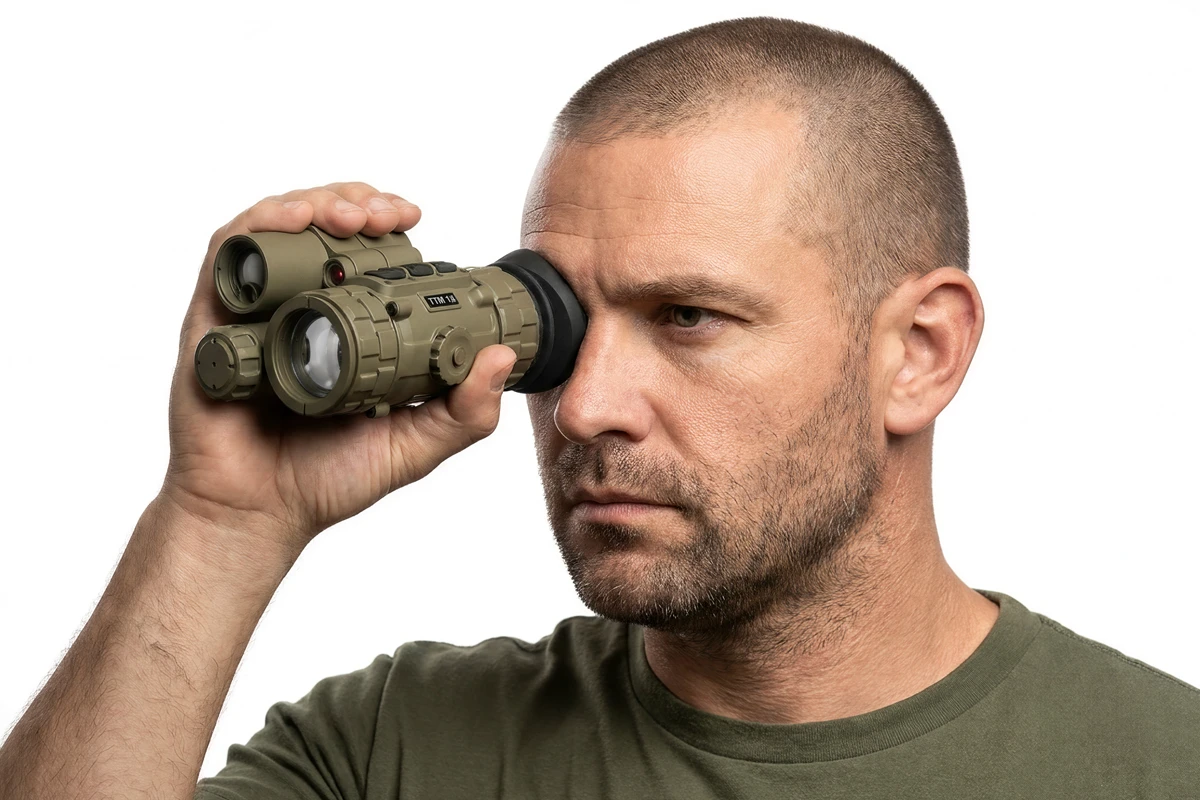

Monocular

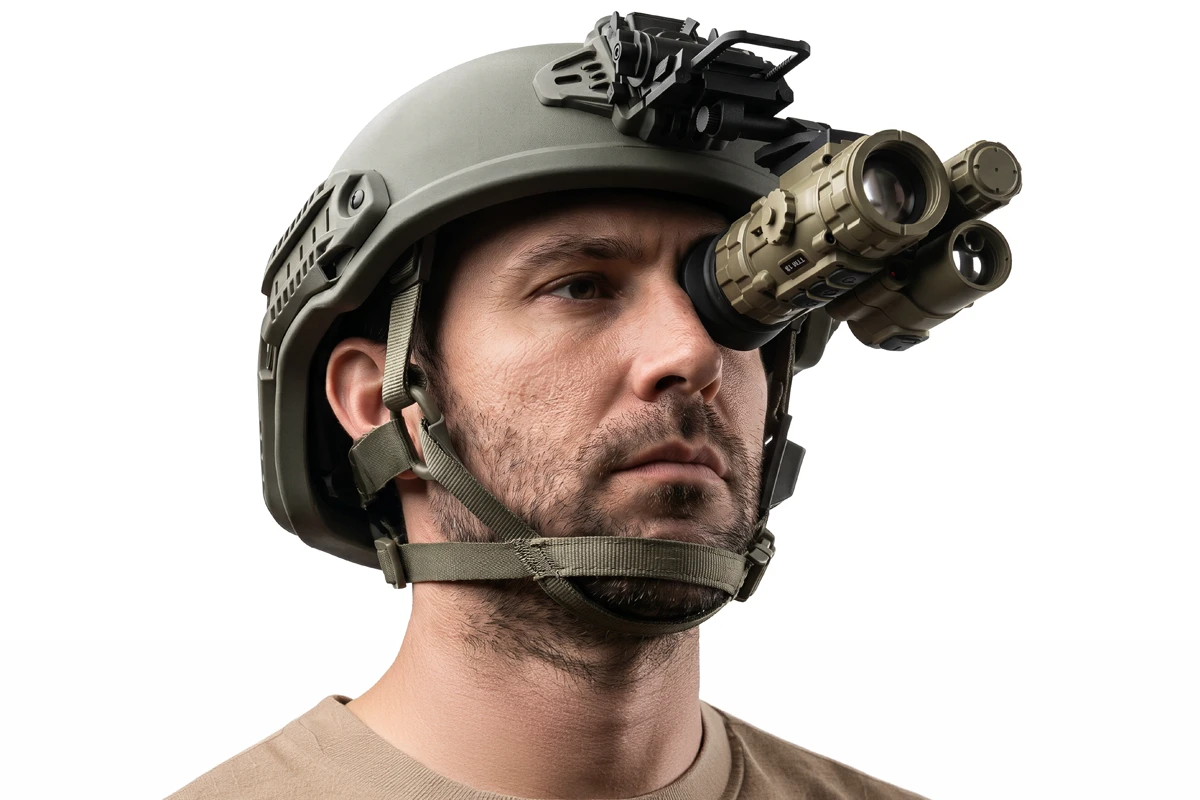

Helmet-Mounted
Full Specifications
| Model | TTM-18 |
|---|---|
| Modes of operation | Clip-on · weapon sight · monocular · helmet |
| Thermal sensor | 12-micron · 640×480 |
| Sensitivity (NETD) | <25 mK |
| Objective lens | 25 mm · F1.0 |
| Focus range | 0.25 m – ∞ |
| Magnification | 1× |
| Field of view | 22.2° × 16.6° |
| Diopter adjustment | −3 to +3 dpt |
| Exit pupil | 20 mm |
| Eye relief | Unlimited |
| Laser rangefinder | 1000 y/m (LRF version) |
| IR laser pointer | 850 nm · Class 1 eye-safe |
| Recording | Video & photo to internal memory (64 GB) |
| Additional sensors | Compass · accelerometer · gyroscope |
| Power | 1× CR123 or 1× 18650 (rechargeable) |
| Battery life | <3 h (CR123) · 7+ h (18650) |
| Mount | NVG dovetail shoe |
| IP rating | IP67 |
| Dimensions | 100 × 75 × 60 mm |
| Weight | 300 g (350 g LRF) |
| Compliance | MIL-STD-810 · MIL-STD-461 (EMC) |
Export-Controlled · Government Channel
Spec It to Your Mission
The TTM-18 may be ITAR/EAR-controlled and is sold to authorized buyers. Request a quote or a capability briefing on the TTM-18.
