Brand-New 4K+ Sensor
A new Ultra HD sensor for crisp, vivid imaging across the zoom range.
Day/Night Digital · Weapon Sight
DNWS-5
SKU · DNWS-5 · ATN DNWS-5 · 3-15x / 5-25x
An Ultra HD day/night weapon sight on a brand-new 4K+ sensor with the Gen V Quad Core, dual-stream video with internal recording, an integrated ballistic calculator, recoil-activated slow-motion capture, a smart mil-dot reticle with editor, and an optional built-in laser rangefinder.
Key Advantage
A digital day/night sight that ranges, computes the solution, and adjusts the reticle through the zoom range — and records the shot automatically on recoil, day or night.
Highlights
Core specs and the features that set the DNWS-5 apart.
- 4056×3040 4K+
- 3–15× · 5–25×
- Gen V Quad Core
- Ballistic Calc
- 4K video
- 30 mm rings

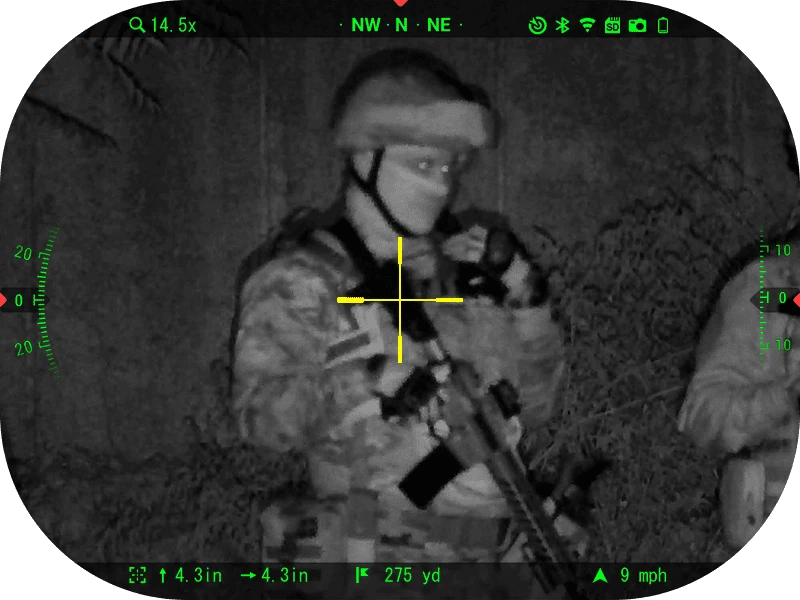

Enhanced Night Vision Mode
Crisp, vivid night-time images in Ultra HD.
Ballistic Calculator
On-board ballistics compute the holdover for the shot.
Recoil-Activated Video (RAV)
Captures slow-motion video of the shot automatically on recoil.

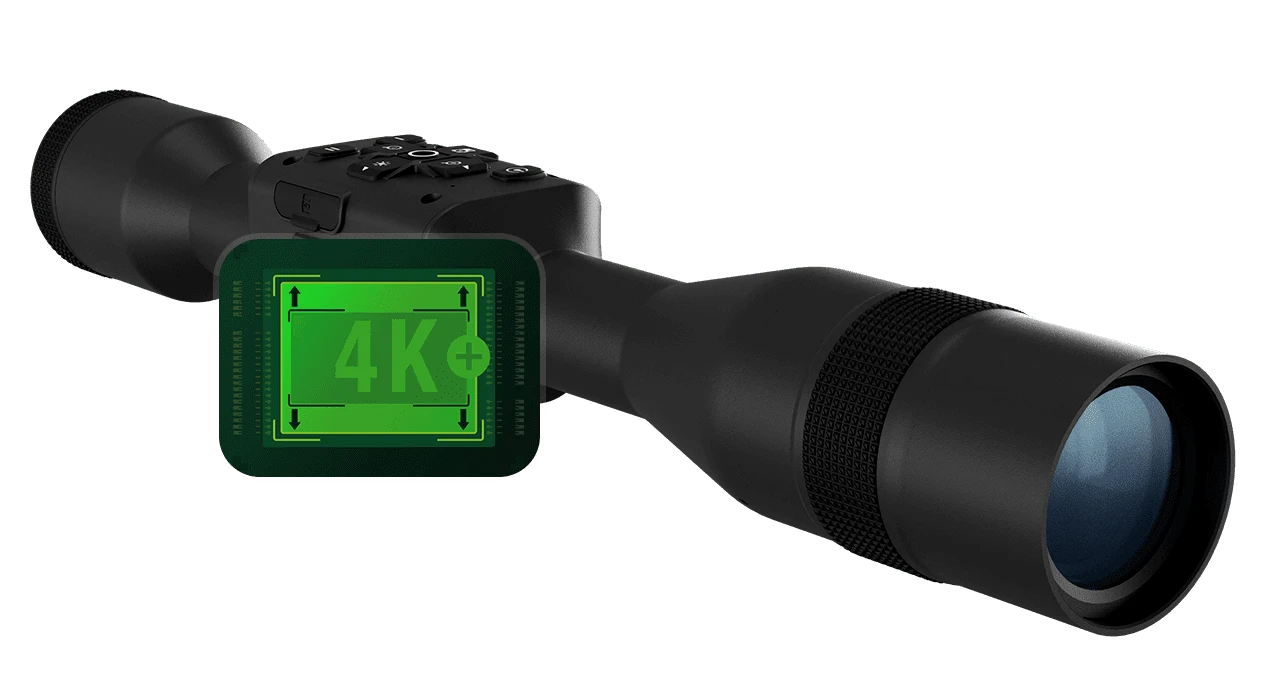

4K+4056×3040 Sensor
Gen VQuad Core
3–15× · 5–25×Magnification
90 mmEye Relief
Built-In Intelligence
The Obsidian Gen V Quad Core packs ranging, ballistics, recording, and data exchange into the sight.

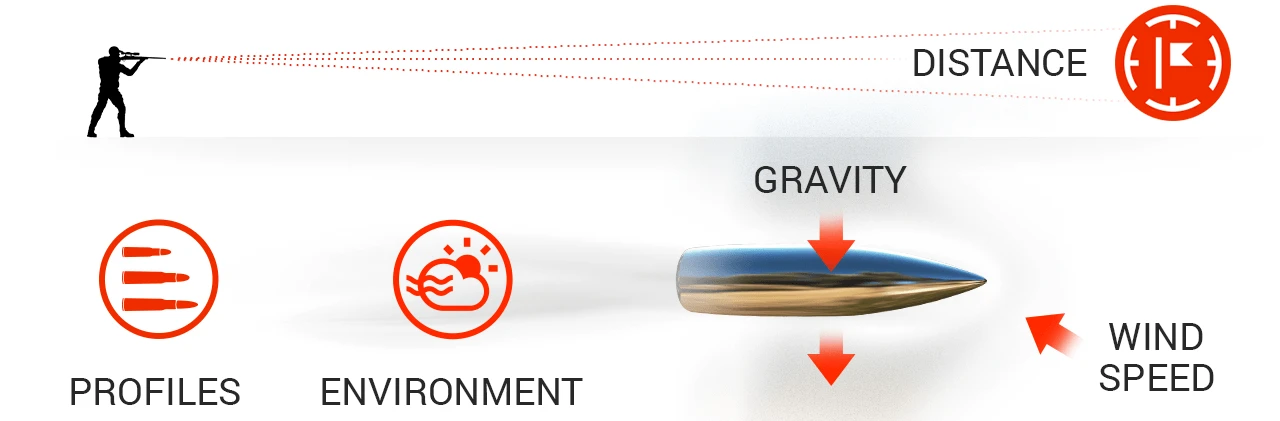

Ballistic Calculator
On-board ballistics compute the firing solution and holdover — dominance through technology, made simple.

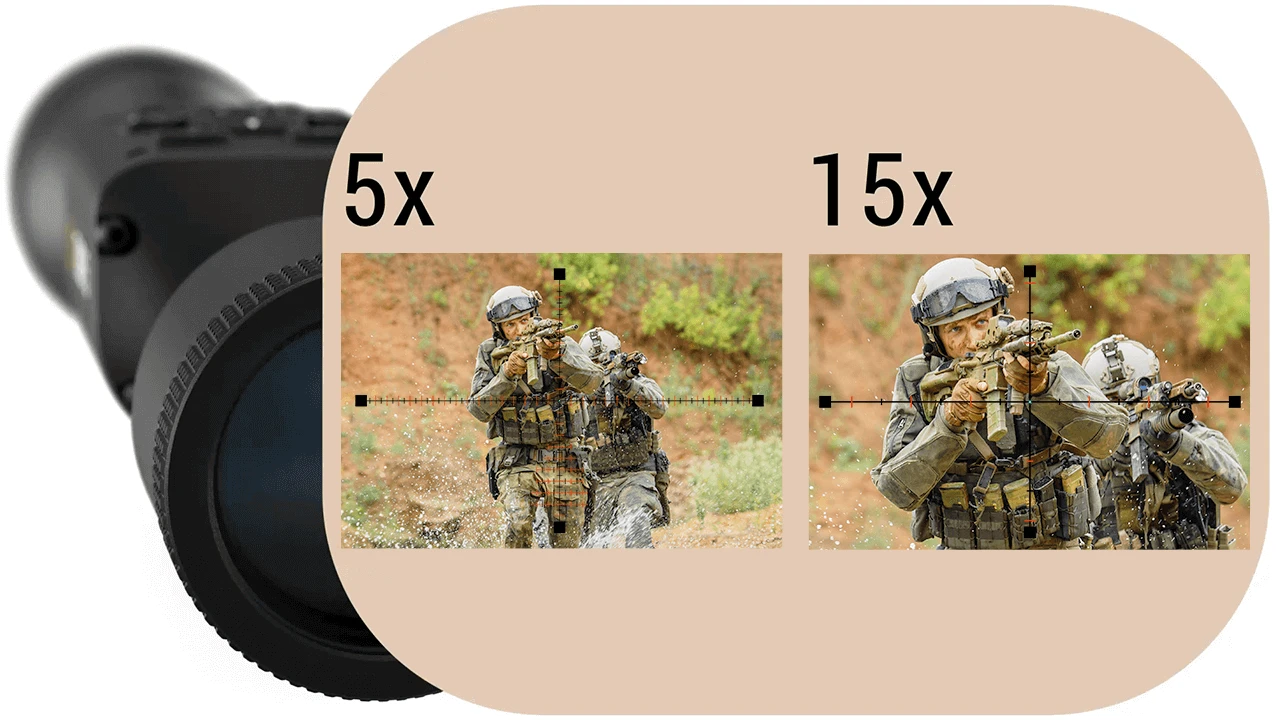

Smart Mil-Dot Reticle
A dynamic reticle that scales with magnification across the entire zoom range.

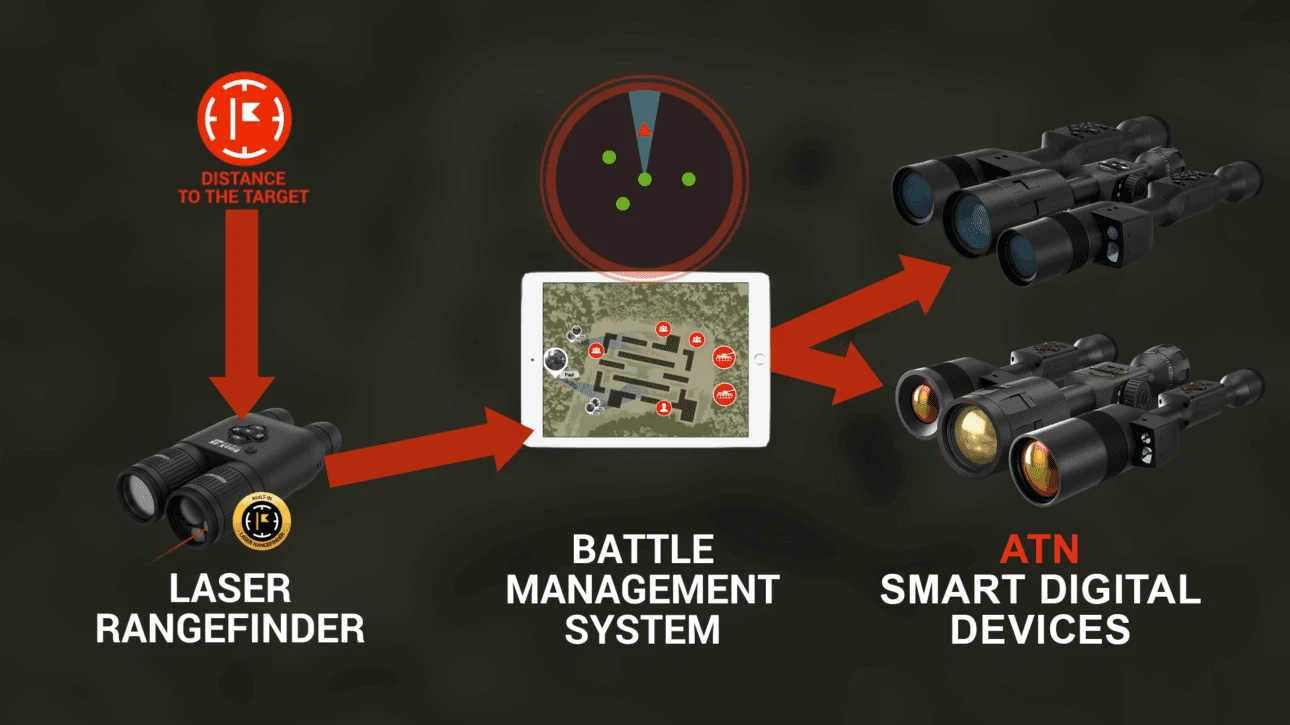

BIX + Tactical Nav
Exchanges ballistic data with paired ATN devices and marks ranged targets on the tactical map.

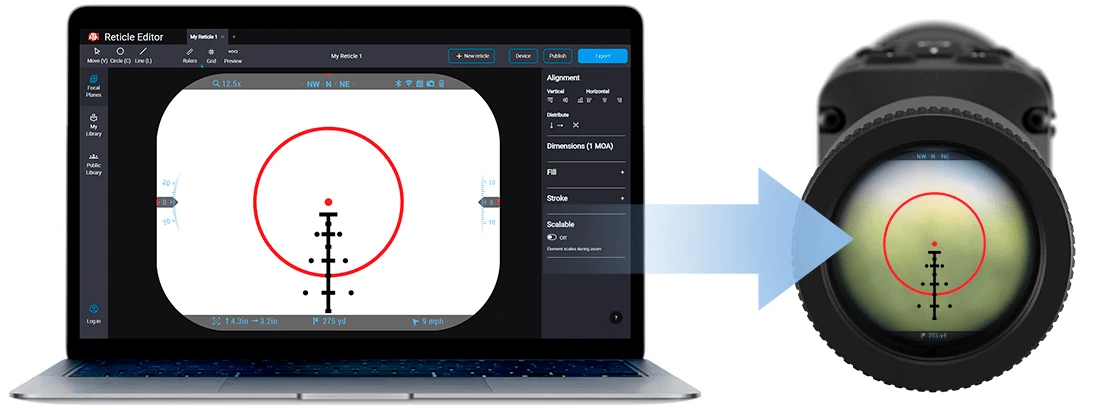

Custom Reticle Editor
Design and load your own reticles with the ATN Reticle Editor for the mission at hand.
Dual-Stream Video
Stream HD to a mobile device while recording to the internal SD card at the same time.

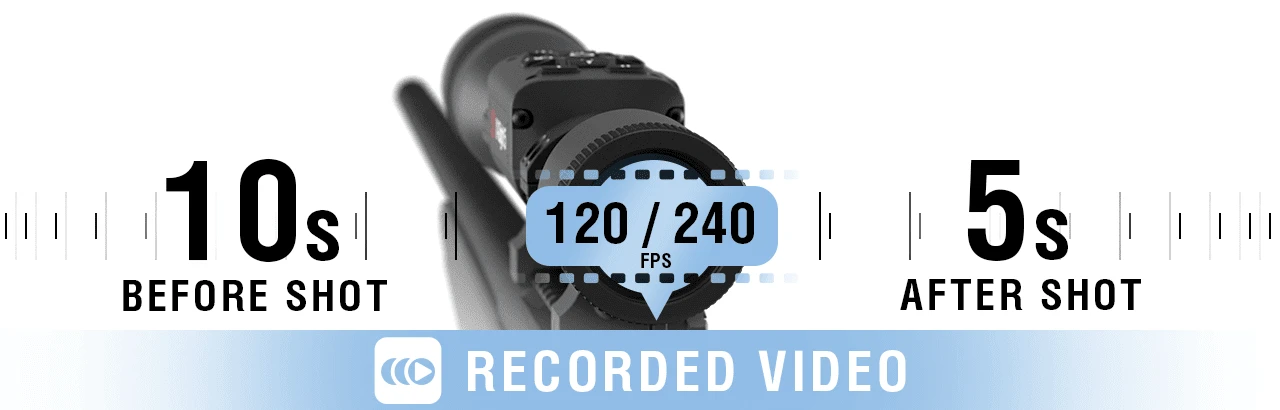

Recoil-Activated Video
RAV automatically captures slow-motion video of the shot — focus on the target, not the record button.

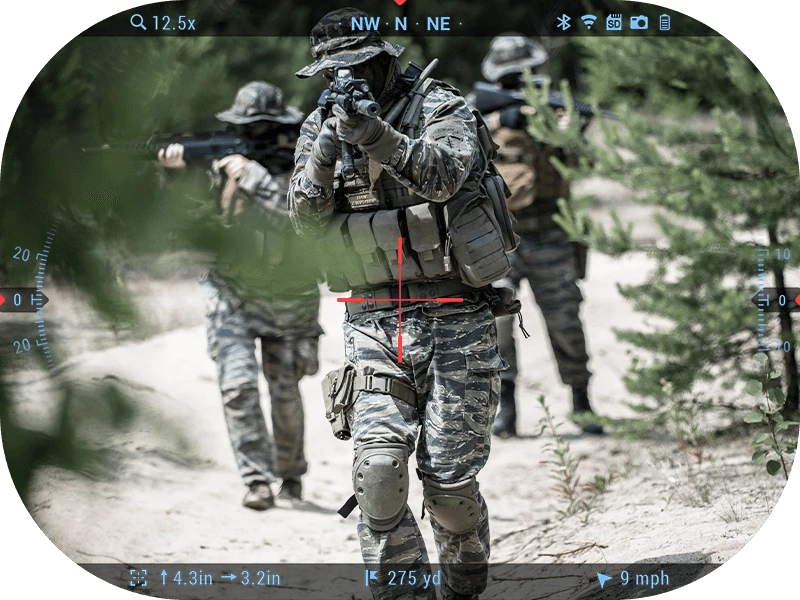

A Reticle That Thinks
The smart mil-dot reticle stays true through the full magnification range — the spacing scales with zoom so your holds are always correct. Pair it with the on-board ballistic calculator and BIX, and the holdover is computed for you. Prefer your own pattern? Build it in the ATN Reticle Editor and load it on.
- Dynamic Mil-Dot
- Scales With Zoom
- Custom Reticle Editor
- Multiple Colors
Configurations
Choose the magnification range, with or without an integrated laser rangefinder.

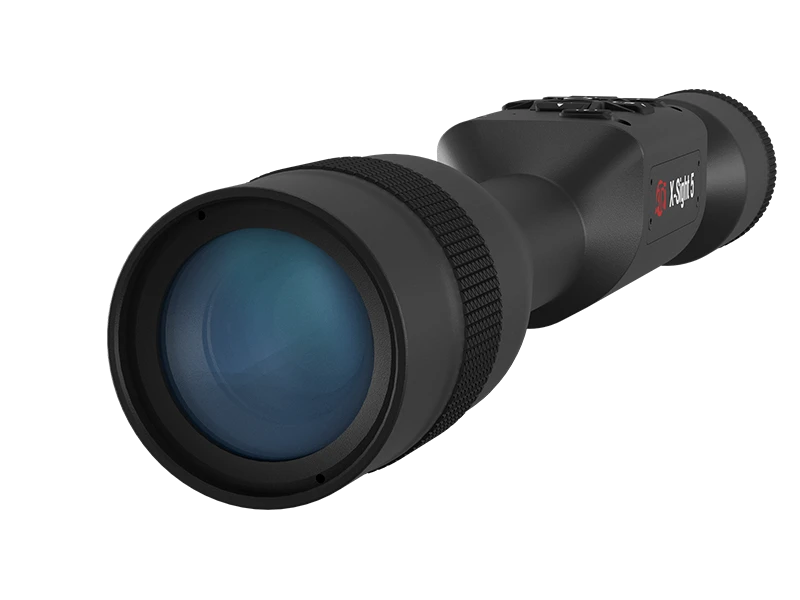

3–15×
Magnification
Wider field for closer and faster engagements (FOV 9°).

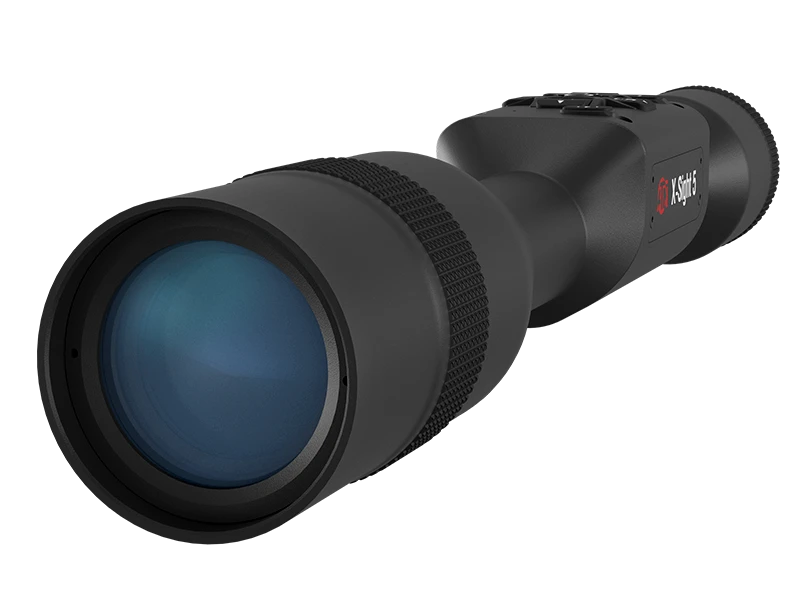

5–25×
Magnification
More reach for stand-off precision (FOV 6.3°).

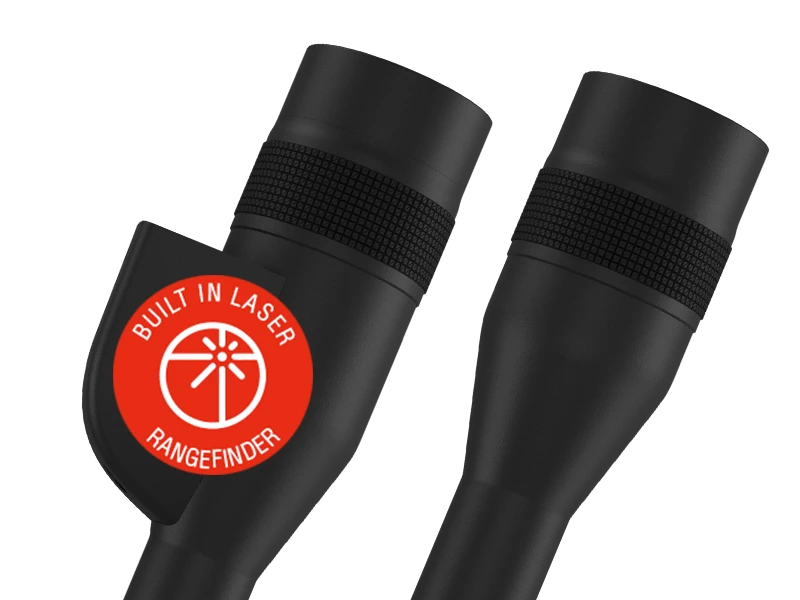

LRF
Optional
Add a built-in laser rangefinder on the DNWS-5 LRF models.
Full Specifications
Complete technical data, smart features, and connectivity.
| Model | ATN DNWS-5 (3-15x / 5-25x) |
|---|---|
| Sensor | ATN 4K+ · 4056×3040 · 30/60/120 fps |
| Core | ATN Gen V Quad Core |
| Magnification | 3–15× / 5–25× |
| Field of view | 9° / 6.3° |
| FOV @ 100 m | 15.7 m / 11 m |
| Micro display | 1280×960 |
| Eye relief | 90 mm |
| Laser rangefinder | Optional (LRF models) |
| Ballistic calculator | Yes |
| Video record | Up to 4K UHD · 30/60/120 fps |
| RAV | Yes |
| Reticle | Multiple patterns + user custom (editor) |
| Storage | microSD 4–64 GB (V30) |
| Connectivity | WiFi (iOS & Android) |
| Mount | 30 mm standard rings (included) |
| Battery life | Up to 14 h |
| Operating temp. | −28 … +48 °C |
| Dimensions | 337×56×54 mm … 385×76×56 mm (LRF) |
| Weight | 0.85–0.99 kg |
| Warranty | 2 years |
Government Channel
Spec It to Your Mission
Government-channel configurations differ from commercial variants and detailed options are set per order. Request a quote or a capability briefing on the DNWS-5.
