White-Phosphor Tube
A 23–25 SNR white-phosphor tube for natural, high-contrast night imaging.
Image Intensification · Modular Monocular

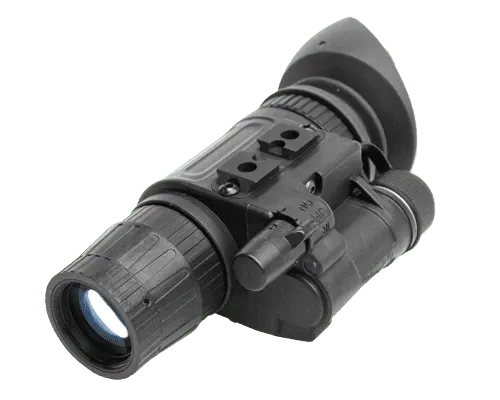

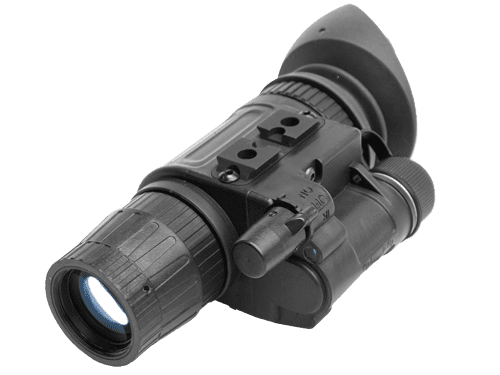

NVM14
SKU · NVMPAN14HPW
A high-performance, modular night-vision monocular — handheld, head-, helmet-, or weapon-mounted, and compatible with most IR laser aiming/illuminating devices. White-phosphor imaging with ATN Total Darkness Technology and a built-in IR flood.
Key Advantage
One flexible monocular for walking, driving, weapon firing, short-range surveillance, and map reading — white-phosphor imaging with a built-in IR flood lens for maximum function in minimal light.
Highlights
Core specs and the features that set the NVM14 apart.
- White Phosphor 23–25 SNR
- 1×
- FOV 40°
- 64–66 lp/mm
- Built-in IR
- Waterproof
Modular Multi-Mount
Handheld, head-, helmet-, or weapon-mounted for multi-mission use.
IR-Laser Compatible
Works with most IR laser aiming and illuminating devices.
Total Darkness Technology
Built-in IR illuminator with a flood lens for minimal-light conditions.
WhitePhosphor · 23–25 SNR
1× · 40°Mag · FOV
64–66lp/mm Resolution
50–60 hBattery (CR123)
White-Phosphor Tube
A 23–25 SNR white-phosphor tube for natural, high-contrast night imaging.
Multi-Mount Modular
Handheld, head-, helmet- or weapon-mounted for multi-mission use.
IR-Laser Compatible
Works with most IR laser aiming and illuminating devices.
Built-in IR Flood
Total Darkness Technology — a built-in IR illuminator with a flood lens.
Digital Controls
Digital controls with automatic brightness and bright-light cut-off.
Waterproof · MIL-STD-810
Compact, waterproof body with auto shut-off; MIL-STD-810 compliant.
Mounting Options
Carry it any way the mission demands.

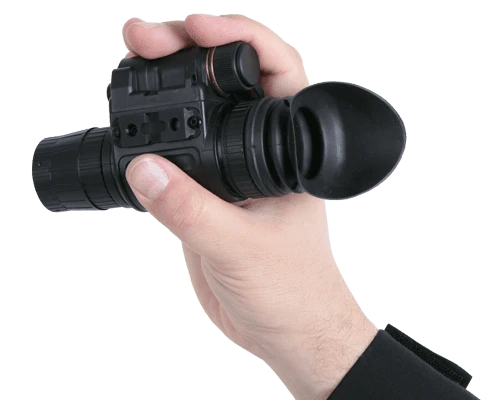

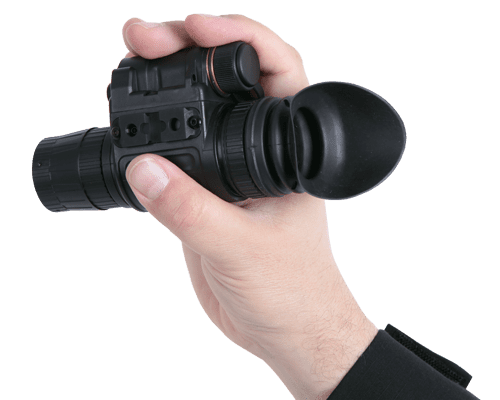

Handheld

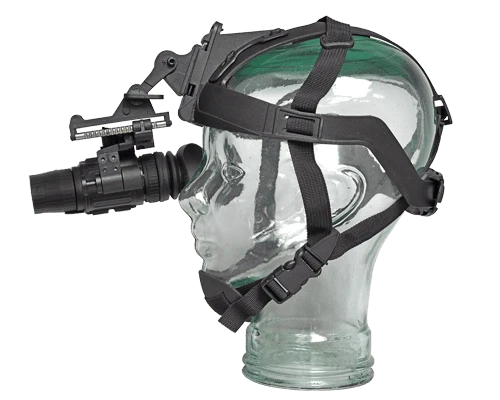

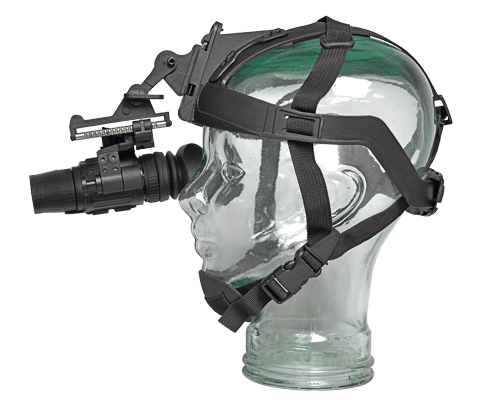

Head-Mounted

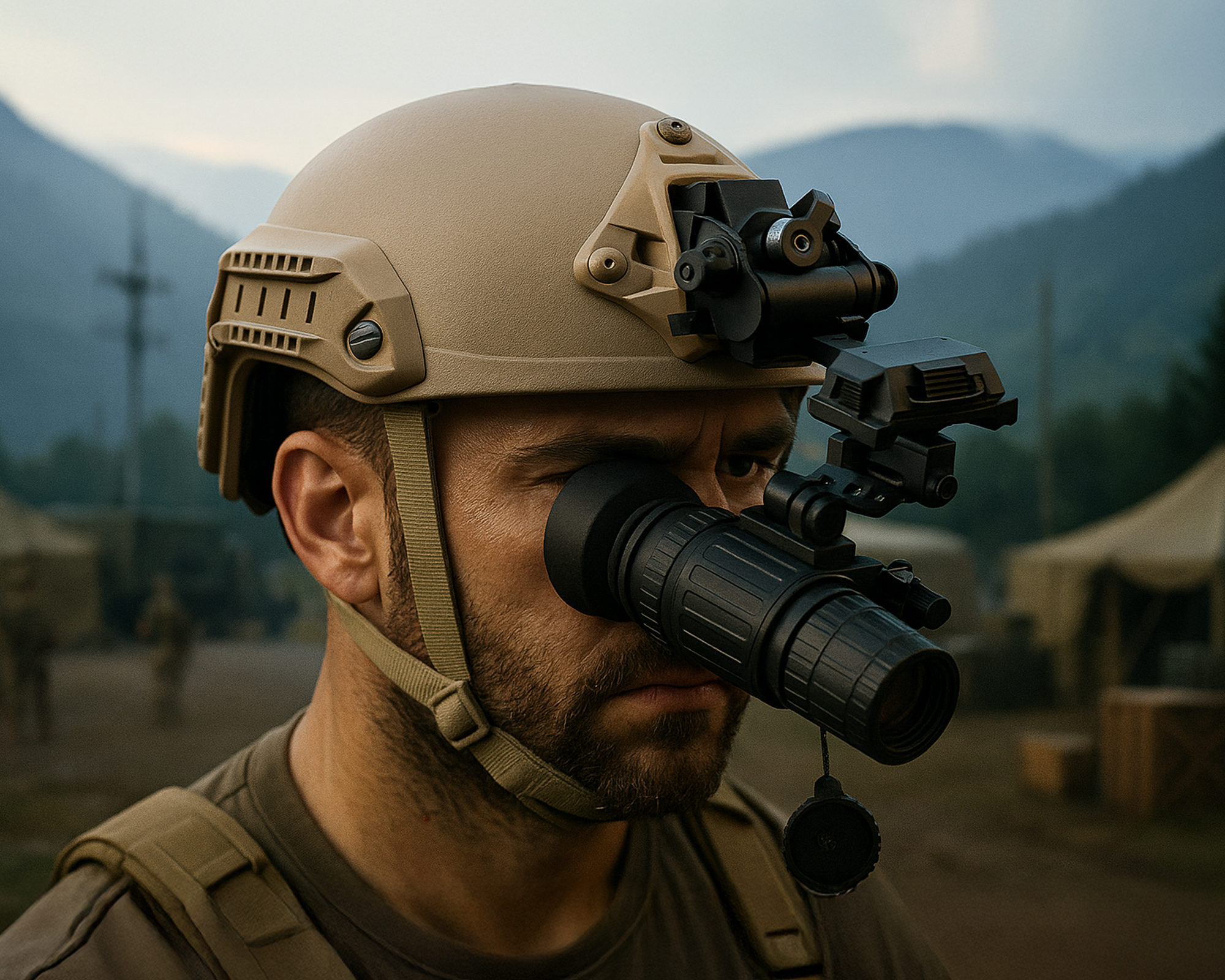

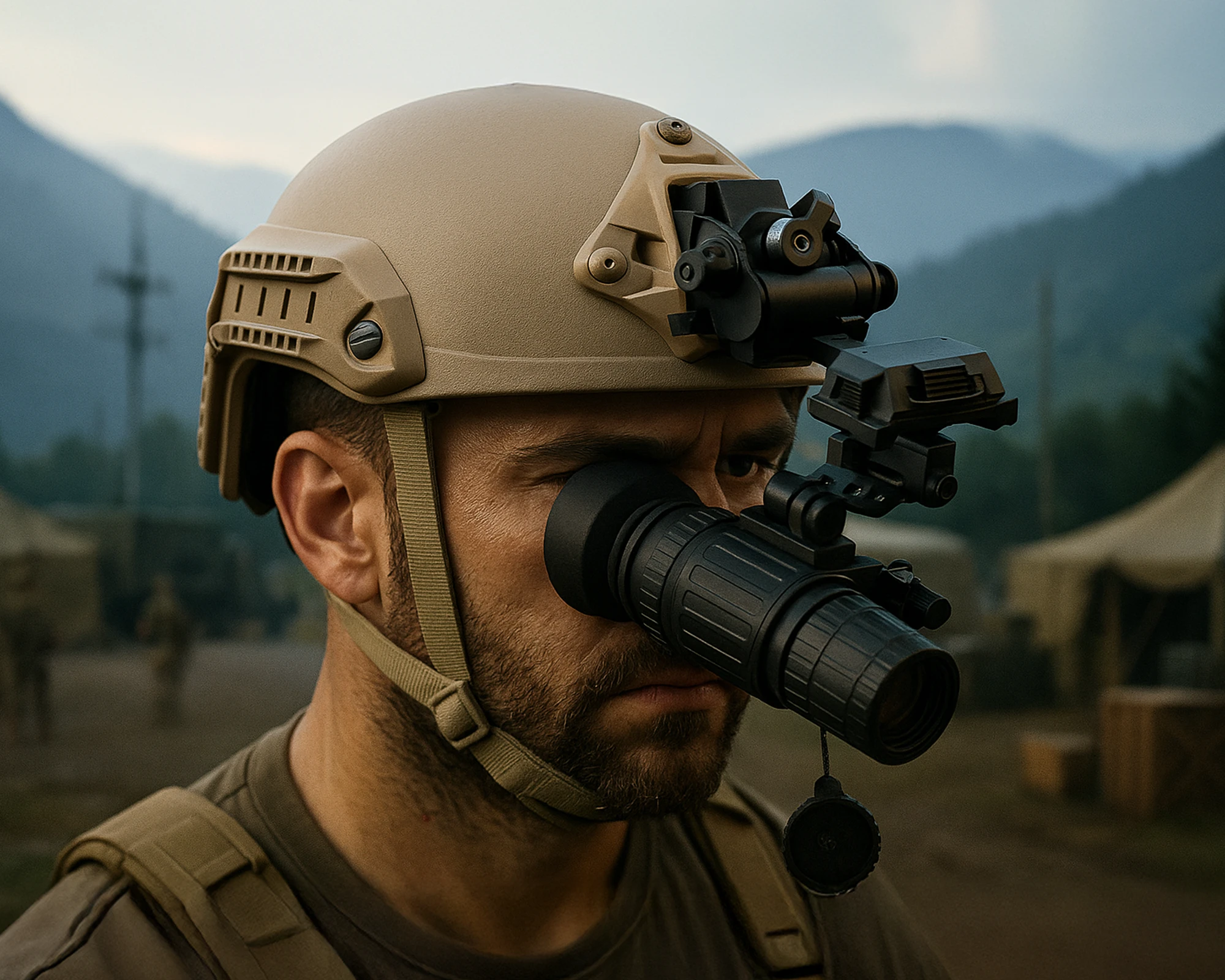

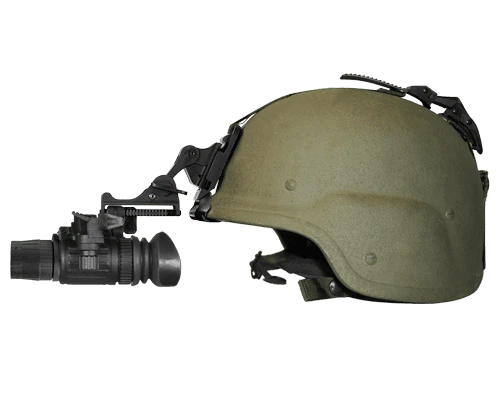

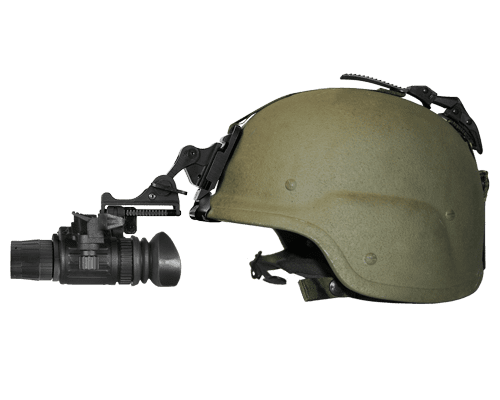

Helmet-Mounted

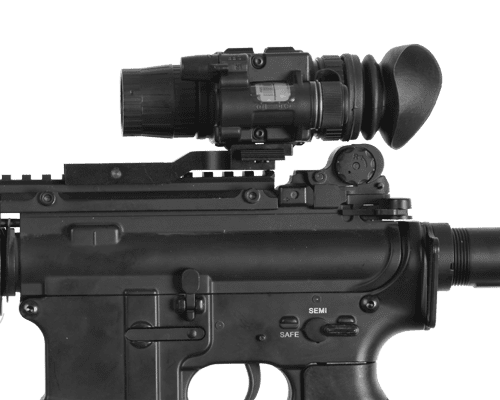

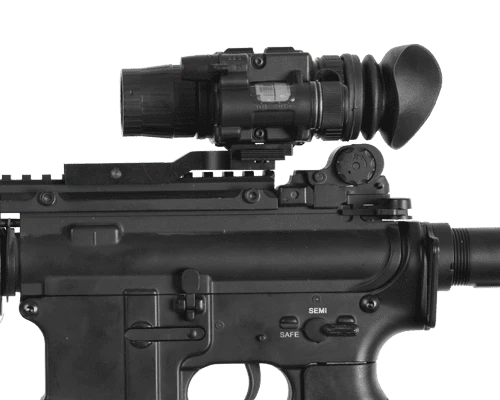

Weapon-Side
Full Specifications
Complete technical data, smart features, and connectivity.
| SKU | NVMPAN14HPW |
|---|---|
| Generation | 23–25 SNR White Phosphor |
| Resolution | 64–66 lp/mm |
| Magnification | 1× |
| Lens system | f/1.2 · 27 mm |
| Proshield coating | Yes |
| Field of view | 40° |
| Focus range | 0.25 m – ∞ |
| Diopter adj. | −6 … +2 |
| Controls | Digital |
| Automatic brightness | Yes |
| Bright-light cut-off | Yes |
| Auto shut-off | Yes |
| IR illuminator | Built-in (flood lens) |
| Power | 1× CR123A (3 V) |
| Battery life | 50–60 h |
| Environmental | Waterproof |
| MIL-STD-810 | Complies |
| Operating temp. | −40 … +50 °C |
| Dimensions | 120 × 49 × 69 mm |
| Weight | 0.28 kg |
| Warranty | 3 years |
Government Channel
Spec It to Your Mission
Government-channel configurations differ from commercial variants and detailed options are set per order. Request a quote or a capability briefing on the NVM14.
