PVS-14 Form Factor
Same size and helmet/dovetail mounts as the standard PVS-14, as a thermal alternative.
Thermal Imaging · Monocular / Goggle

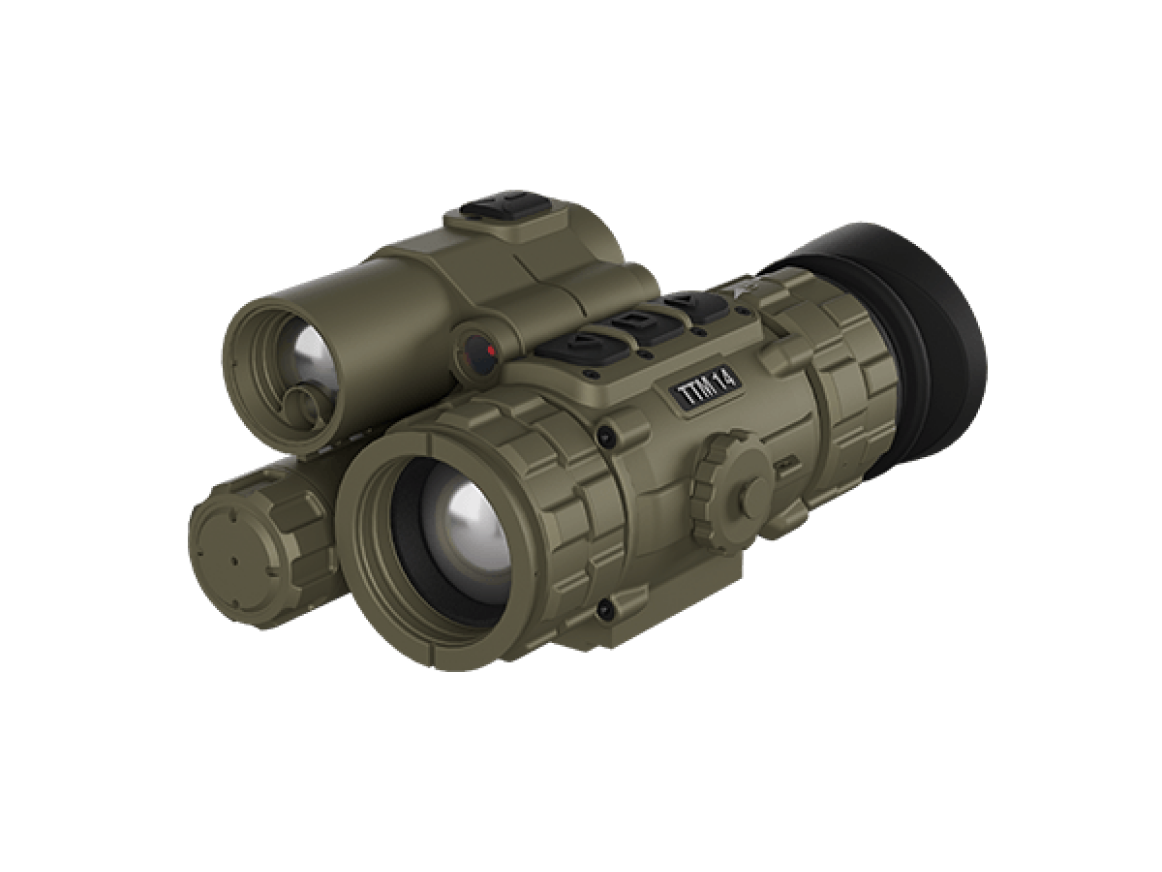

TTM-14
SKU · TTM 14 · TTM-14 LRF — with rangefinder
A rugged, compact thermal monocular in the standard PVS-14 form factor — handheld or helmet-mounted for hands-free use. A 12-micron 640×480 core, an integrated IR laser pointer, and an IP67 build, cutting through fog, foliage and haze. Available ultra-compact or with a 1,000-yard laser rangefinder.
Key Advantage
A thermal alternative in the size and mounts of the standard-issue PVS-14 — usable day and night, it enhances visibility through fog, foliage and haze and reveals hidden targets that image-intensified night vision can't see. The IR laser pointer marks them for the team.
640×480Resolution
12 µmPixel Pitch
<25 mKNETD Sensitivity
~10 ozWeight
Highlights
Core specs and the features that set the TTM-14 apart.
- 640×480 · 12 µm
- <25 mK NETD
- 25 mm F1.0
- FOV 22.2°×16.6°
- PVS-14 Mounts
- Optional LRF 1000 yd
12-Micron 640×480 Core
Advanced focal-plane array and image processor for crisp thermal detail.
Thermal Day or Night
Detects and recognizes targets in all conditions — light-independent.
Sees Through Obscurants
Cuts through fog, foliage and haze to reveal concealed targets.
Choose Your Version
Two mission-specific configurations.

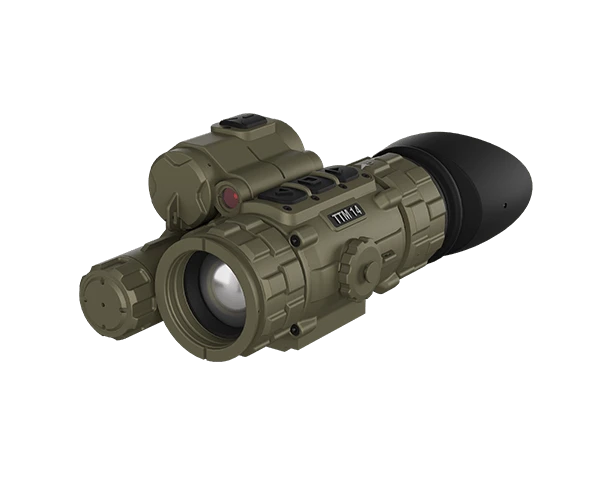

ATN TTM-14Ultra-Compact
Lightweight and streamlined for maximum portability.
ATN TTM-14 LRFCompact + 1,000-yd LRF
Enhanced with a 1,000-yard laser rangefinder for added situational awareness.

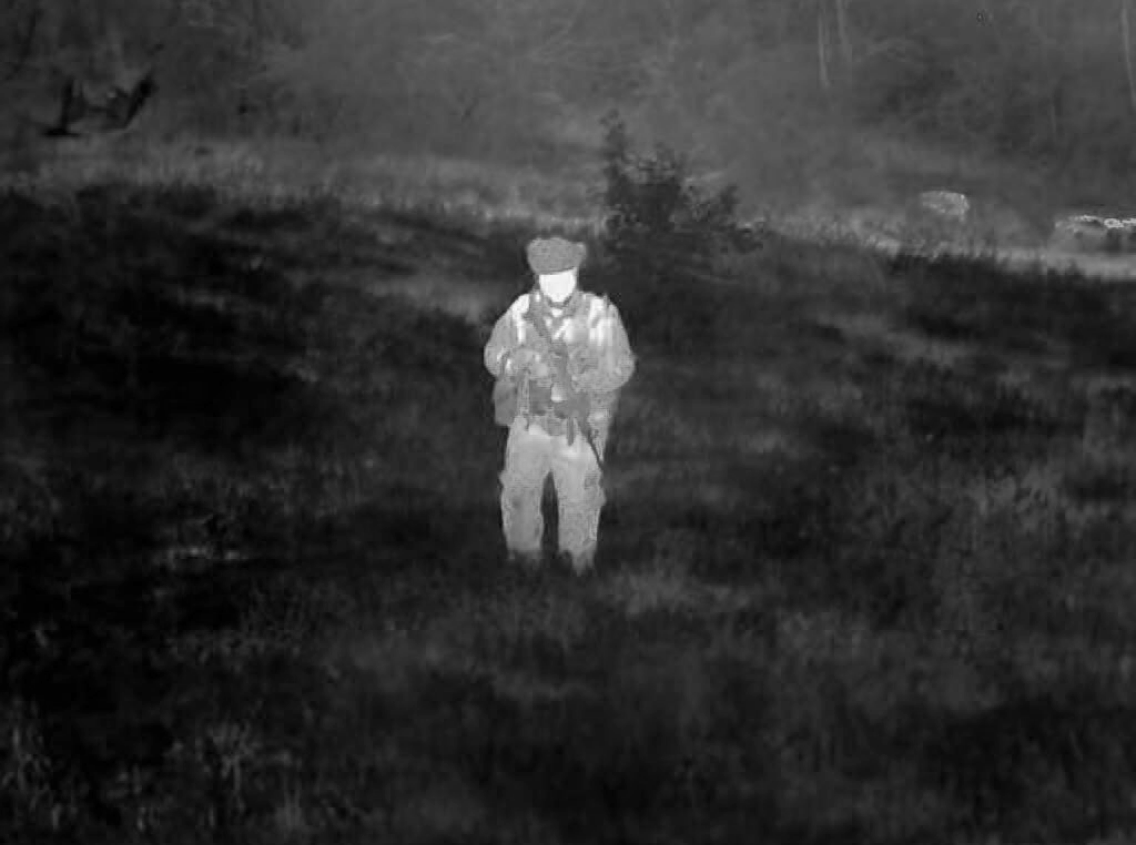

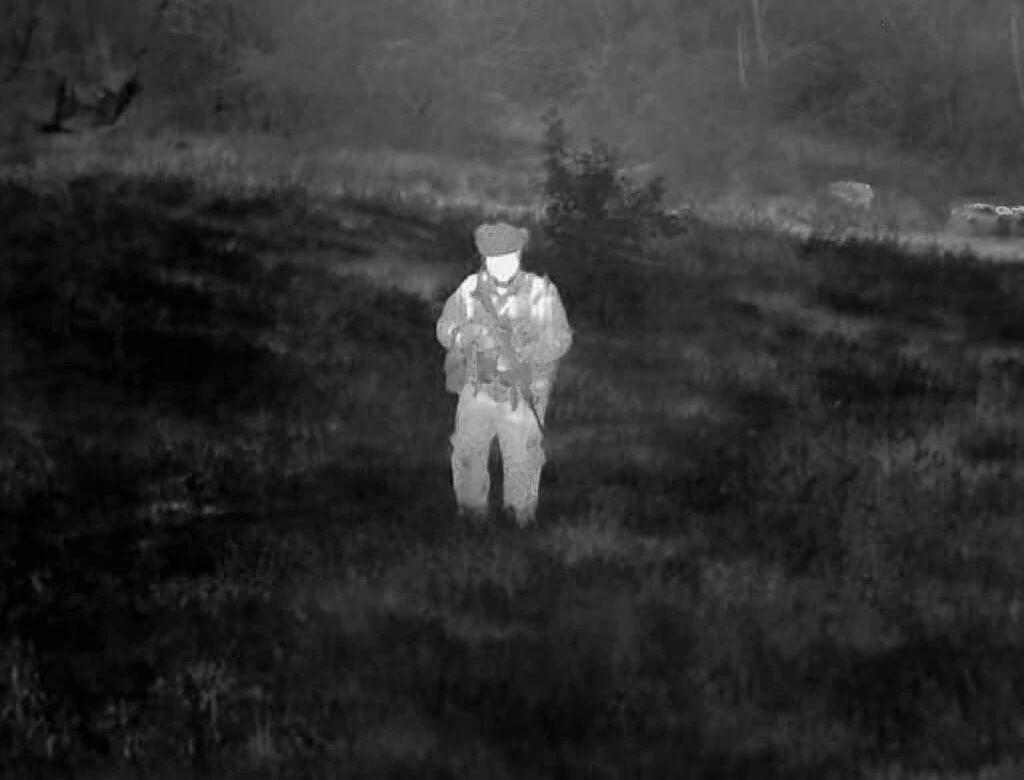

Unmatched Thermal Clarity
At the heart of the TTM-14 is a 12-micron, 640×480 ATN core. An advanced focal-plane array and thermal image processor deliver crisp, clear thermal imaging for superior target detection and recognition in all conditions.

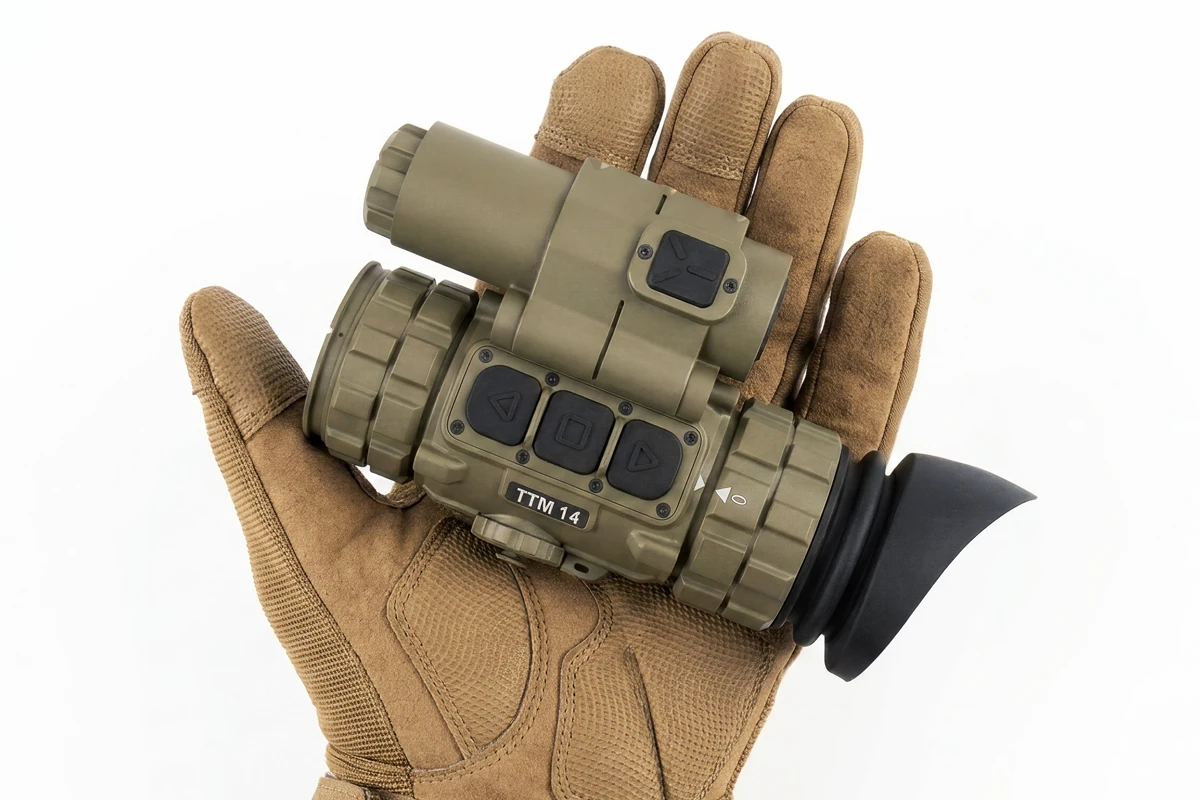

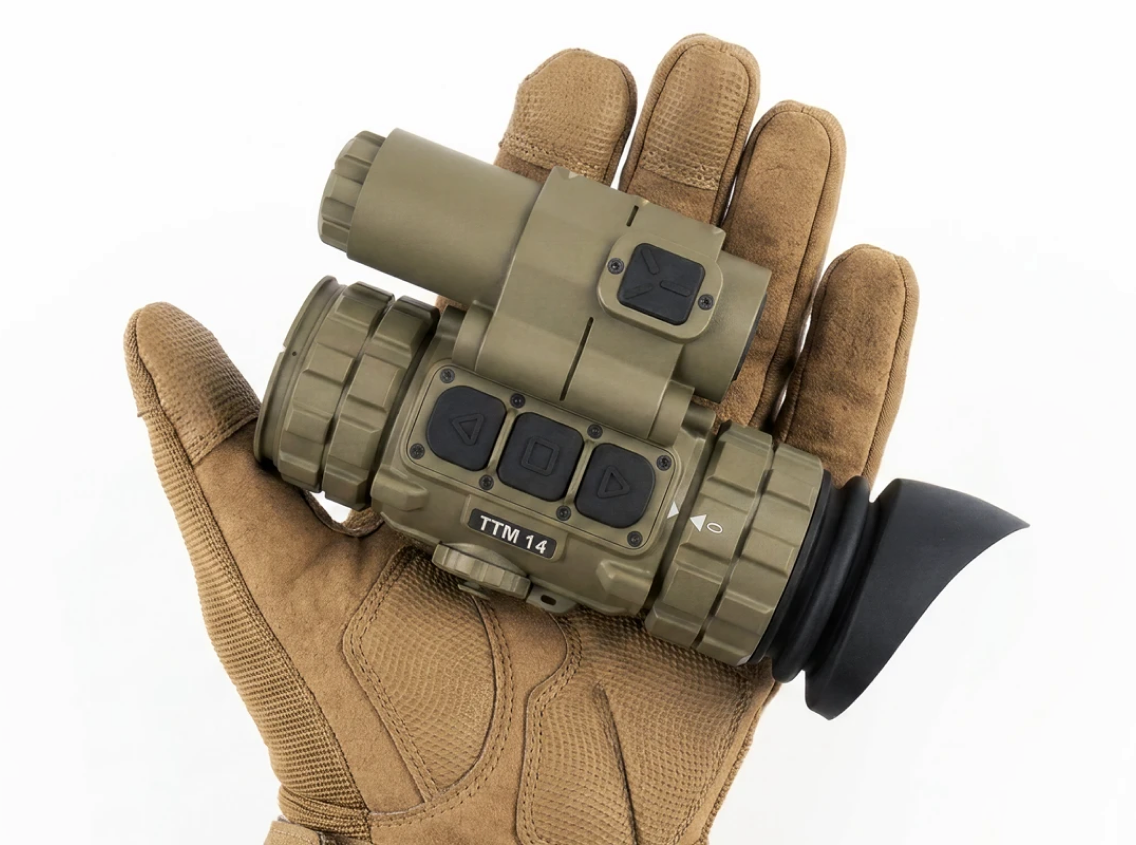

PVS-14 Form Factor, Thermal Inside
Similar in size to the standard-issue PVS-14, the TTM-14 is a thermal alternative usable day and night — handheld or helmet-mounted with familiar mounts, and built to rigorous MIL-STD-810G standards for long-lasting performance.

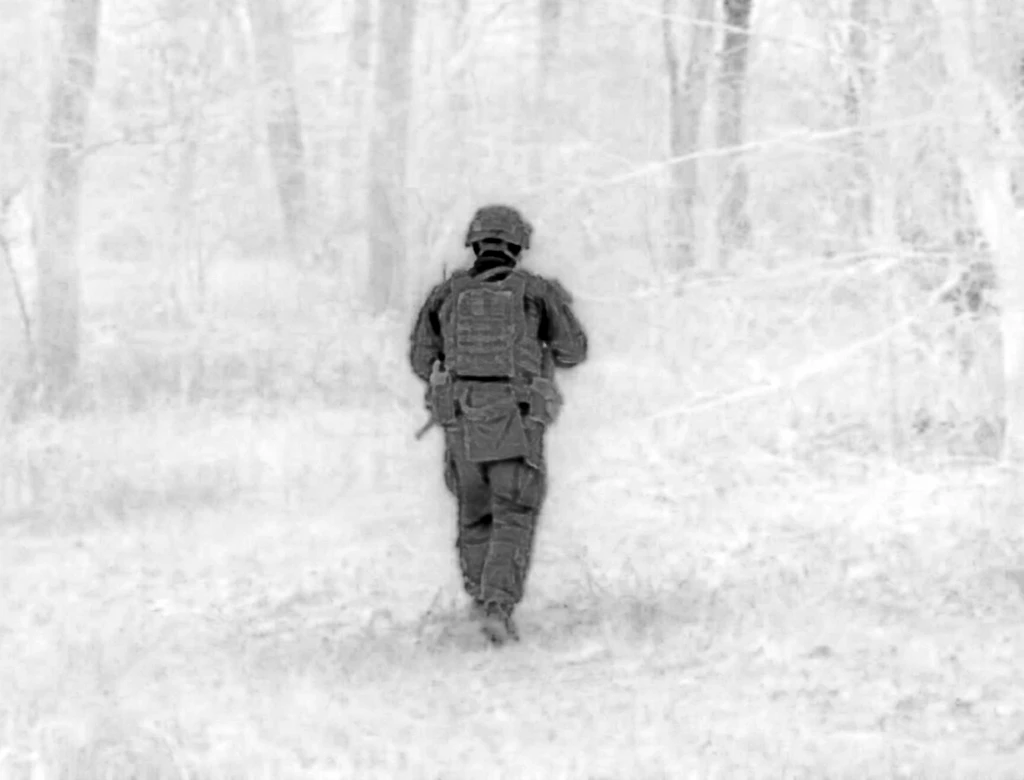

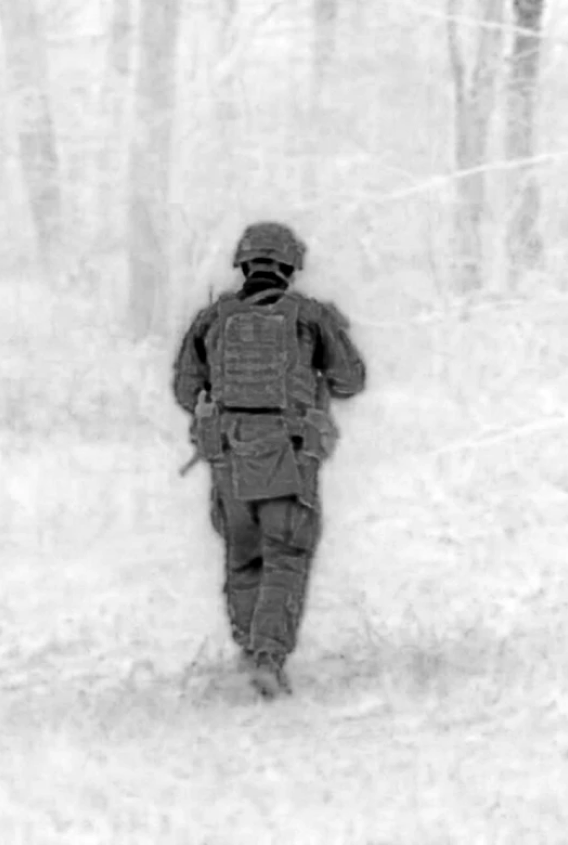

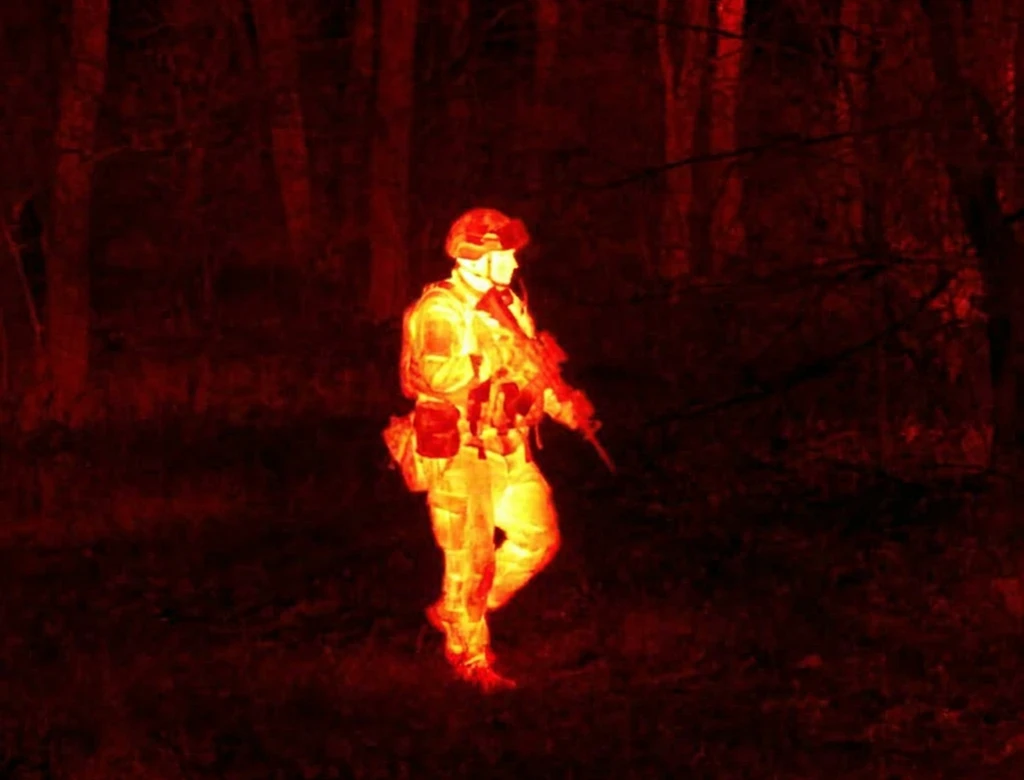

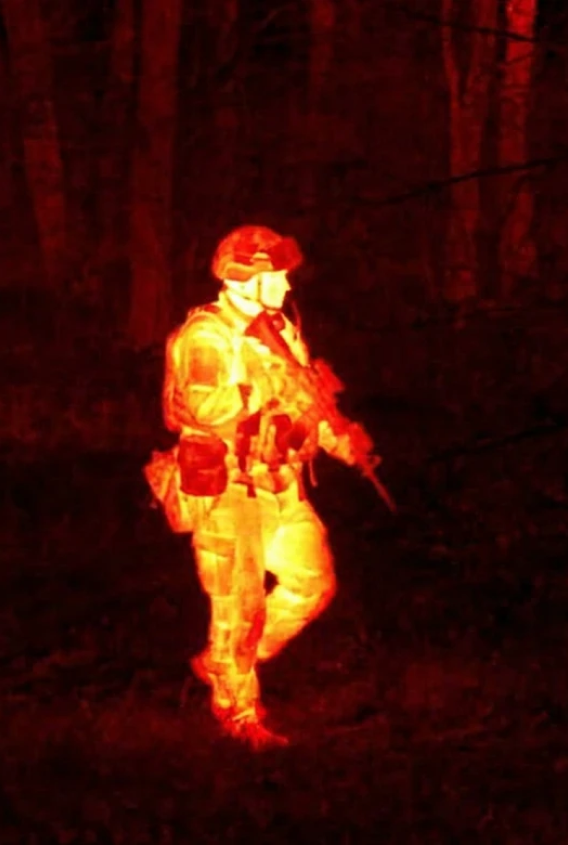

Sees Through Fog, Foliage & Haze
The TTM-14 enhances visibility through fog, foliage and haze, revealing hidden targets and giving operators a tactical edge in shifting light conditions — day or night.

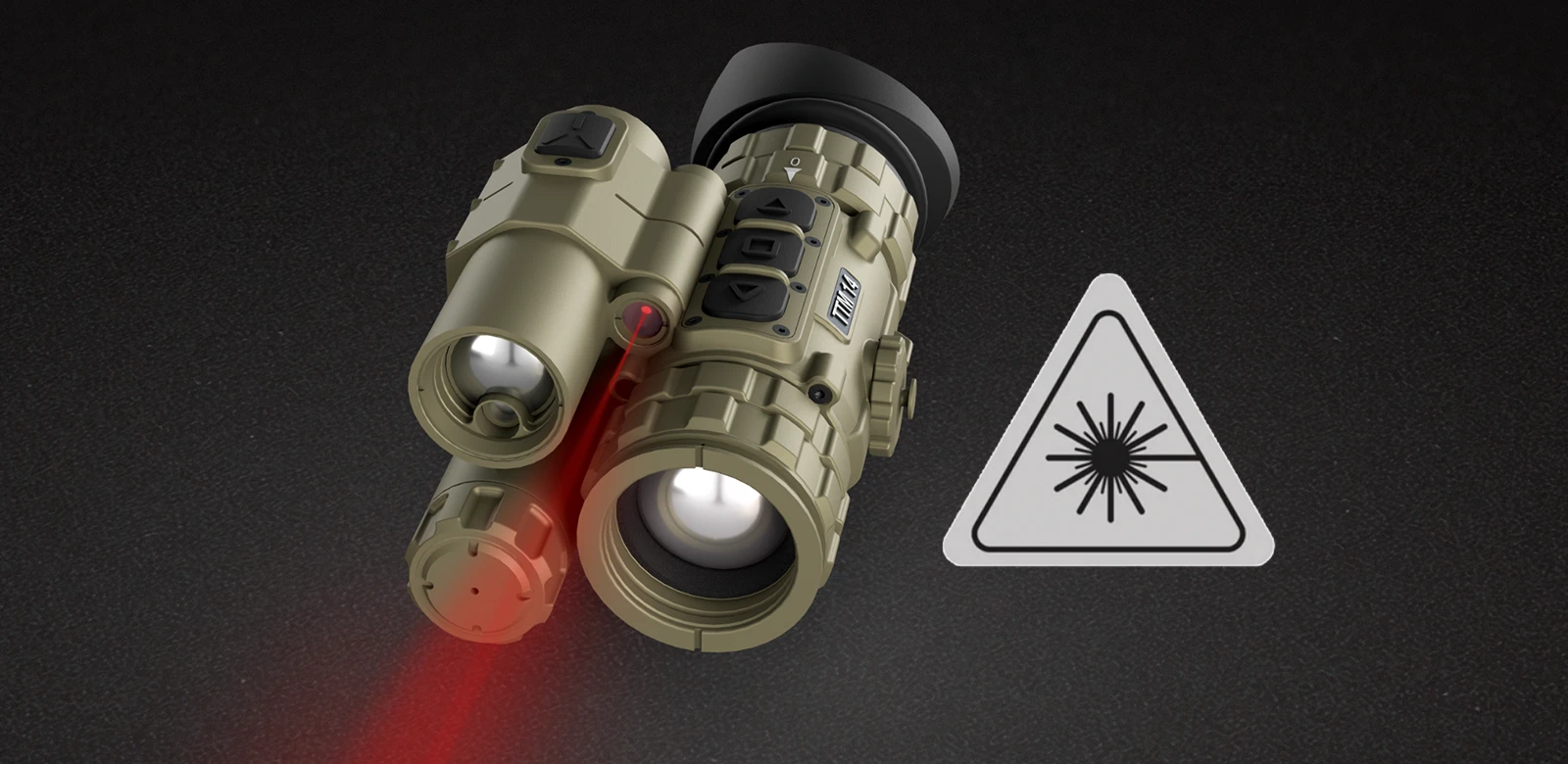

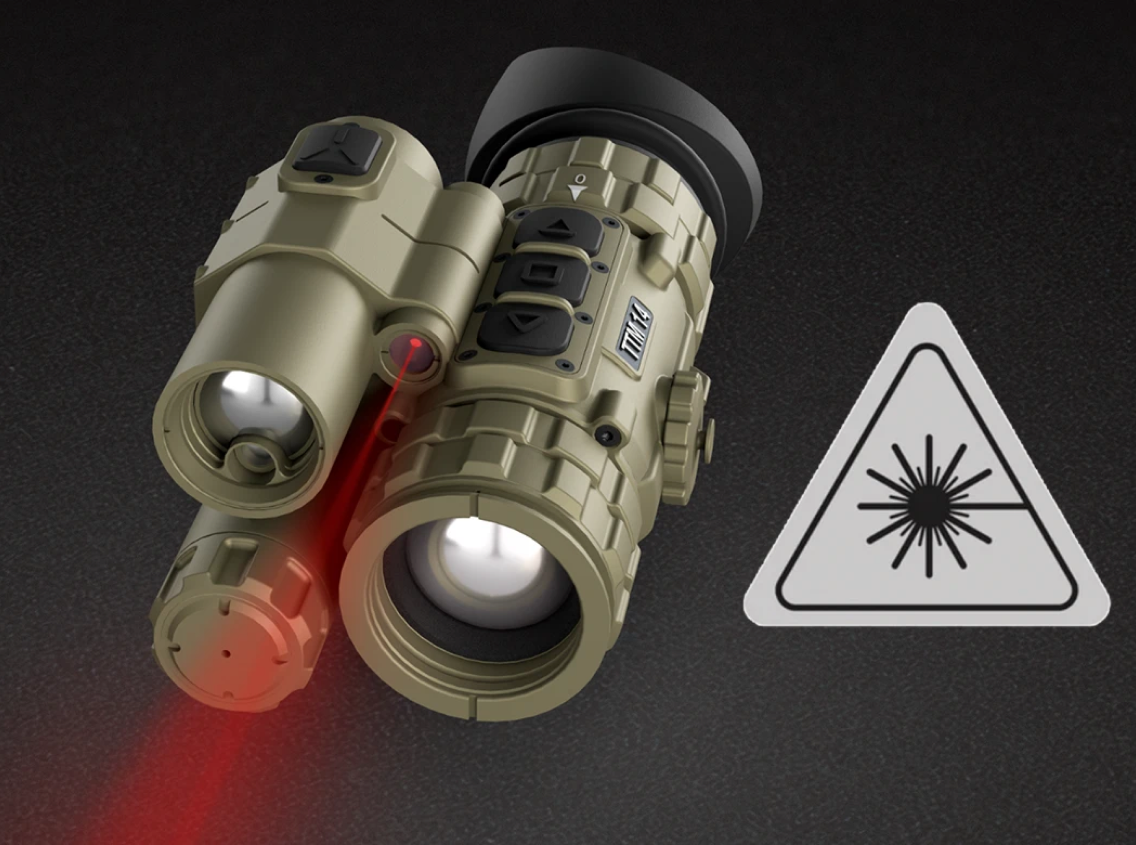

IR Laser Pointer
An integrated 850 nm Class 1 eye-safe IR pointer lets the thermal TTM detect targets invisible to teammates on image-intensified night vision — locate a target and highlight it for the rest of the team.
Modes of Operation
Deploy it in the hand or on the helmet.

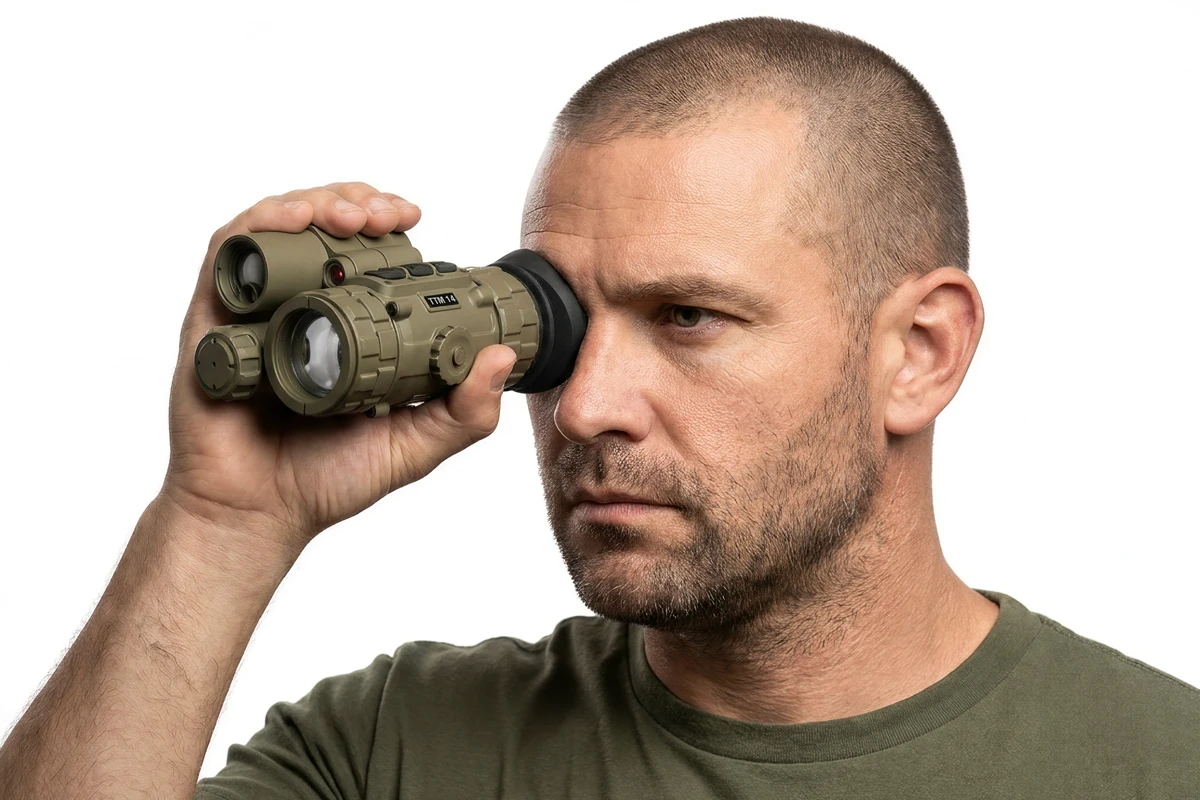

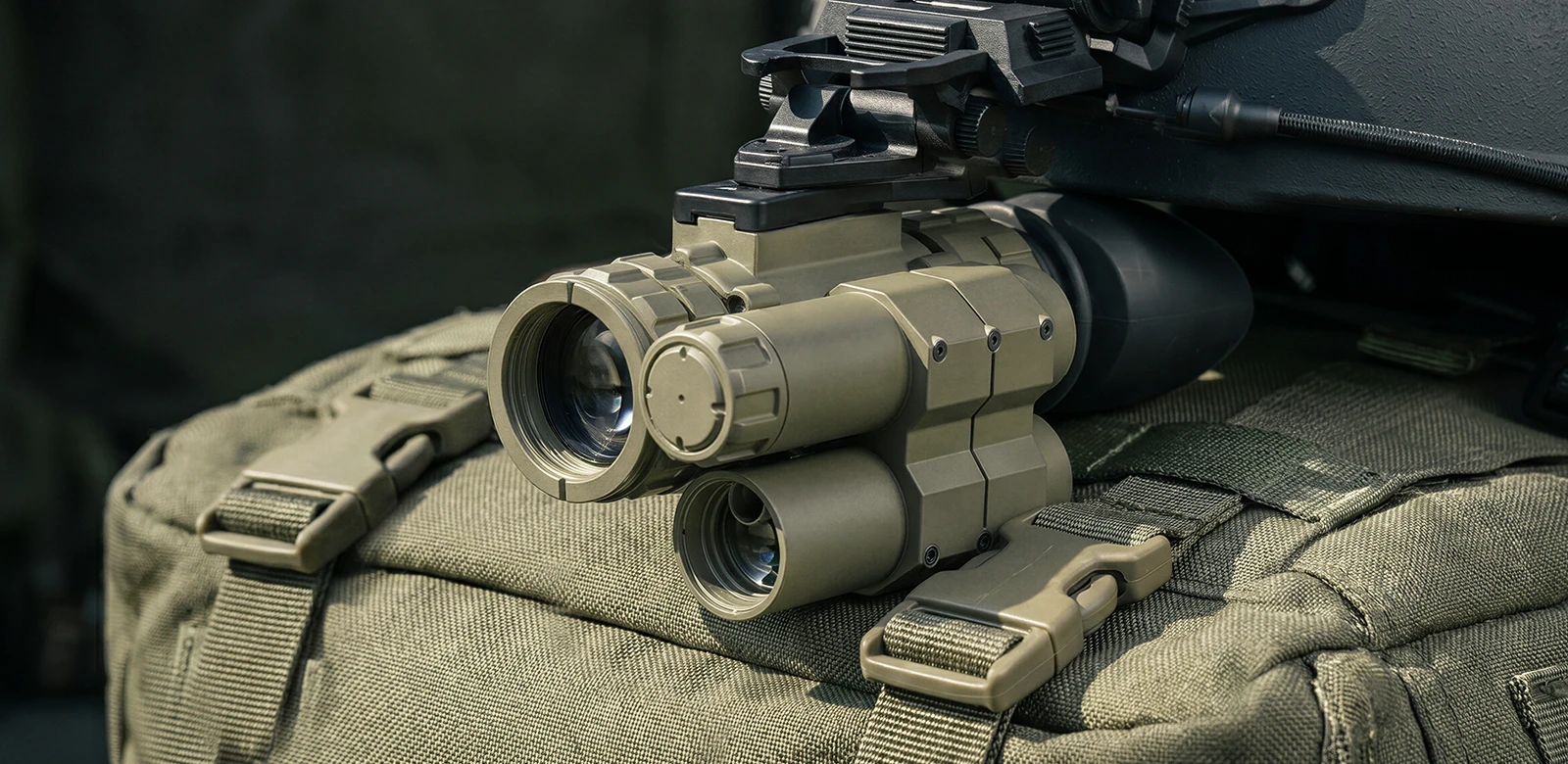

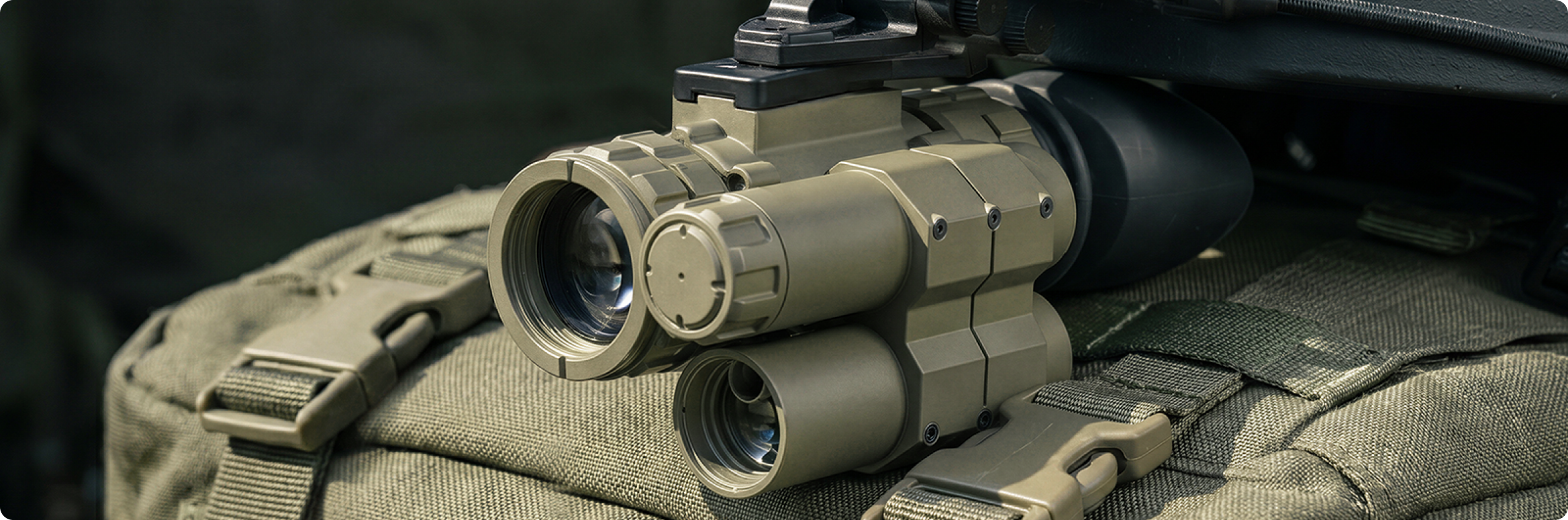

Handheld Monocular

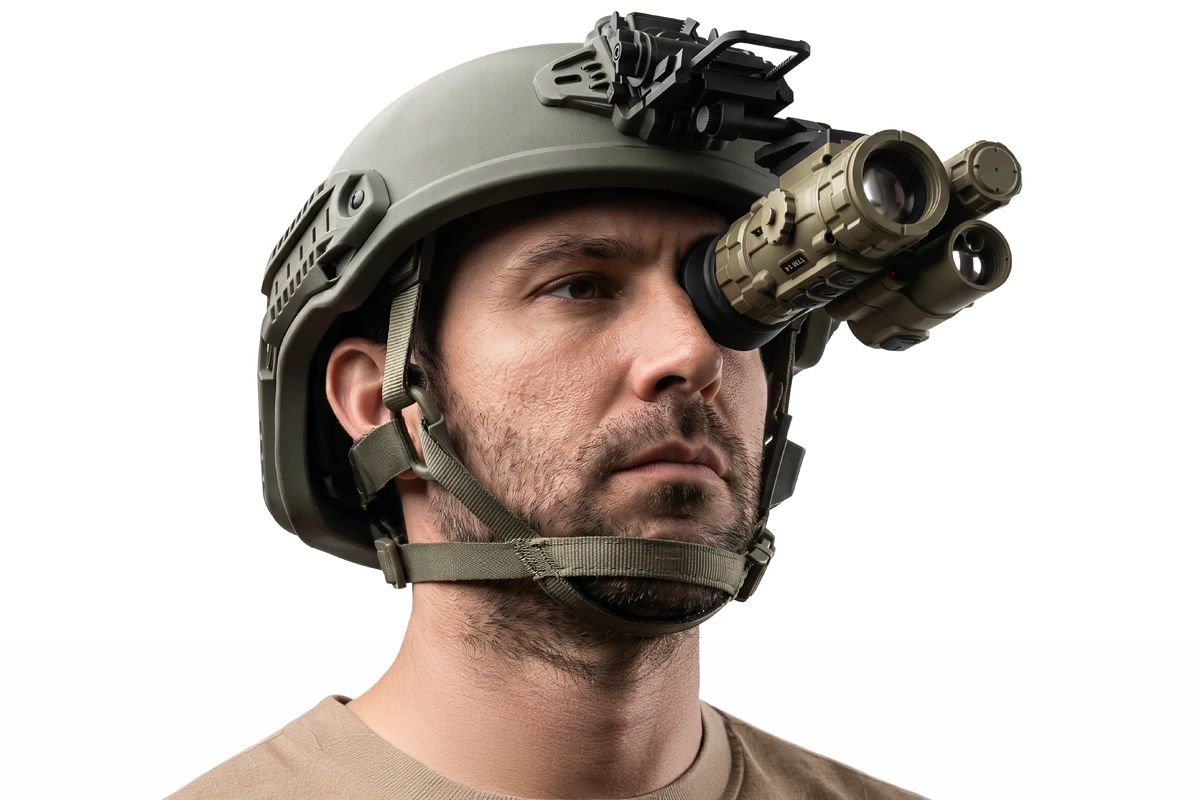

Helmet-Mounted
Full Specifications
| Model | TTM-14 |
|---|---|
| Modes of operation | Monocular · helmet mountable |
| Thermal sensor | 12-micron · 640×480 |
| Sensitivity (NETD) | <25 mK |
| Objective lens | 25 mm · F1.0 |
| Focus range | 0.25 m – ∞ |
| Magnification | 1× |
| Field of view | 22.2° × 16.6° |
| Diopter adjustment | −3 to +3 dpt |
| Exit pupil | 20 mm |
| Eye relief | Unlimited |
| Laser rangefinder | 1000 y/m (LRF version) |
| IR laser pointer | 850 nm · Class 1 eye-safe |
| Recording | Video & photo to internal memory (64 GB) |
| Additional sensors | Compass · accelerometer · gyroscope |
| Power | 1× CR123 or 1× 18650 (rechargeable) |
| Battery life | <3 h (CR123) · 7+ h (18650) |
| Mount | NVG dovetail shoe |
| IP rating | IP67 |
| Dimensions | 100 × 75 × 60 mm |
| Weight | 300 g (350 g LRF) |
| Compliance | MIL-STD-810 · MIL-STD-461 (EMC) |
Export-Controlled · Government Channel
Spec It to Your Mission
The TTM-14 may be ITAR/EAR-controlled and is sold to authorized buyers. Request a quote or a capability briefing on the TTM-14.
