RM3100 Precision
Industrial PNI RM3100 sensor (USA) with 13 nT resolution and isolated coils for a stable, high-resolution heading.
Sensors
MagCore CAN
SKU · AAD-MAGCORE-CAN · RM3100

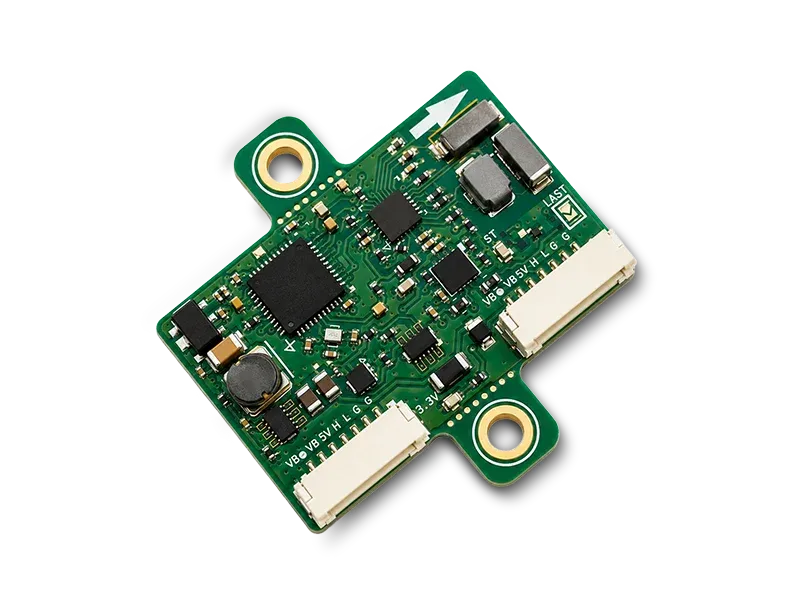

A high-precision RM3100 compass on the CAN bus. It daisy-chains straight onto the AAD CAN backbone over a single cable and mounts clear of motor and ESC EMI — for a clear heading even on high-current multirotors where other magnetometers lose the plot.
Key Advantage
Industrial-grade RM3100 with isolated coils — high noise immunity and a clear heading even on multirotors where motors defeat other magnetometers.
Highlights
Core specs and the combat-grade features that set MagCore CAN apart.
- RM3100 (PNI, USA)
- CAN · DroneCAN
- 13 nT
- 7–34V
- 2 g
Single-Cable Daisy-Chain
CAN / DroneCAN node joins the shared AAD backbone — daisy-chain it on with one cable through its dual CAN connectors.
EMI Immunity
Isolated coils plus a digital CAN bus shrug off motor and ESC noise that swamps other magnetometers on high-current builds.
FC7 Compass Return
The recommended magnetometer for the BattleCore FC7 “compass return without GPS” feature in EW-contested airspace.
Full Specifications
Complete technical data, connection interfaces, and package contents (MagCore CAN variant).
| Sensor | RM3100 · PNI Sensor (USA) |
|---|---|
| Interface | CAN · DroneCAN |
| Resolution | 13 nT |
| Input power | 7–34 V (2S–8S, straight from the battery) |
| Dimensions | 35 × 24 mm · ~7.15 mm |
| Mounting | 2× Ø3.2 mm |
| Weight | 2 g |
| Compatibility | ArduPilot |
Built For
An external compass for noisy, contested platforms — wherever a clean heading on the CAN bus matters most.
High-Current Multirotor
Clear heading despite heavy motor draw
FPV & Interceptor
Agile strike and interceptor builds
Fixed-Wing UAV
Long-endurance & ISR airframes
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on MagCore CAN lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
How is MagCore CAN different from the I²C MagCore?
Same RM3100 precision, but as a DroneCAN node on the shared CAN bus (7–34 V, 2S–8S straight from the battery) with two connectors for daisy-chaining — one fewer dedicated port on the flight controller.
What is MagCore CAN compatible with?
MagCore CAN is built to run as one system on the AAD stack — it pairs with BattleCore FC7, NavCore DualBand, SensCore and MagCore.
How does MagCore CAN connect?
It connects via CAN · DroneCAN node on the shared CAN bus; Two CAN connectors for daisy-chaining; Pinout: CAN_H · CAN_L · VBAT · 5V · GND.
What's included in the box?
1× MagCore CAN module · CAN daisy-chain cabling.
Is MagCore CAN NDAA-compliant and made in the USA?
Yes — MagCore CAN is NDAA-compliant and made in the USA.
