Triple-IMU Redundancy
Three IMUs and dual barometers — a single sensor failure never compromises flight stability.
Flight Controllers
BattleCore FC7
SKU · AAD-FC-7 · H7-Basic V3 (8S)
The flagship autopilot of the AAD stack — STM32H743 with full ArduPilot support, triple-IMU redundancy, dual-payload control, and industrial output protection. Built to keep flying in GPS-denied, EW-contested airspace.
Key Advantage
Keeps flying when comms and GPS are gone — triple sensor redundancy and compass-guided return without yawing the copter, for EW-contested airspace.
Highlights
Core specs and the combat-grade features that set BattleCore FC7 apart.
- STM32H743 · 2MB
- 3× IMU · 2× Baro
- 4–8S (max 34V)
- 6× UART + 2× CAN
- 12× PWM
- ArduPilot
Compass Return Without GPS
Returns home by compass at a set pitch — without yawing the copter — when satellites are jammed or lost.
Ballistic Aiming Assistant
An OSD aiming reticle offset by pitch/roll within the camera FOV, on both analog and digital FPV.
Anti-EW Video Switching
Switches the VTX channel synchronously from a transmitter switch to dodge electronic-warfare video jamming.
Full Specifications
Complete technical data, connection interfaces, and package contents (H7-Basic V3 board).
| MCU | STM32H743 · 2 MB flash — full ArduPilot |
|---|---|
| IMU (3×) | ICM45686, ICM45686, BMI270 |
| Barometer (2×) | DPS368, DPS368 · I²C 0x77 |
| Input power | VBAT 4–8S (max 34 V) |
| Voltage sensing | ADC up to 12S |
| BEC | 5V 4A (servo/PWM) · 12V 2A (relay-switched) |
| PWM / DSHOT | 12× PWM in 3 DSHOT groups (Group 3 = PWM only) |
| Operating temp. | −20 … +55 °C |
| Dimensions | 80 × 40.5 mm · profile ~10.3 mm |
| Mounting | 30.5 × 30.5 mm · 4× Ø4 mm |
| Warranty | 90 days |
Built For
A versatile autopilot across every platform ArduPilot supports — from FPV strike drones to fixed-wing ISR.
FPV & Interceptor
Agile strike and interceptor builds
Multirotor
Quad, hex & octo platforms
Fixed-Wing UAV
Long-endurance & ISR
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on BattleCore FC7 lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
What MCU and sensors does BattleCore FC7 use?
An STM32H743 with 2 MB flash running full ArduPilot, backed by triple IMUs (ICM45686 ×2, BMI270) and dual DPS368 barometers for redundancy.
What is BattleCore FC7 compatible with?
BattleCore FC7 is built to run as one system on the AAD stack — it pairs with NavCore DualBand, MagCore CAN, PowerCore EX and PowerRail 14S.
How does BattleCore FC7 connect?
It connects via USB · SD card; 1× UART with RTS/CTS (SERIAL1); 6× UART · 2× CAN.
What's included in the box?

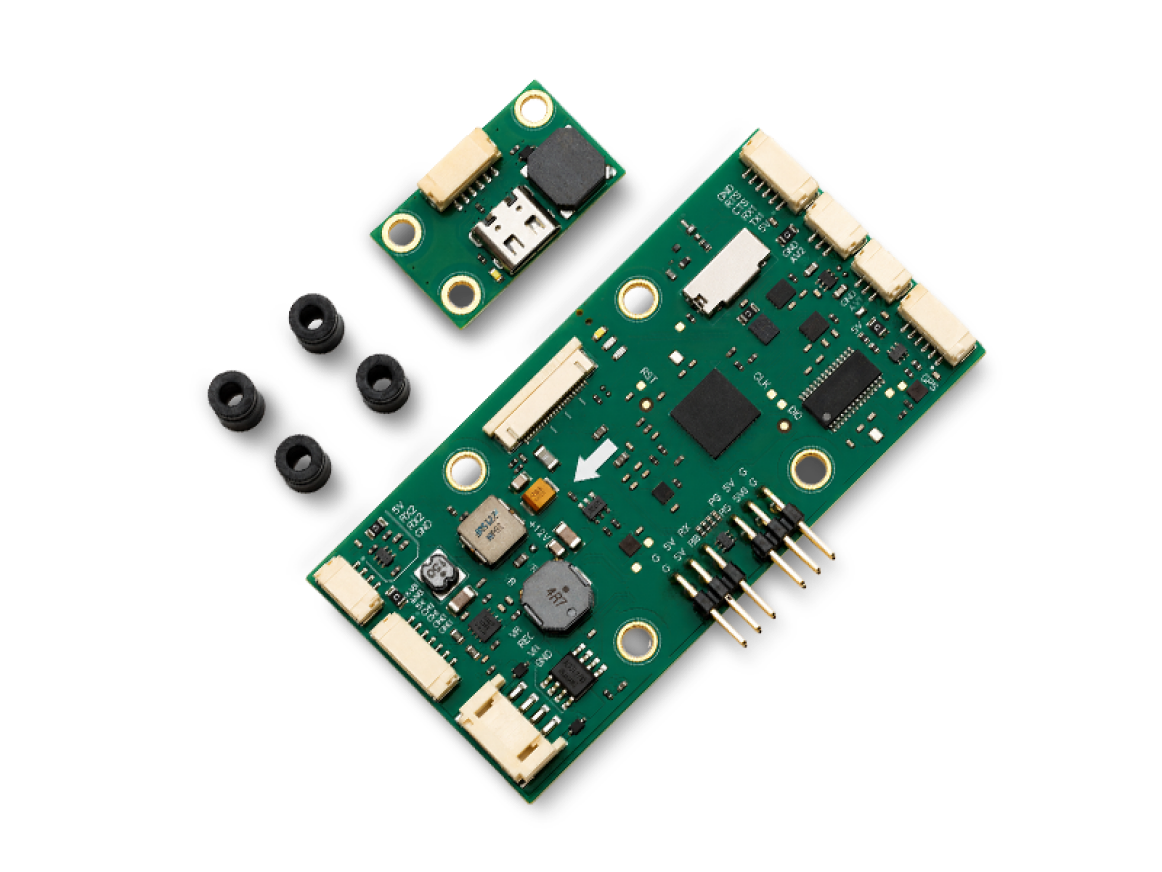

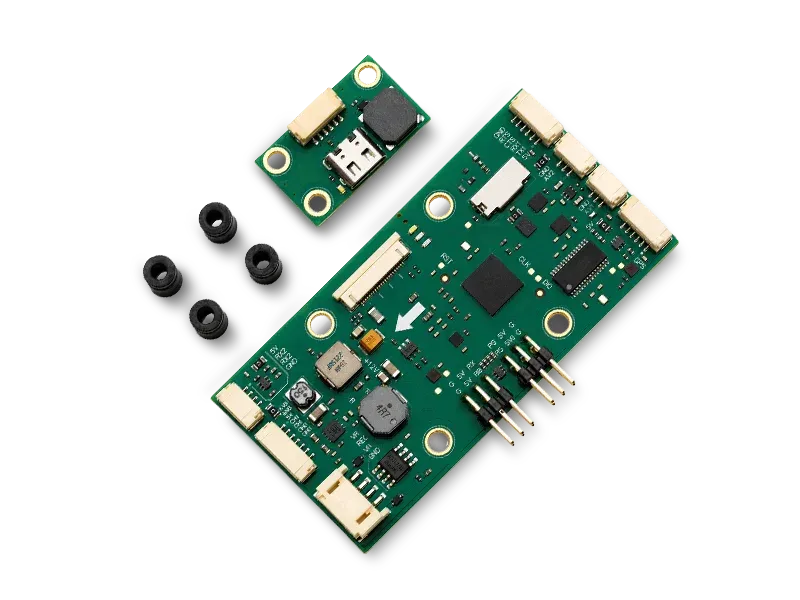

1× H7-Basic V3 · 1× USB & Buzzer board · 4× damper grommets · JST-GH 1.25 mm cable set (3/4/5/6/7/8-pin).
Is BattleCore FC7 NDAA-compliant and made in the USA?
Yes — BattleCore FC7 is NDAA-compliant and made in the USA.
