Six Configs, One SKU
A single AAD-SENSCORE part number ships in six factory configurations of GNSS, compass, airspeed and barometer.
Sensors
SensCore
SKU · AAD-SENSCORE · Module CAN SENS

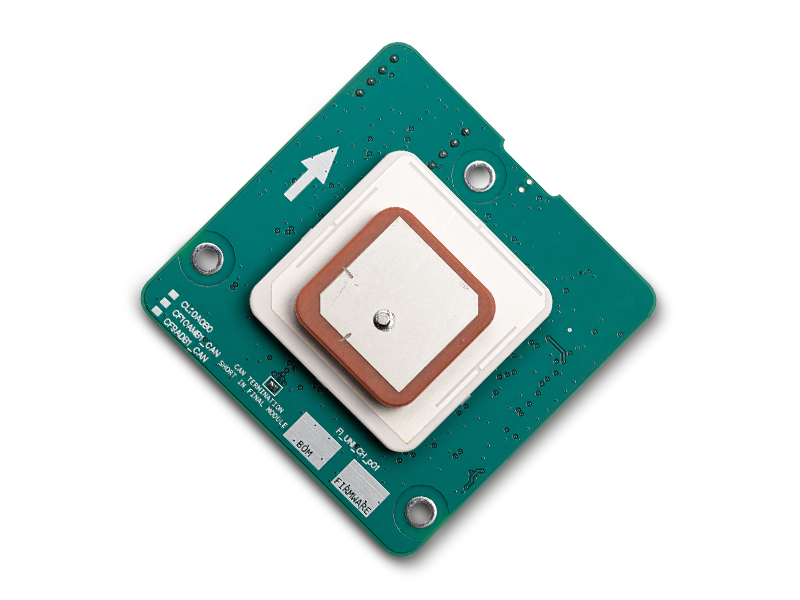

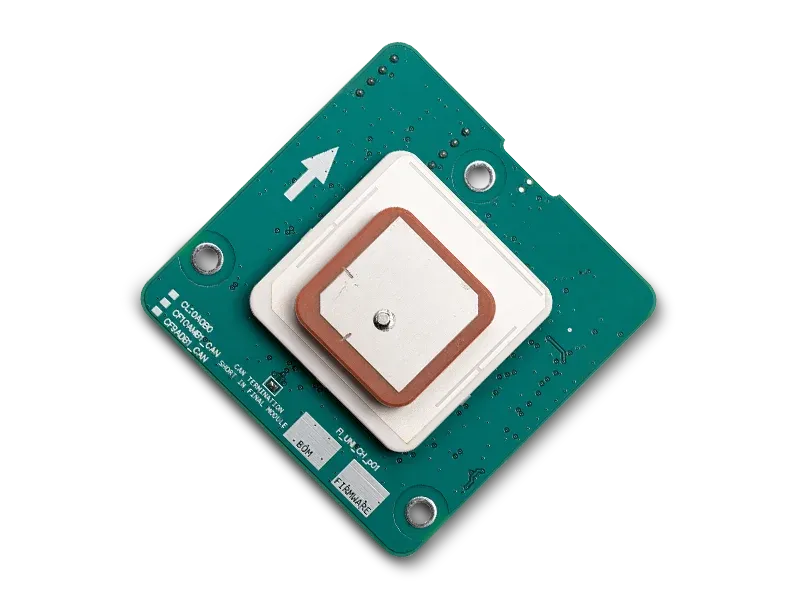

One CAN sensor hub — six factory configurations combining GNSS, compass, airspeed, and barometer in a single module. Critical flight and navigation sensors integrated on one board, streaming data to the controller over CAN.
Key Advantage
Four sensors worth of capability in one CAN module — fewer parts to source, wire and certify, and faster integration.
Highlights
Core specs and the integration advantages that set SensCore apart.
- GNSS L1+L5
- RM3100
- Airspeed ≤550
- BMP390
- 5–34V · CAN
Dual-Band GNSS
L1+L5 dual-band reception for faster, more robust positioning — L1 at 4.5 dBi, L5 at 2.1 dBi antenna gain.
Industrial RM3100 Compass
High-stability RM3100 magnetometer for reliable heading, including compass-guided return without GPS.
Airspeed to 550 km/h
Optional airspeed sensing (MS5525 or DLVR-L10) measures up to 550 km/h for fixed-wing and high-speed platforms.
Full Specifications
Complete technical data, connection interface, and package contents.
| GNSS | Dual-band (L1+L5) |
|---|---|
| Magnetometer | Industrial RM3100 |
| Airspeed | up to 550 km/h |
| Barometer | BMP390 |
| Power | 5–34V (VBAT 4–8S, max 34V); 5V generated on the controller |
| Speed / signal | up to 1 Mbit/s, differential, CAN protocol |
| Antenna gain | L1 — 4.5 dBi · L5 — 2.1 dBi |
| Firmware | ArduPilot |
Built For
A consolidated sensor hub for platforms that demand reliable navigation with minimal wiring.
Fixed-Wing UAV
Airspeed-equipped configs for cruise flight
VTOL & Transition
Hybrid lift + cruise airframes
Multirotor ISR
Compass-stable surveillance platforms
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on SensCore lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
What sensors are combined in SensCore?
A single CAN module combining dual-band (L1+L5) GNSS, an industrial RM3100 magnetometer, airspeed up to 550 km/h and a BMP390 barometer — four sensors' worth of capability in one node.
What is SensCore compatible with?
SensCore is built to run as one system on the AAD stack — it pairs with BattleCore FC7, NavCore DualBand, MagCore CAN and WindCore CAN.
How does SensCore connect?
It connects via CAN (DroneCAN) — joins the shared bus; Dual CAN connectors; VBAT 4–8S · 5V · GND.
What's included in the box?
1× SensCore module (selected configuration) · CAN cable set.
Is SensCore NDAA-compliant and made in the USA?
Yes — SensCore is NDAA-compliant and made in the USA.
