Ultra HD 4K + Dual Core
4K Ultra HD sensor with a dual-core processor for rich, vivid color and no resolution loss up to 10× magnification.

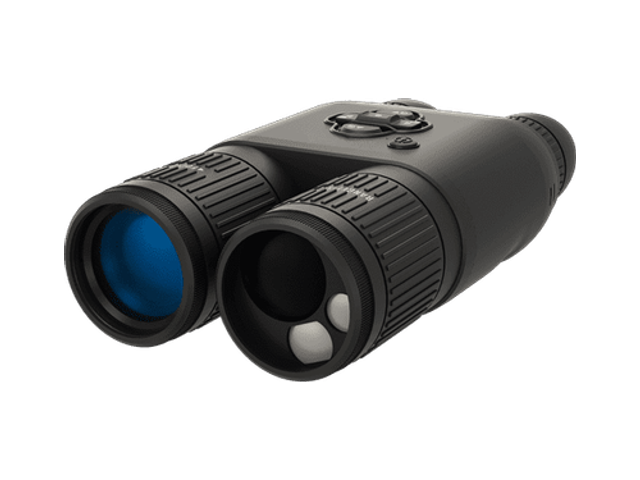

Day/Night Digital · 4K Binocular + LRF
DNBN-4
SKU · ATN DNBN-4 4-16x
A 4K Ultra HD day/night binocular with dual-core processing, a built-in laser rangefinder to 1,000 yards, BIX ballistic-data exchange, a battle-management and tactical-navigation app over Bluetooth, and Full HD 1080p video.

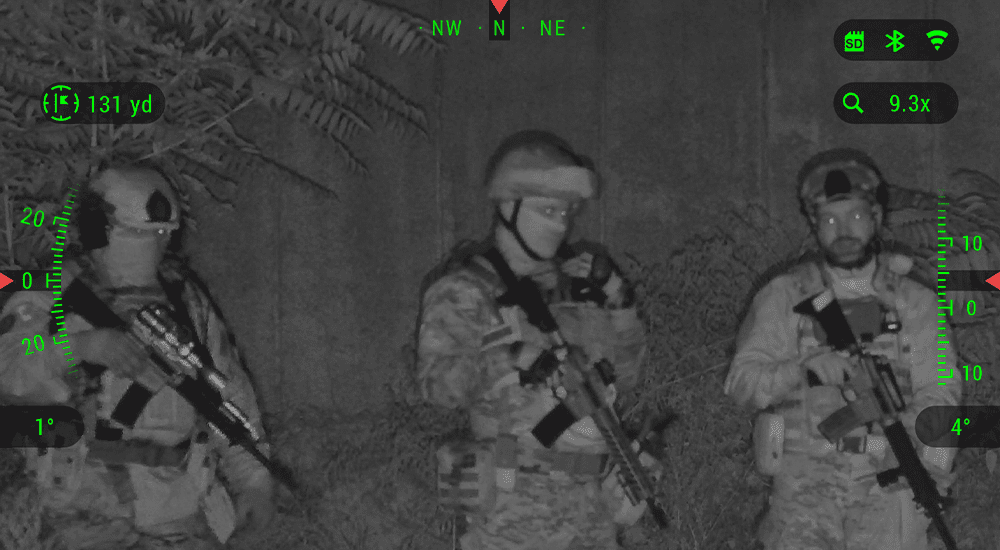

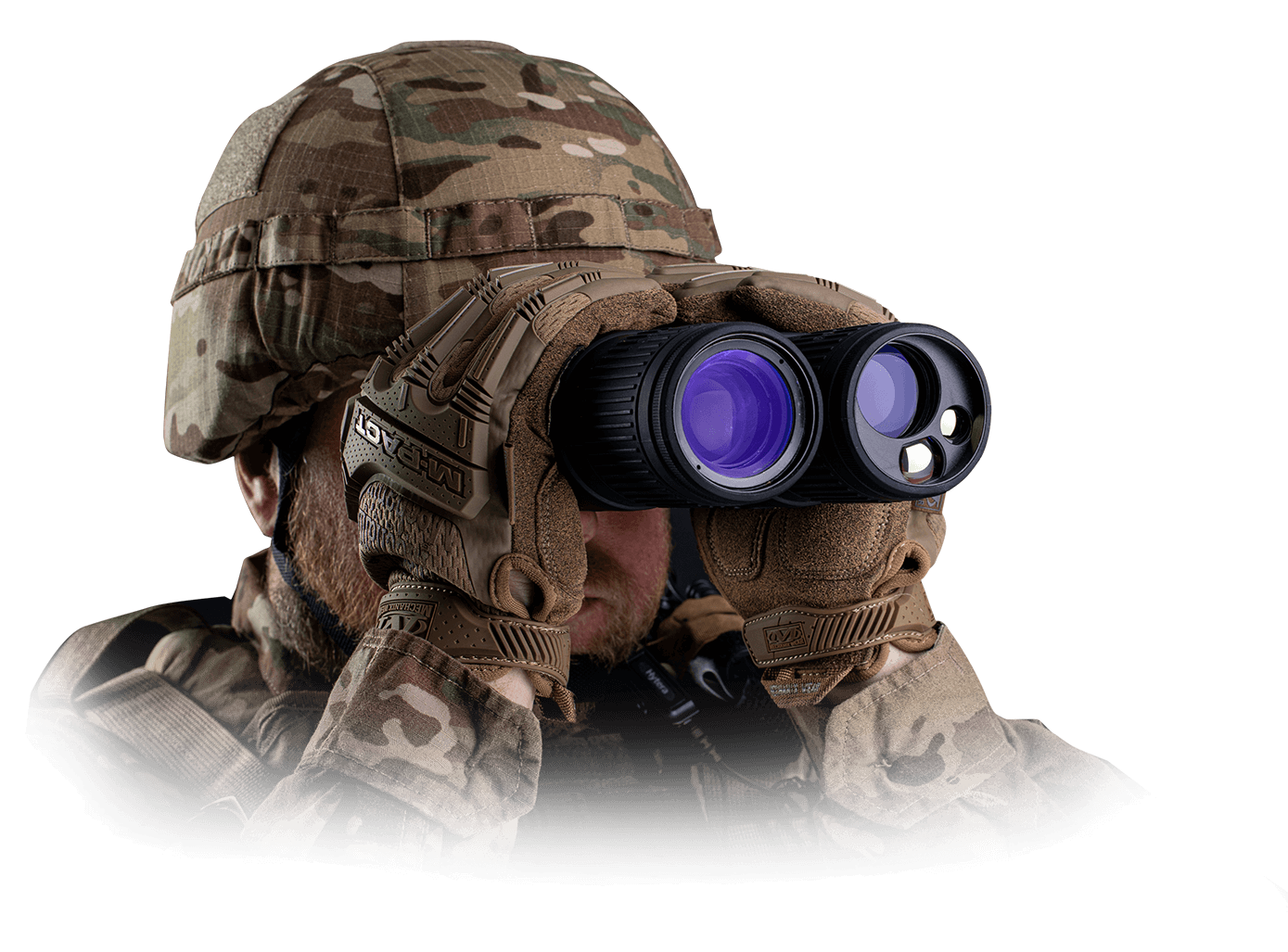

Key Advantage
Day/night 4K imaging plus a built-in rangefinder and BIX — range a target and push the firing solution straight to a paired ATN scope, then mark it on the tactical map.
Highlights
Core specs and the features that set the DNBN-4 apart.
- 3864×2218 4K
- 4–16×
- FOV 6°
- LRF 5–1000 m
- 1080p video
- WiFi · Bluetooth
Enhanced Night Vision Mode
ATN Obsidian Core night-vision processing delivers crisp low-light imaging.
Laser Rangefinder
Built-in LRF ranges 5–1000 m to ±1 m, day or night.
BIX Ballistic Exchange
Shares ranging and ballistic data with paired ATN scopes — no extra apps.
4K3864×2218 Sensor
4–16×Magnification
5–1000 mLaser Rangefinder
1080pVideo · up to 120 fps
Built-In Capabilities
A 4K dual-core day/night binocular with ranging, ballistics and tactical mapping built in.

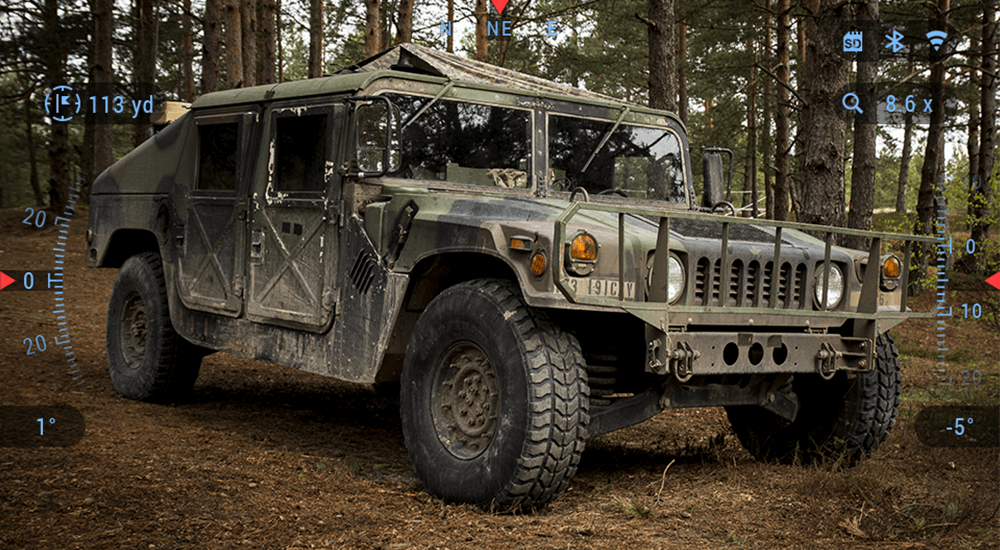

Ultra HD 4K + Dual Core
4K sensor with a dual-core processor — rich color and no resolution loss up to 10× zoom.

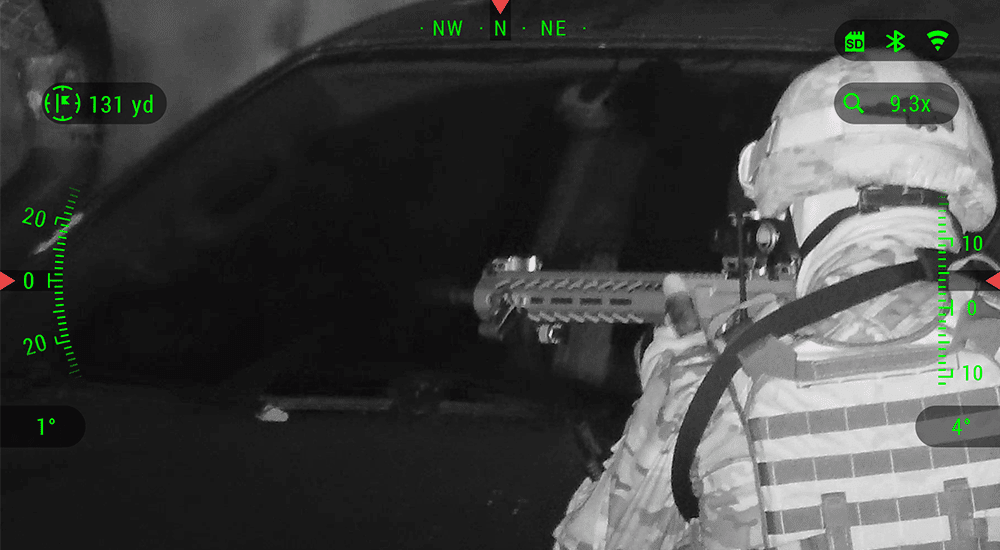

Obsidian Night Vision
Advanced night-vision mode delivers crisp low-light imaging.

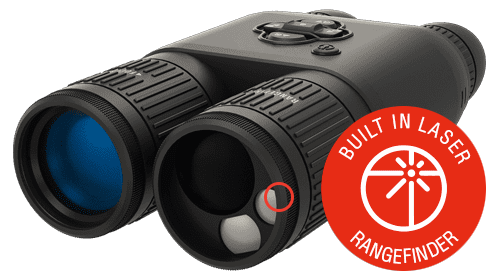

Laser Rangefinder
Built-in LRF ranges 5–1000 m to ±1 m, day or night.

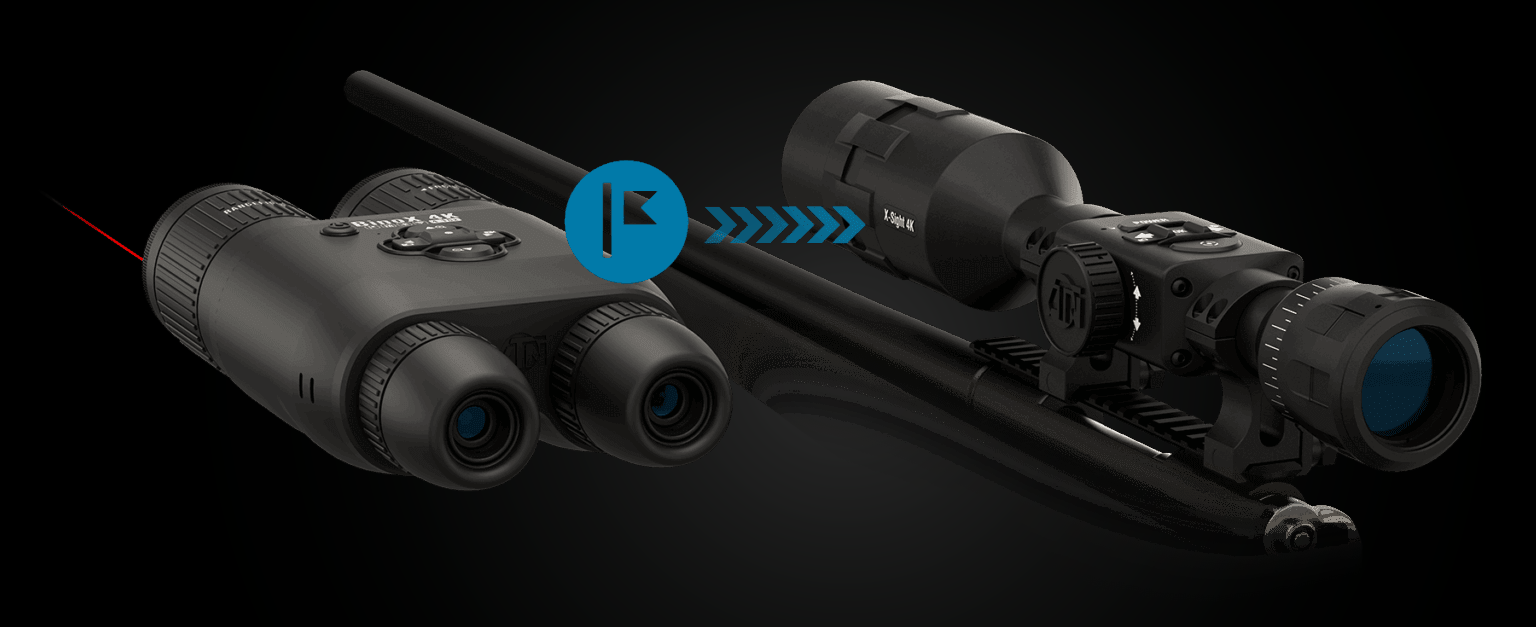

BIX Ballistic Exchange
Shares ranging and ballistic data with paired ATN scopes — no extra apps.

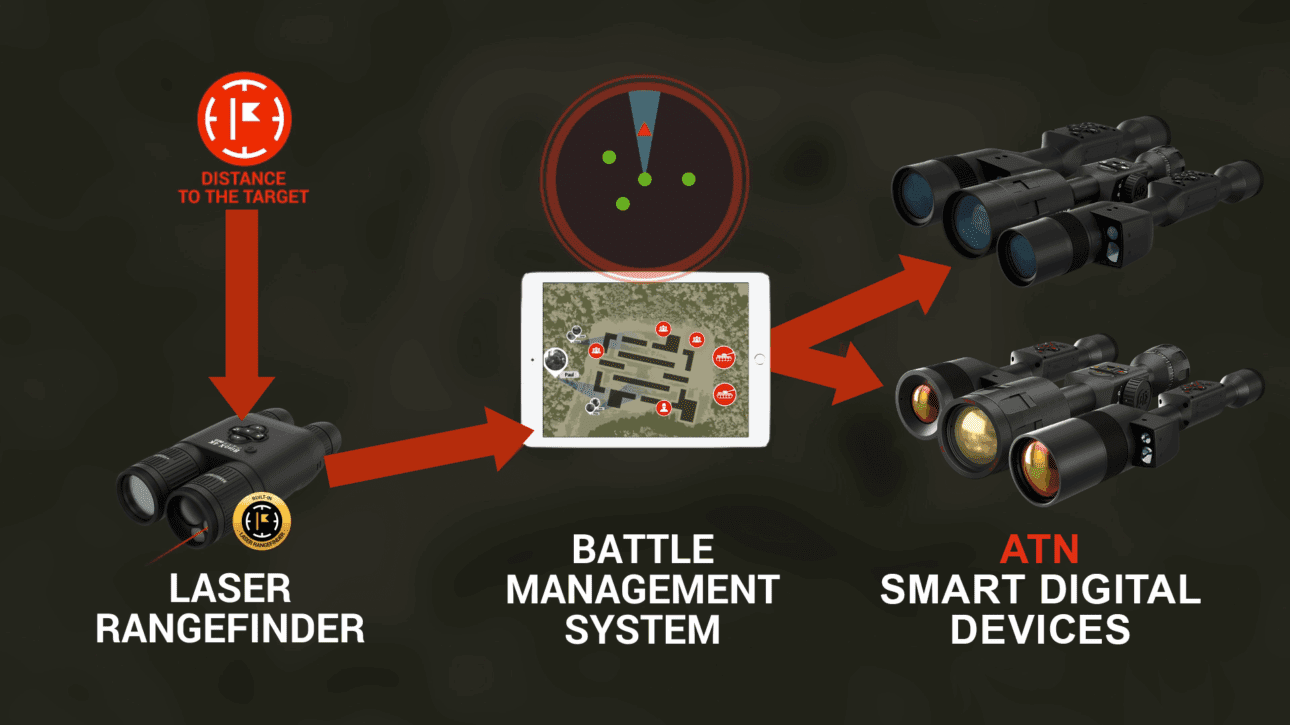

Battle Management + Tactical Nav
Marks ranged targets on a map over Bluetooth — works without a SIM or mobile internet.

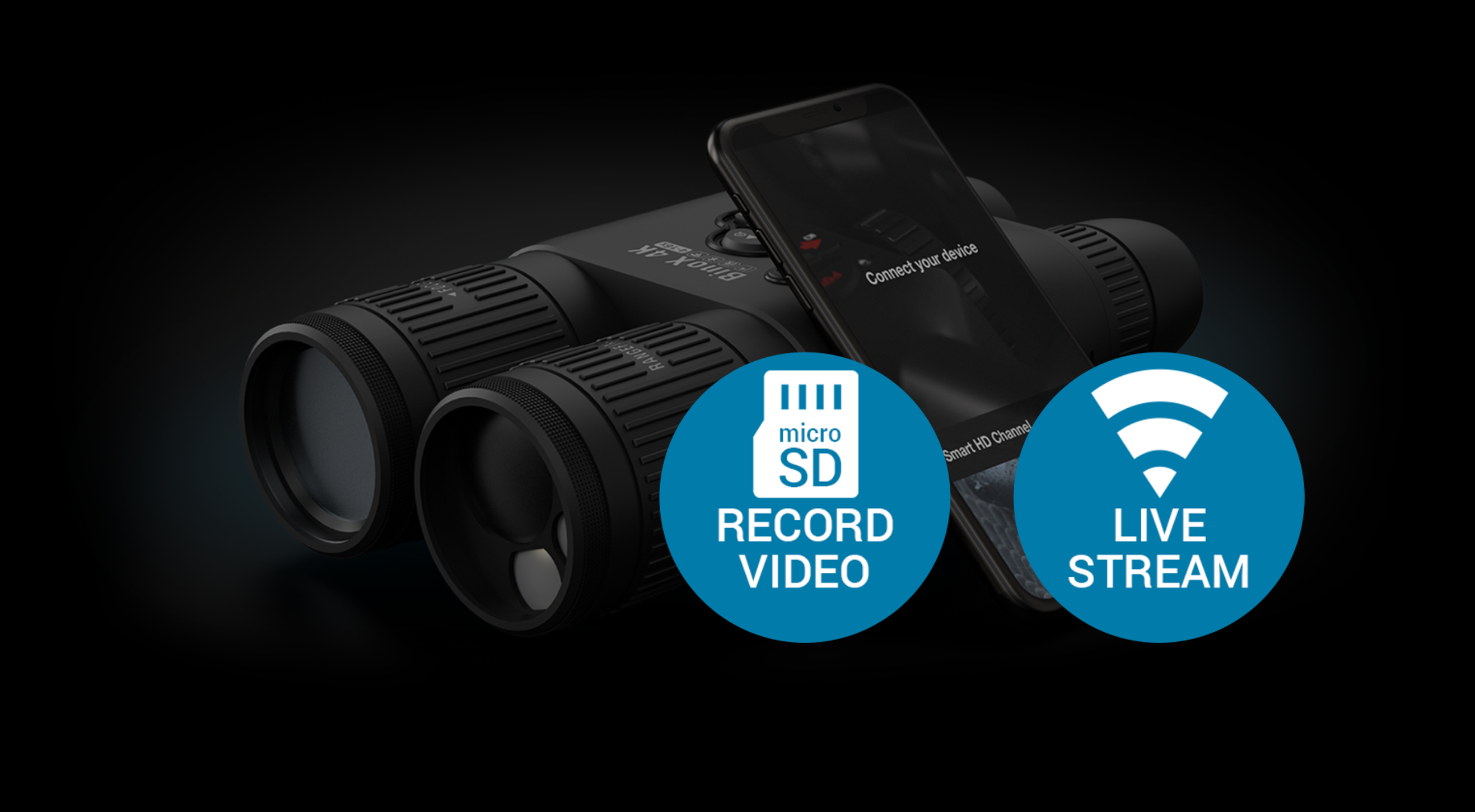

Dual-Stream + Built-in IR
Live-stream and record at once; an improved IR illuminator works in total darkness.
Full Specifications
Complete technical data, smart features, and connectivity.
| Model | ATN DNBN-4 4-16× |
|---|---|
| Sensor | ATN 4K M265 · 3864×2218 |
| Magnification | 4–16× |
| Field of view | 6° · 220 ft @ 1000 yd |
| Objective lens | 40 mm |
| System resolution | 600 lp/mm |
| Display | 1280×720 ×2 |
| Interpupillary adj. | 60–70 mm |
| Eye relief | 10–30 mm |
| Focus range | 10 ft – ∞ |
| Laser rangefinder | Yes · 5–1000 m · ±1 m |
| IR illuminator | Built-in |
| Video record | 1080p · 30/60/120 fps |
| Storage | microSD 4–64 GB |
| Connectivity | WiFi · Bluetooth (iOS & Android) |
| Sensors | 3D accel/gyro/mag · e-barometer · e-compass |
| Battery life | 15+ h (Li-ion) |
| Operating temp. | −28 … +48 °C |
| Dimensions | 240 × 128 × 67 mm |
| Weight | 1.12 kg |
| Warranty | 2 years |
Government Channel
Spec It to Your Mission
Government-channel configurations differ from commercial variants and detailed options are set per order. Request a quote or a capability briefing on the DNBN-4.
