Direct FC7 Stack
Matching 30.5 × 30.5 mm footprint mounts on top of BattleCore FC7 to minimize cable runs.
Power & Servo
PowerCore EX
SKU · AAD-POWERCORE-EX

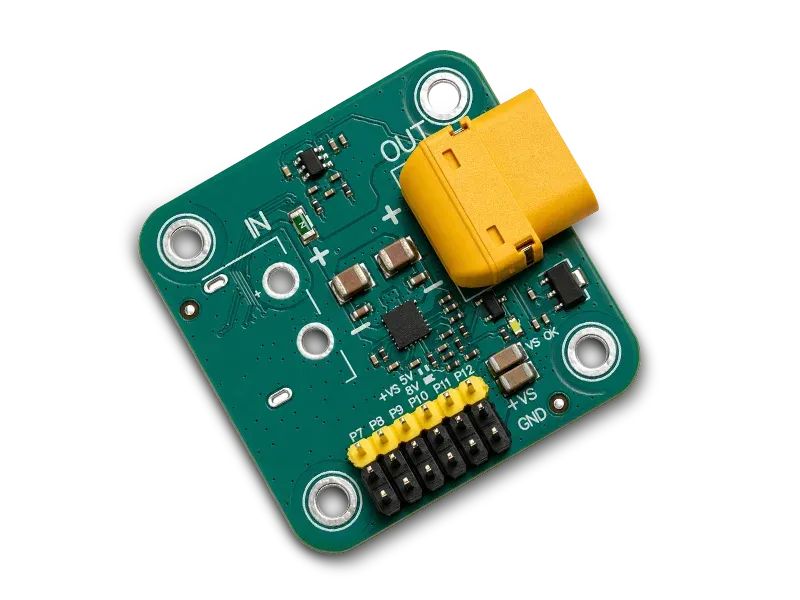

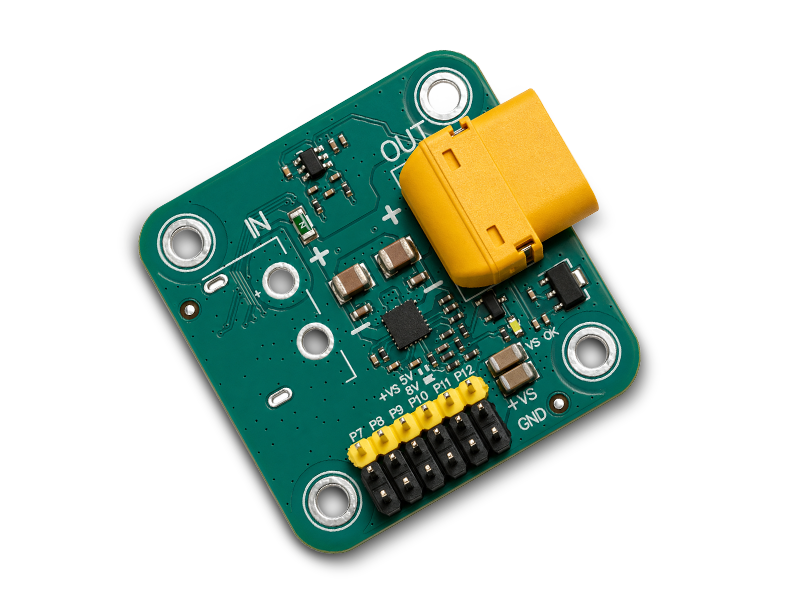

An H7 expansion board that stacks directly on BattleCore FC7 — adding accurate current sensing and a 6-channel servo rail. Selectable 5V/8V output makes it a universal solution for standard and high-voltage servos.
Key Advantage
Stacks directly on BattleCore FC7 (matching 30.5×30.5 mm) — adds accurate current sensing and a 6-channel 5V/8V servo rail with no separate board stack or cable runs.
Highlights
Core specs and the integration features that set PowerCore EX apart.
- Stacks on FC7
- 60–70A cont · 120A pk
- BEC 4A · 5/8V
- 6× Servo
- 30.5×30.5 mm
120A Peak Current Sensing
60–70 A continuous, 120 A peak — accurate energy data to the autopilot for state-of-charge tracking.
6× Servo 5V/8V BEC
Six-channel servo rail with selectable 5V or 8V output for standard and HV servos, no external adapters.
ESD-Protected PWM
Hardened servo outputs — anything over 5V is shunted to GND to protect downstream electronics.
Full Specifications
Complete technical data, connection interfaces, and package contents.
| BEC output | 4 A (5 A peak) |
|---|---|
| Voltage select | 5 V / 8 V |
| Current sensing | 60–70 A continuous · 120 A peak |
| Servo channels | 6× |
| Input | 4–7S (version without XT60 connector) |
| Mounting | 30.5 × 30.5 mm |
| Connectors | XT60 + servo header (included), 22-pin FFC to FC |
Built For
Purpose-built to expand the BattleCore FC7 stack with sensing and servo power for demanding airframes.
FC7-Based Multirotor
Quad, hex & octo on the FC7 stack
Fixed-Wing & VTOL
Airframes driving multiple servos
Compact Integration
Tight stacks with minimal wiring
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on PowerCore EX lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD stack.
Frequently Asked Questions
What does PowerCore EX add to a BattleCore FC7?
It stacks directly on the FC7 (matching 30.5×30.5 mm) via a 22-pin FFC ribbon, adding 60–70 A continuous (120 A peak) current sensing, a 4 A 5V/8V BEC and six servo channels — no separate board stack.
What is PowerCore EX compatible with?
PowerCore EX is built to run as one system on the AAD stack — it pairs with BattleCore FC7, PowerRail 14S, ServoNode x4 and CAN PMU 16S.
How does PowerCore EX connect?
It connects via To FC7 — 22-pin FFC 0.5 mm ribbon (stacks on top); XT60 — battery / ESC power; 6× servo headers (GND, VS, PWM), 5V/8V selectable.
What's included in the box?
1× PowerCore EX board · XT60 connector · pre-installed servo header strip · 22-pin FFC 0.5 mm ribbon to FC.
Is PowerCore EX NDAA-compliant and made in the USA?
Yes — PowerCore EX is NDAA-compliant and made in the USA.
