High-Current BEC
10A continuous and 20A peak straight from the battery — enough headroom for heavy servo loads.
Power & Servo

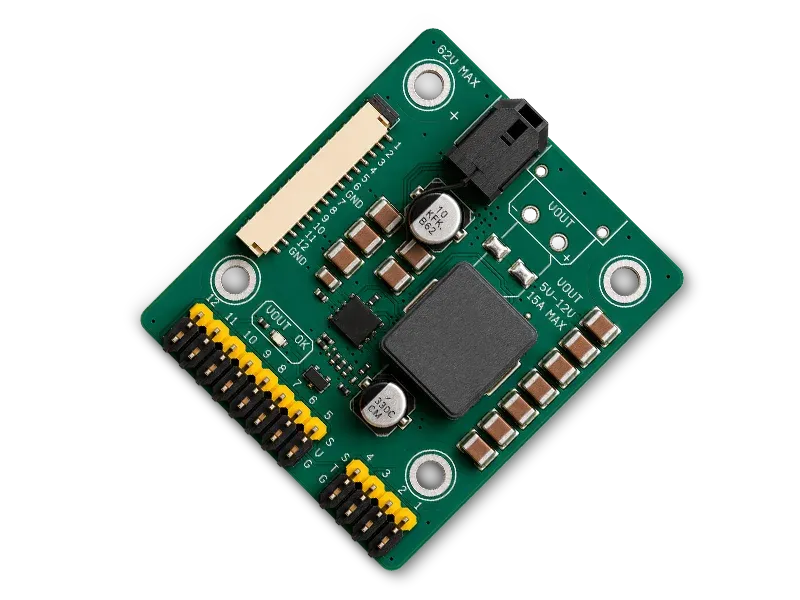

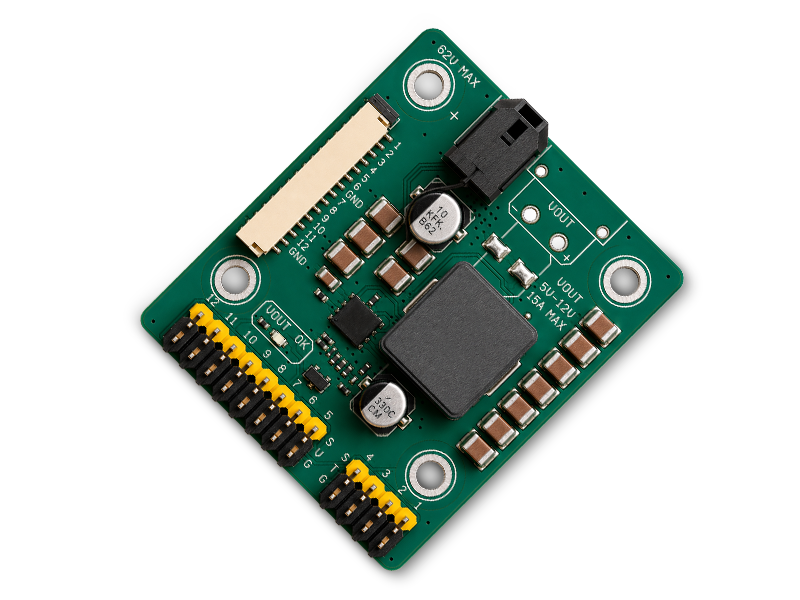

PowerRail 14S
SKU · AAD-POWERRAIL-14S · Servo Rail with BEC
A servo distribution rail with a high-current BEC and protected outputs. Carries up to 12 PWM signals straight from a 4–14S battery and can switch into an ESC-telemetry mode on outputs 1–4.
Key Advantage
Up to 12 PWM channels with a high-current BEC straight from 4–14S — plus an ESC-telemetry mode on outputs 1–4 when used with H7-Basic.
Highlights
Core specs and the combat-grade features that set PowerRail 14S apart.
- 4–14S
- 65V
- 5V/7.4V/8V
- 10A cont · 20A peak
- up to 12 PWM
Selectable Voltage
Output rail switchable between 5V, 7.4V and 8V to match your servos and actuators.
Up to 12 PWM
Carries up to 12 PWM signals from the controller via a single JST-GH 1.25 14-pin link.
ESC Telemetry on Ch 1–4
Outputs 1–4 can switch from supplying power to receiving ESC telemetry when paired with H7-Basic.
Full Specifications
Complete technical data, connection interfaces, and package contents.
| Input | 4–14S / max 65 V |
|---|---|
| Output | 5V / 7.4V / 8V — 10A continuous, 20A peak |
| PWM | up to 12 signals via JST-GH 1.25 14-pin |
| Extra output | VOUT (optional XT30 connector) for external devices |
| Mounting | 30.5 × 30.5 mm |
| Weight | 20 g |
Built For
A dedicated servo rail for airframes that demand many actuators and clean, protected power.
Fixed-Wing & VTOL
Multi-servo control surfaces
Large Multirotor
High servo-load platforms
High-Channel Airframes
Up to 12 PWM outputs
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on PowerRail 14S lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
How many servos can PowerRail 14S drive?
Up to 12 PWM channels with a high-current 5V/7.4V/8V BEC (10 A continuous, 20 A peak) straight from 4–14S (max 65 V) — and outputs 1–4 can read ESC telemetry with a BattleCore FC7.
What is PowerRail 14S compatible with?
PowerRail 14S is built to run as one system on the AAD stack — it pairs with BattleCore FC7, PowerCore EX, ServoNode x4 and CAN PMU 16S.
How does PowerRail 14S connect?
It connects via Power input — up to 14S (65V) via Microfit; 12× servo outputs (GND, VS, PWM); channels 1–4 can read ESC telemetry (with BattleCore FC7); PWM input — up to 12 signals from the FC via JST-GH 1.25 14-pin.
What's included in the box?
1× PowerRail 14S · 1× JST-GH 1.25 mm 14-pin cable · mounting standoffs.
Is PowerRail 14S NDAA-compliant and made in the USA?
Yes — PowerRail 14S is NDAA-compliant and made in the USA.
