200A Continuous on 16S
VBAT OUT delivers up to 200 A continuous (400 A peak) on 8–16S, with 8AWG terminals for the battery input.
Power & Servo

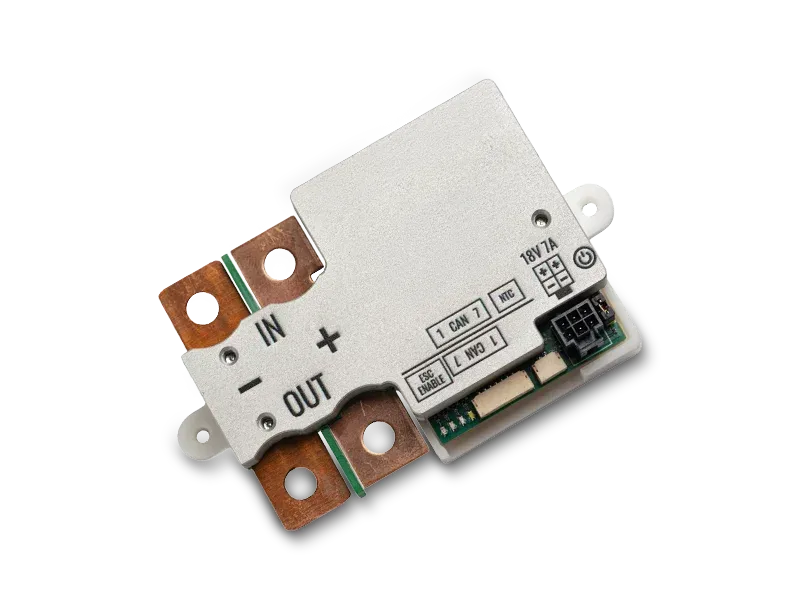

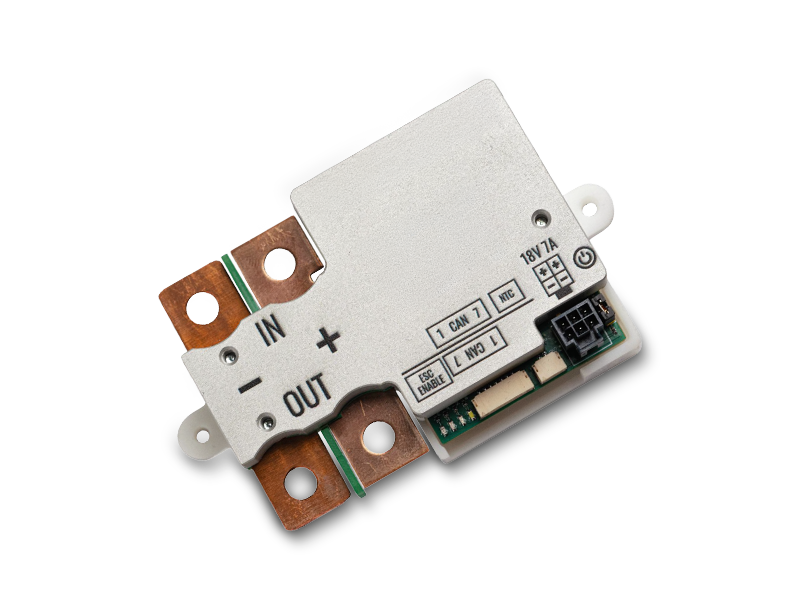

CAN PMU 16S
SKU · AAD-PMU-16S
High-current 16S power module for current measurement and power to the controller, peripherals and ESC — with full DroneCAN telemetry and ESC control over the CAN bus. Built for heavy-lift platforms drawing up to 200 A continuous.
Key Advantage
Current measurement, power for controller and peripherals, ESC control and power — all on the CAN bus, with short-circuit protection on the regulated lines.
Highlights
Core specs and the high-current features that set the CAN PMU 16S apart.
- 16S
- 200A cont.
- DroneCAN
- ESC control
- Short-circuit protected
DroneCAN Telemetry
Voltage and current measurement streamed over UAVCAN / DroneCAN — EM-noise immunity through the CAN bus.
ESC Control + Power
Dedicated PWM output with ESC telemetry pins (GND, TELEM, PWM, OFF) and VBAT power for the ESC, DSHOT or PWM.
Remote ESC OFF
Sends an OFF signal to shut down a DC-DC ESC for safe ground handling (confirm support with the ESC maker).
Full Specifications
Complete technical data, connection interfaces, and package contents for the CAN PMU 16S 200A.
| SKU | AAD-PMU-16S |
|---|---|
| Input | 8–16S (terminals for 8AWG cable) |
| Current (cont.) | 200 A |
| Peak / limit | 400 A peak |
| Regulated 24V outputs | 2× on CAN (4A) + 2× on Microfit (7A) |
| ESC output | VBAT OUT up to 200 A cont. |
| Reverse-voltage protection | Yes (brief) |
| Telemetry | UAVCAN / DroneCAN |
| Regulated-line protection | Short-circuit protection on both lines |
| Weight | 119 g |
Built For
A high-current power module for the most demanding airframes — wherever sustained 200 A draw and CAN-bus telemetry are required.
Heavy-Lift Multirotor
Multi-kg payload quad, hex & octo
Bomber-Class
Dual-payload bomber airframes
High-Power Platforms
Sustained 200 A continuous draw
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on CAN PMU 16S lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
What current and battery range does CAN PMU 16S handle?
8–16S input with 200 A continuous (400 A peak), delivering current measurement, ESC control and regulated power to the flight controller and peripherals over the CAN bus — short-circuit protected.
What is CAN PMU 16S compatible with?
CAN PMU 16S is built to run as one system on the AAD stack — it pairs with BattleCore FC7, PowerCore EX, PowerRail 14S and ServoNode x4.
How does CAN PMU 16S connect?
It connects via Battery input — 8AWG terminals; 2× CAN outputs (regulated 24V) to FC & peripherals; 2× VBAT on Microfit.
What's included in the box?
1× CAN PMU 16S 200A module. See the Knowledge Base for the full package contents diagram.
Is CAN PMU 16S NDAA-compliant and made in the USA?
Yes — CAN PMU 16S is NDAA-compliant and made in the USA.
