100A Continuous on 14S
VBAT for the ESC up to 100 A continuous, with a 160 A (5 s) burst and a 320 A measurement limit.
Power & Servo

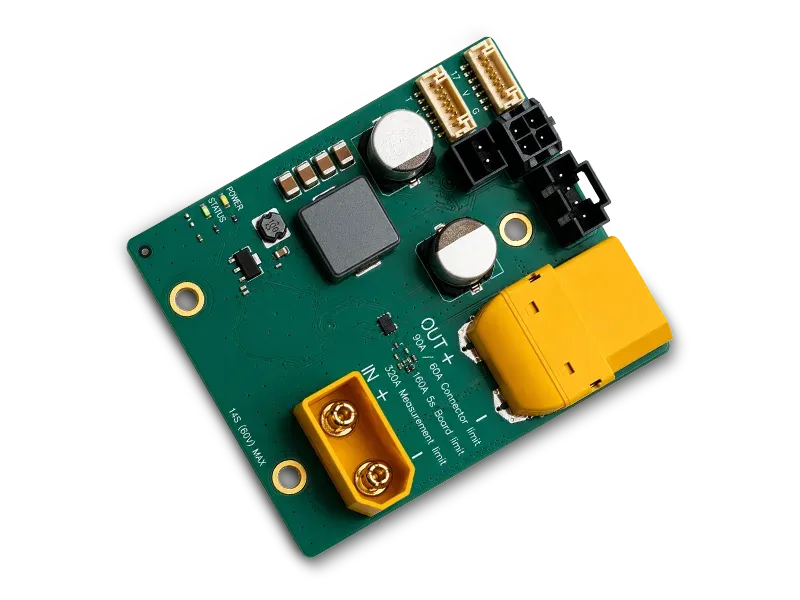

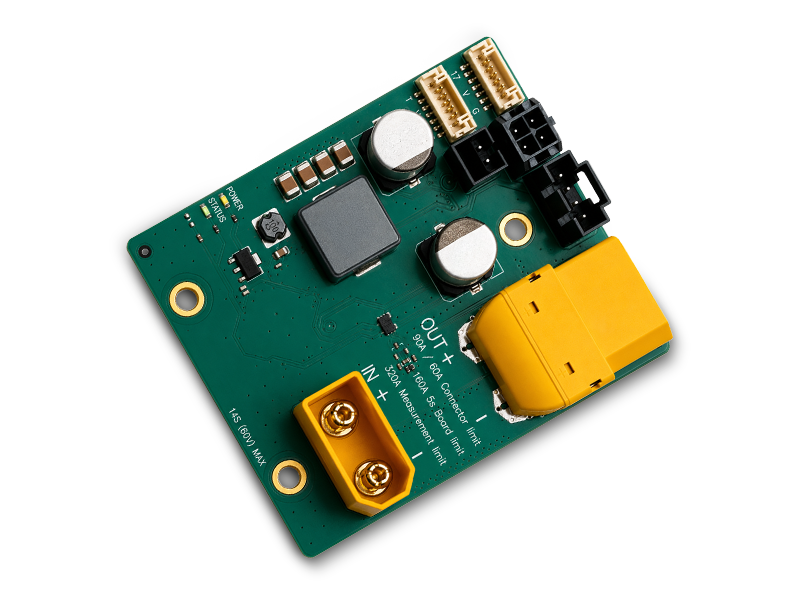

CAN PMU Lite 14S
SKU · AAD-PMU-L14S · CAN PMU Lite 14S
Lighter CAN power monitoring and ESC control for mid-size platforms. Measures battery voltage and current, powers the controller and peripherals, and drives the ESC — all over the DroneCAN bus, with short-circuit protection on the regulated lines.
Key Advantage
Current measurement, power for controller and peripherals, ESC control and power — all on the CAN bus, with short-circuit protection on the regulated lines.
Highlights
Core specs and the field-proven features that define the CAN PMU Lite 14S.
- 14S
- 100A cont.
- DroneCAN
- ESC control
- Short-circuit protected
CAN Telemetry
UAVCAN / DroneCAN voltage and current telemetry with EM-noise immunity over the CAN bus.
ESC Control & Power
A separate PWM output with ESC telemetry (GND, TELEM, PWM, OFF), selectable DSHOT or PWM, plus VBAT power.
Remote ESC OFF
Sends an OFF signal to disable a DC-DC ESC (confirm support with the ESC maker).
Full Specifications
Complete technical data, connection interfaces, and package contents (CAN PMU Lite 14S).
| SKU | AAD-PMU-L14S |
|---|---|
| Input | 8–14S |
| Current (cont.) | 100 A |
| Peak / limit | 160 A (5 s) · 320 A measurement limit |
| Regulated 24V outputs | 2× on CAN (4A) + 2× VBAT Microfit (7A) |
| ESC output | VBAT for ESC up to 100A cont. |
| ESC control | PWM with telemetry (GND, TELEM, PWM, OFF) · DSHOT or PWM |
| Bus | UAVCAN / DroneCAN |
| Energy monitoring | Real-time consumption & state-of-charge with low-battery warning |
Built For
Lighter CAN power and ESC control sized for mid-size platforms.
Mid-Size Multirotor
Quad & hex platforms
FPV
Agile strike & interceptor builds
Fixed-Wing UAV
Endurance & ISR airframes
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on CAN PMU Lite 14S lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
How does CAN PMU Lite 14S compare to the 16S?
It's the lighter mid-class version: 8–14S input with 100 A continuous (160 A for 5 s, 320 A measurement limit), with the same CAN-bus power, monitoring and ESC control.
What is CAN PMU Lite 14S compatible with?
CAN PMU Lite 14S is built to run as one system on the AAD stack — it pairs with BattleCore FC7, PowerCore EX, PowerRail 14S and ServoNode x4.
How does CAN PMU Lite 14S connect?
It connects via Battery input — Microfit; 2× CAN outputs (regulated 24V) to FC and peripherals; 2× VBAT on Microfit.
What's included in the box?
CAN PMU Lite 14S module with connection cabling — see the Knowledge Base for the full package list.
Is CAN PMU Lite 14S NDAA-compliant and made in the USA?
Yes — CAN PMU Lite 14S is NDAA-compliant and made in the USA.
