Airspeed to 550 km/h
Measures dynamic pressure across the full UAV envelope — accurate readings from loiter speed up to 550 km/h.
Sensors

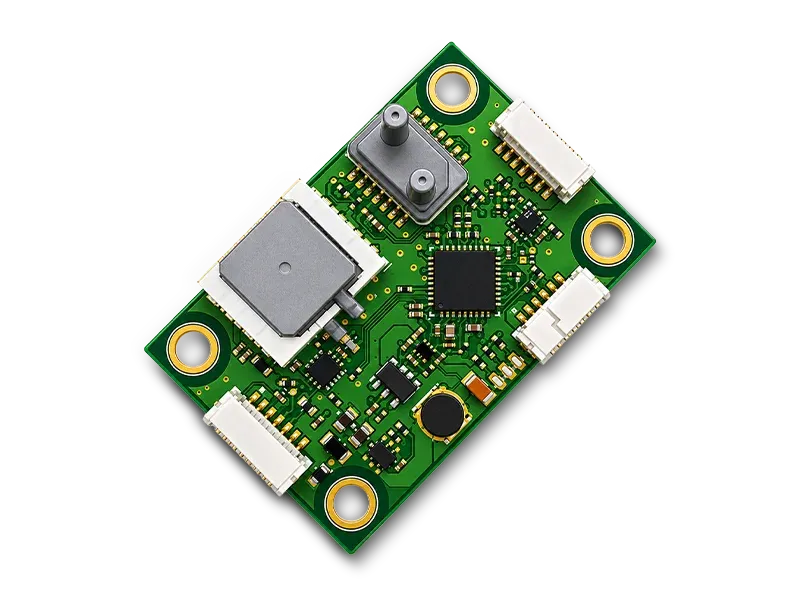

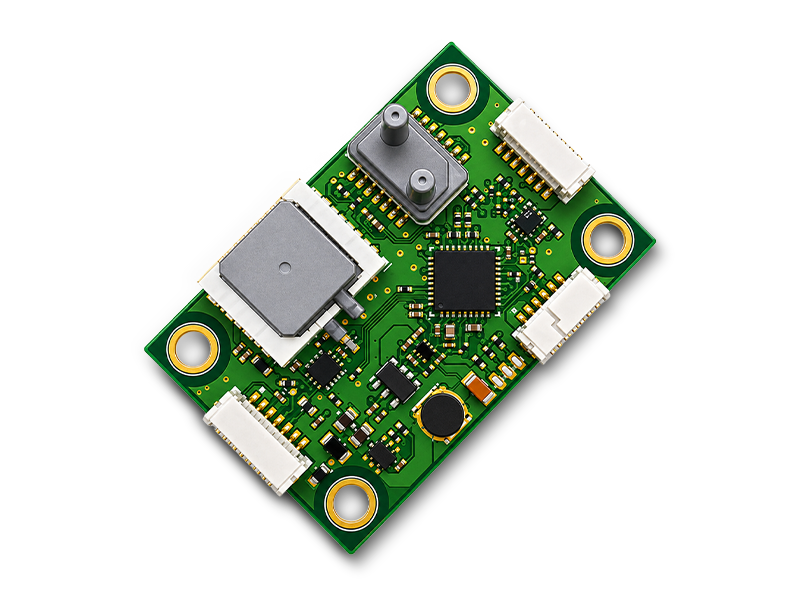

WindCore CAN
SKU · AAD-WINDCORE-CAN · CAN Airspeed module
A digital CAN airspeed sensor for fixed-wing and VTOL UAVs — immune to electromagnetic noise from the power system. It feeds the autopilot clean airspeed data to prevent critical stalls and hold flight efficiency, where analog sensors are swamped by noise.
Key Advantage
A digital CAN interface immune to electromagnetic noise from UAV power systems — reliable airspeed data where analog sensors are swamped by noise.
Highlights
Core specs and the features that set WindCore CAN apart on the airframe.
- up to 550 km/h
- MS5525 · DLVR
- DroneCAN
- 5V or 9–34V
- Heated
MS5525 / DLVR Options
Two sensor variants — MS5525 or DLVR-L10/L60 — to match the airframe's speed range and pressure resolution.
DroneCAN Digital Link
Pure digital CAN telemetry to the autopilot — no analog ADC line to pick up motor and power-system noise.
Heated Pitot
Integrated heating module clears icing and condensation, keeping the pitot accurate in cold, humid air.
Full Specifications
Complete technical data, connection interfaces, and package contents.
| Max speed | up to 550 km/h |
|---|---|
| Pressure sensors | MS5525, DLVR-L10, DLVR-L60 |
| Protocol | DroneCAN |
| Power | 5V or via VBAT 9–34V (stable 5V generated on the module) |
| Connector | Redundant power — JST-GH 1.25 7-pin (dual power), so the sensor stays powered on partial bus failure |
| SKUs | 2 sensor variants |
| Firmware | ArduPilot |
| Includes | Pitot tube, heating module |
Built For
Airframes where reliable airspeed is mission-critical — from high-speed strike to long-endurance recon.
Fixed-Wing UAV
Stall protection & cruise efficiency
VTOL & Transition
Safe hover-to-cruise handoff
High-Speed ISR
Accurate airspeed to 550 km/h
Technical Documentation
Want the Full Picture?
Wiring diagrams, CAN and CSI pinouts, power rails, expansion options, and step-by-step setup — everything on WindCore CAN lives in our Knowledge Base.
Learn More in Our Knowledge Base →Compatible Products
Built to work as one system on the AAD CAN-bus stack.
Frequently Asked Questions
What airspeed range does WindCore CAN measure?
Up to 550 km/h using MS5525 / DLVR-L10 / DLVR-L60 pressure sensors, over a DroneCAN interface immune to UAV power-system noise, with an included heating module for the pitot tube.
What is WindCore CAN compatible with?
WindCore CAN is built to run as one system on the AAD stack — it pairs with BattleCore FC7, NavCore DualBand, SensCore and PowerRail 14S.
How does WindCore CAN connect?
It connects via 2× CAN connectors (CAN_H, CAN_L, VBAT, 5V, GND); Daisy-chain onto the shared CAN bus; Redundant dual-power feed.
What's included in the box?
1× WindCore CAN module · 1× pitot tube · 1× heating module · CAN cabling.
Is WindCore CAN NDAA-compliant and made in the USA?
Yes — WindCore CAN is NDAA-compliant and made in the USA.
